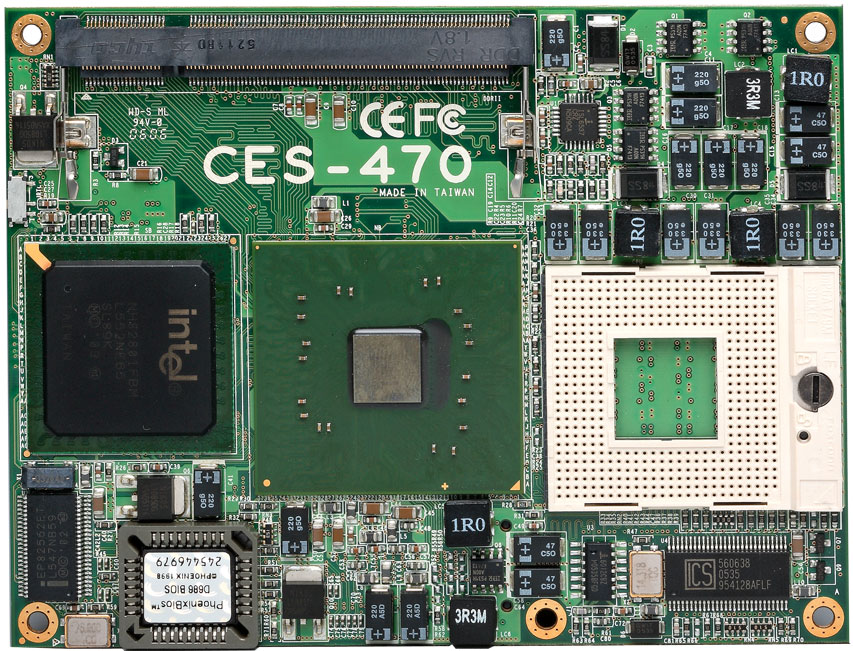

CES-470 - COM-Express CPU Module




- Features

- Specifications

- Ordering information

- Datasheet (PDF)

- Check it enlarge

- Technical Document

  • Support Intel Pentium M / Celeron M

  • 1 x DDR2 SO-DIMM support up to 1.0 GB .

  • Intel 915GME & ICH6M Chipset.

  • Intel 915GME built-in VGA , LVDS



COM Express Basic ( 95 x 125 mm) , Type 2 connector layout


CPU  Type

Support  Intel Pentium M / Celeron M processor @ FSB 400/533 MHz .

( Intel Celeron M 4xx series can't support )



Intel 915GME & ICH6M .


Memory Type

1 x DDR2 SO-DIMM support up to 1.0 GB .


VGA Interface

Intel 915GME Integrated GMA900 Technology.


LVDS Interface

18-bit Dual channel LVDS interface .


Enhanced IDE

One UltraATA/100 IDE up to 2 ATAPI .


Series ATA

Integrated Series ATA controller facilities high-speed data transfer

up to 150MB/s for each of 2 ports .


LAN Interface

10/100Mbps Ethernet port provide by Intel 82562ET PHY .



Intel ICH6M built -in  AC97 Rev2.3 or Azalia support up to 3codecs



Intel ICH6M contains an EHCI and four UHCI controller support 8 x Hi-Speed USB2.0 ports .


PCI-Express Interface

1 x PCI-Express x16 interface

4 x PCI-Express x1 interface


PCI Interface

Support 4 x external PCI bus interface .


LPC Interface

LPC 1.1 support up to 2 x LPC devices .


 Ordering information
CES- 470       Socket 479-pin COM Express CPU Module with Intel 915GME Chipset
