DSP-L138
TI OMAP-L138 C6000+ARM Processor
TI OMAP-L138 Dual-Core Soc, 128 MB DDR2 SDRAM, 8GB SPI Flash.1 x SATA2, 1 x RS232,
 1 x USB2.0 OTG, 1 x USB1.1 OHCI, 1 x SDMEM/SDIO, 1 x 10Base-T/100Base-TX


view larger image



-


Overview
-
Feature
-
Specification
-

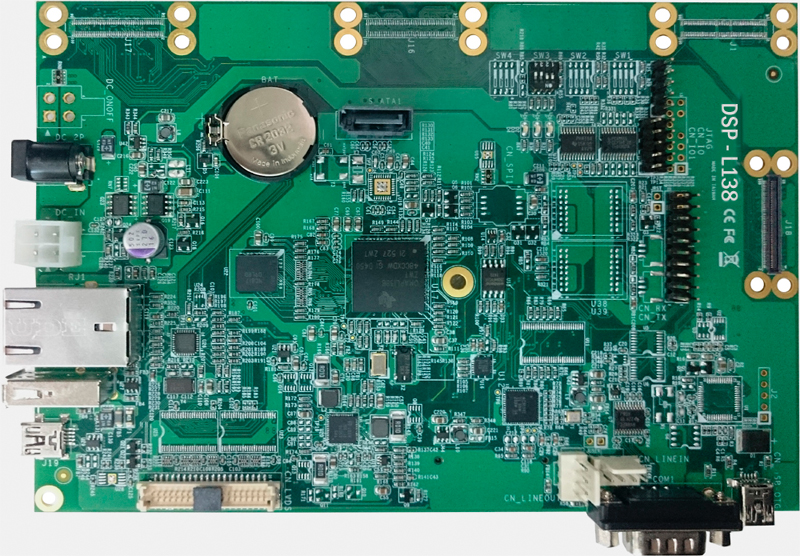

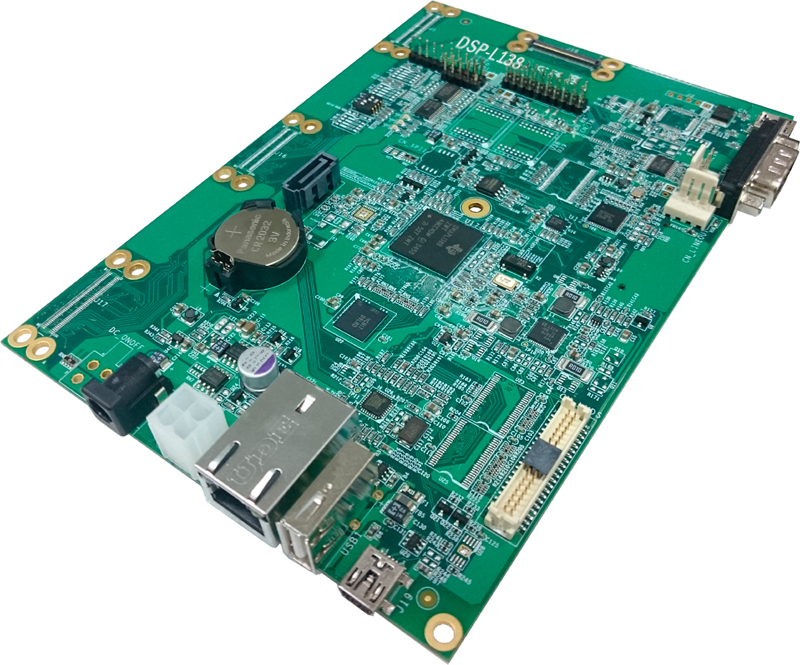

Product Image
-
Ordering Information
-
Datasheet (PDF format)
- Manual (PDF format)
-

Technical Document
  Overview

Commell DSP-L138 is based on TI OMAP-L138 C6-Integra DSP+ARM Processor and has the following feature:

  • TI OMAP-L138 processor with dual core ARM926EJ-S and C6748 VLIW DSP running at 456 MHz

  • Support 128 MB Mobile DDR, Serial ATA (SATA), TFT LCD port, 10/100 Mb/s Ethernet MAC (EMAC), USB 1.1 OHCI and USB 2.0 OTG with integrated PHY,one RS232.

  • One TI TLV320AIC3106 Stereo CODEC controller with one Line In  port and one Line Out port.

  • Expansion ports for most features singal:

          One 8 GB SPI flash and one SD slot.

          Ready for U-Boot, TI Linux DVSDK, TI CCS, TI CCS, TI DSP/BIOS and SYS/BIOS.

  • Ready for Windows Embedded CE SDK.

  • Is designed to meet PA (Public address) system of MRT and railway.

BackToTop

  Key Feature



  • Processor:  TI OMAP-L138 Dual-Core SoC:

          1x ARM926EJ-S RISC MPU and 1x C674x Fixed and Floating-Point WLIW DSP

  • Memory:  128MB DDR2 SDRAM

  • Integrated: TLV320AIC3106 Stereo Audio CODEC, XDS100 emulation and LCD Control support

  • LCD Control: Maximum resolution is 1024 x 1024 pixels

  • Display: Default to 800 x 600 TFT LCD display panel

  • Touch: 4-wire resistive 800 x 600 touch screen

  • LAN:  EMAC provides 10Base-T and 100Base-TX

  • Serial ATA:  Support both SATA I and SATA II

  • Flash Support: 1 x 8GB SPI flash chip (onboard), 1 x MMC/SD card slot

  • Audio:  TI TLV320AIC3106 Stereo Audio CODEC

  • Internal I/O:  1 x SATA2, 1 x TFT/STN, 1 x Line in, 1 x Line out

  • External I/O:  1 x RS232, 1 x USB2.0 OTG, 1 x USB1.1 OHCI, 1 x MMC/SD, 1 x RJ45,1 x DC connector

  • Debug I/O:  XDS100 emulation (via USB interface)

  • Software Support (TI DVSDK) :  Linux 2.6.37 for ARM, TI DSP/BIOS

  • Power requirement :   DC Input 5V

BackToTop

  Specification


Form Factor

Processor

TI OMAP-L138 Dual-Core SoC:

1x ARM926EJ-S RISC MPU and 1x C674x Fixed and

Floating-Point WLIW DSP

Memory

 128MB DDR2 SDRAM

Integrated

TLV320AIC3106 Stereo Audio CODEC, XDS100 emulation and LCD Control support

Real Time Clock

Integrated RTC with onboard lithium battery

Serial ATA

Support both SATA I and SATA II

 Flash Support  1 x 8GB SPI flash chip (onboard), 1 x MMC/SD card slot

LCD Control

Maximum resolution is 1024 x 1024 pixels

 Display  Default to 800 x 600 TFT LCD display panel

Touch

4-wire resistive 800 x 600 touch screen

Audio


TI TLV320AIC3106 Stereo Audio CODEC

LAN

EMAC provides 10Base-T and 100Base-TX

Internal I/O

1 x SATA2, 1 x TFT/STN, 1 x Line in, 1 x Line out

 External I/O

1 x RS232, 1 x USB2.0 OTG, 1 x USB1.1 OHCI, 1 x MMC/SD, 1 x RJ45, 1 x DC connector















Debug I/O

XDS100 emulation (via USB interface)

Software Support    (TI DVSDK)  Linux 2.6.37 for ARM, TI DSP/BIOS

Power Requirement

DC Input 5V

 Size & Thickness  170.8 mm x 116.8 mm (L x W)

Temperature

Operating within 0°C~60°C (32°F~140°F)

Storage within -20°C~80°C (-4°F~176°F)

Relative Humidity

  10%~90%, non-condensing



Download Datasheet @ PDF format

BackToTop

  Ordering Information
Standard DSP-L138 base board:1x 8GB SD card with TI DVSDK image and stereo audio cables
Ordering code DSP-L138 : DSP-L138 board with stereo audio cables
SPD-030-5 (Option): A 5V AC/DC adapter
D13-080SUTB00A0-S V1.0 (option): A 800x600 panel and touch screen
OALLCD-T18C-C01 (option): LCD Cable for D13-080SUTB00A0-S
