CMB-170


Barebone system support  Intel® Atom Dual Core processor

-

Features

- Product Image
- Ordering Guide
- Manual
- Datasheet

Features

dh
Form Factor  Bare-bone system for Pico-ITX motherboard
Construction  Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LP-170C

 Onboard CPU : Intel® Atom™ D525 dual-core processor

Drive Bay  Internal  : 1 x 2.5" HDD Space , 1 x CF card socket
Extensive slot

 1 x Mini-PCIe socket for wifi card

Thermal Control  One 5 cm system cooling Fan

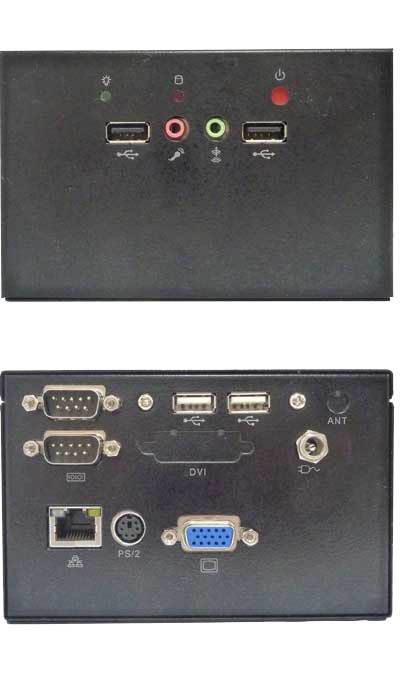

Front Panel

 Power on switch

 LED indicator for Power and HDD activity

 Mic-in / Ear phone , 2 x USB

Rear Side I/O

 2 x COM , 2 x USB , 1 x LAN , 1 x VGA , 1 x PS/2 Key/Mouse

 1 x DC input , 1 x antenna , 1 x DVI ( Optional )

Environment  Operating Temperature: 0 ~ 40ºC
Power supply  12V/ 80W adapter
Dimension  125 x 90 x 80 mm

BackToTop

Ordering Guide



CMB-170C

Barebone with LP-170C motherboard , 12V/80W adapter

 ADP-L2DXT  LVDS to DVI convert module

Memory

DDR2 667 MHz SO-DIMM for 1.0GB / 2.0 GB / 4.0 GB

Storage device

2.5" SATA HDD or CompactFlash card

BackToTop
