CMB-171

Barebone system support Intel® Atom Single Core processor

Features

dh
Form Factor	Bare-bone system for Pico-ITX motherboard
Construction	Heavy-Duty steel
Mini-ITX Board / CPU	Inside Motherboard : LP-171QT Onboard CPU : Intel® Atom™ Z510P single-core processor
Drive Bay	Internal :1 x CF card socket
Extensive slot	1 x Mini-PCIe socket for wifi card
Thermal Control	One 5 cm system cooling Fan

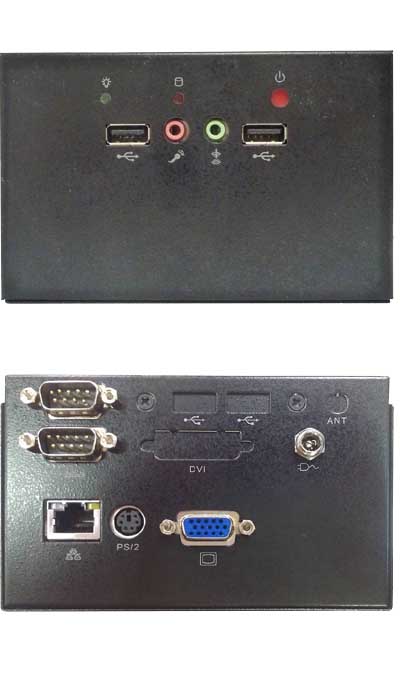

Front Panel	Power on switch LED indicator for Power and HDD activity Mic-in / Ear phone , 2 x USB
Rear Side I/O	2 x COM , 2 x USB , 1 x LAN , 1 x VGA , 1 x PS/2 Key/Mouse 1 x DC input , 1 x antenna .
Environment	Operating Temperature: 0 ~ 40ºC
Power supply	12V/ 80W adapter
Dimension	125 x 90 x 80 mm

Ordering Guide

CMB-171QT	Barebone with LP-171QT motherboard , 12V/80W adapter
Memory	DDR2 667 MHz SO-DIMM for 1.0GB / 2.0 GB
Storage device	CompactFlash card
