CMB-565
Barebone
with VIA Eden 1.0 GHz , onboard 256 MB Memory and 4 x LAN
|
|
Overview
|
|
COMMELL's
CMB-565 is a compact 5.25" drive-size embedded
multiple Ethernet platform based on VIA Eden V4 1.0 GHz low power
CPU, and offers the Realtek PRO/1000 GbE and four Ethernet
interfaces for industrial multiple Ethernet application,
such as firewall, VPN and all-in-one server solution.
The CMB-565's compact size, fan free operating, bootable
CompactFlash
socket also provide the suitable hardware solution for
the small business / SOHO firewall / VPN market and
all-in-one internet server application.
|
|
BackToTop |
|
Features
|
dh
| Form Factor |
5.25"
Barebone |
| Construction |
Heavy-duty
Steel |
| 5.25" SBC |
Inside
Motherboard can be :
LE-565-P
: Onboard VIA Eden 1.0 GHz
LE-565-256
: Onboard VIA Eden 1.0 GHz and 256 MB memory
|
| Drive Bay |
Internal
1 x CompactFalsh Card and 1 x 2.5" HDD Space |
| Riser card |
No |
| Thermal Control |
1 x System
Fan |
| Front Panel |
Power
On/Off , reset and HDD activity LED
|

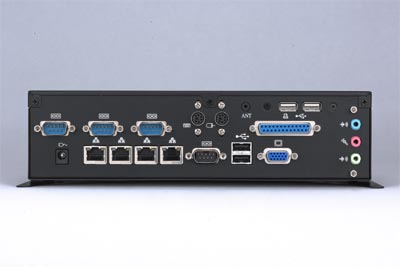

| Rear Side I/O |
4
x RJ45 LAN , 1 x DC input , 4 x COM , 4 x USB , 1 x VGA , 1
x LPT
Key/Mouse
, Line-In / Mic-In / Line-Out , 1 x Antenna .
|
| Environment |
Operating
Temperature: 0 ~ 40°C
|
| Power supply |
DC 12V input |
| Dimension |
250 x 65 x 160 mm (W x H x D) |
| Weight |
1.75 kgw
, (Without HDD ) |
|
|
BackToTop |
|
Ordering Guide
|
|
|
|
CMB-565-P
|
Barebone
with LE-565-P and SPD-080-12 12V/80W adapter
|
|
CMB-565-256
|
Barebone
with LE-565-256 and SPD-080-12 12V/80W adapter
|
|
