Form Factor

5.25" Barebone

Construction

Heavy-duty Steel

5.25" SBC

Inside Motherboard can be :

LS-573TXD : Support Intel® Core™ 2 Duo mobile in Socket P

LS-573BIR : Specially designed for POS applications

Drive Bay

1 x 2.5" HDD Space

Riser card

No

Thermal Control

1 x System Fan

Front Panel

Power On/Off , reset and HDD activity LED

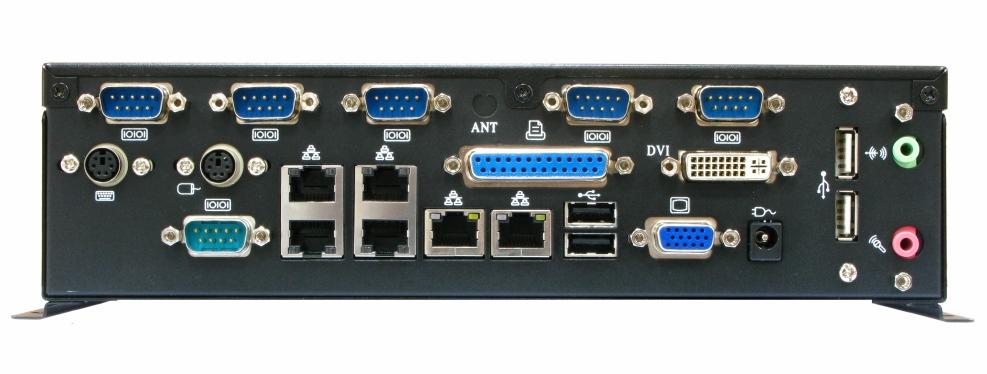

CMB-573

Rear Side I/O

6 x RJ45 LAN, 1 x DC input, 4 x USB, 1 x VGA, 1 x LPT

1 x Key/Mouse, Line-In / Mic-In / Line-Out, 1 x Antenna, 1 x DVI

6 x COM

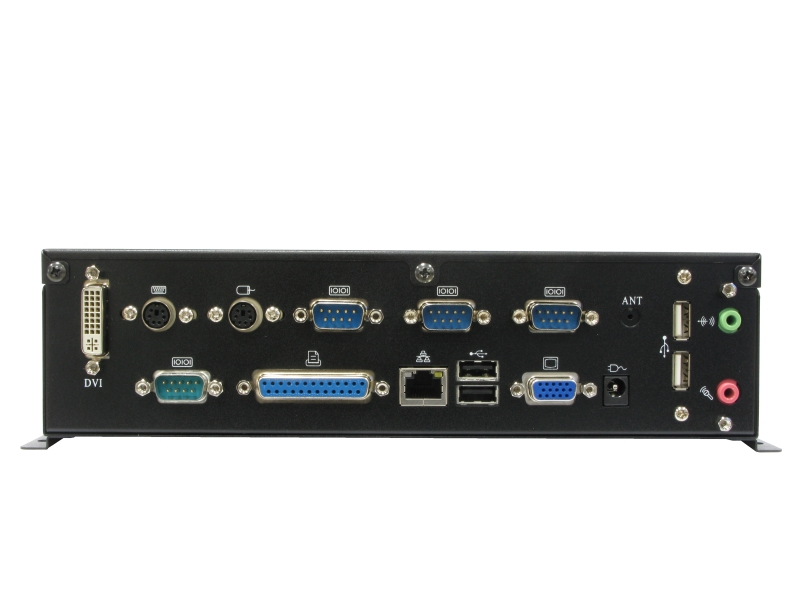

CMB-573BIR

Rear Side I/O

1 x RJ45 LAN, 1 x DC input, 4 x USB, 1 x VGA, 1 x LPT

1 x Key/Mouse, Line-In / Mic-In / Line-Out, 1 x Antenna, 1 x DVI

4 x COM (COM1, COM2 support 5V/12V, jumper setting)

Environment

Operating Temperature: 0 ~ 40°C

Power supply

DC 12V input

Dimension

250 x 65 x 160 mm (W x H x D)

Weight

Approx. 1.75 kg (Without HDD)
