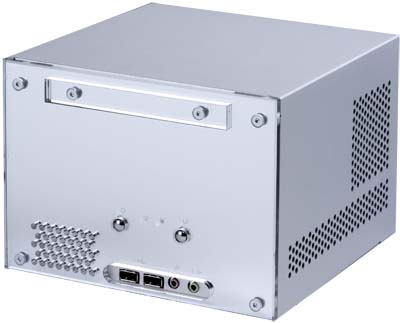

CMB-673
Mini-ITX Chassis with
1 PCI-Express slots & 120W adapter .
|
Overview
|
COMMELL's
CMB-673 is a Mini-server / terminal
platform .the CMB-673 provides the
high reliability solution with high performance and
integration. With
these features, CMB-673 should be the advanced solution
for you in :
-
Industrial
Embedded Applied Mini-Server, Transaction Station, POS/POI,
KIOSK, ATM, Web Payphone and Terminal Platform
-
3D
Video Game Machine, STB (Set-Top-Box),
Multi-Media Station and Terminal, Book-size PC, Thin
Client, Internet Computer, WebPAD,
-
Industrial
Panel PC, Portable Workstation, Panel-mount /
Wall-mount / Ceil-mount Workstation
|
BackToTop |
Features
|
dh
Form Factor |
Mini-ITX
barebone system |
Construction |
Heavy-Duty
steel |
Mini-ITX Board |
Inside Motherboard
can be :
LV-673:
Intel Pentium M / Celeron M
LV-673NS
:
Intel Pentium M / Celeron M
|
Drive Bay |
External 1 x
Slim CD-ROM Space
Internal
2 x 3.5" HDD Space |
Riser card |
No |
Thermal Control |
One 6cm
system cooling |
Front Panel |
System Reset
switch
Power
On/Off and HDD activity
2
x USB ports
Min-in
/ Line-out
|
Rear Side I/O |
PS/2
Keyboard and mouse, VGA, 4 x USB, 4 x RS232
2
x Gigabit LAN, 1 x PCMCIA & CF socket, S/PDIF
HDTV/SDTV,
7.1ch Audio, IEEE1394(Optional MP-323) , PCI-Express 16x/1x
|
Environment |
Operating
Temperature: 0 ~ 50C
|
Power supply |
120W adapter |
Dimension |
192 x 212 x
150 mm |
Weight |
3.85 kgw
, (Without HDD, CD-ROM) |
|
BackToTop |
Ordering Guide
|
|
CMB-673(NS)
|
Motherboard
, Chassis , 120W adapter , CPU cooler
|
