CMB-678/677/674/672

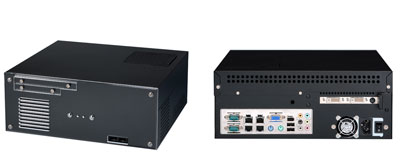

Mini-ITX Chassis with 1 PCI-Express slot & 300W ATX PSU .

-

Overview

-

Features

- Product Image
- Ordering Guide
- Datasheet
  - User's Manual     Setup Manual

Overview



Mini-ITX barebone system which support Intel Core 2 Quad / Core 2 Duo / Pentium D /Pentium 4 / Celeron D processor , Such as COMMELL's LV-678 ,  LV-677 , LV-674 & LV-672 Mini-ITX MB.

BackToTop

Features

dh
Form Factor  Mini-ITX barebone system
Construction  Heavy-Duty steel
Mini-ITX Board  Inside Motherboatd can be :

 LV-678 : Intel Core 2 Quad / Core 2 Duo

 LV-674 : Intel Core 2 Duo / Pentium D / Celeron D

 LV-672 : Intel Pentium 4 / Celeron D

 LV-677E : Intel Core 2 Duo / Core Duo / Core Solo

Drive Bay  External 1 x Slim CD-ROM & 1 x Slim FDD Space

 Internal  2 x 3.5" HDD Space

Riser card  1 x PCI-Express riser card
Thermal Control  One 12 cm system cooling Fan
Front Panel  System Reset switch

 Power On/Off and HDD activity

 2 x USB ports

Rear Side I/O  Depend on Mini-ITX I/O plate .
Environment  Operating Temperature: 0 ~ 40C
Power supply  300W ATX power supply
Dimension  305 x 284 x 119 mm
Weight  5.65 kgw , (With Case , Motherboard , power supply)

BackToTop

Ordering Guide


   CMB-678 LV-678   Motherboard , Chassis , 300W ATX power supply , PCIE riser card

CMB-677E

LV-677E Motherboard , Chassis , 300W ATX power supply , PCIE riser card

CMB-674

LV-674   Motherboard , Chassis , 300W ATX power supply , PCIE riser card

CMB-672

LV-672   Motherboard , Chassis , 300W ATX power supply , PCIE riser card

BackToTop
