.GIF) Fanless
Mini barebone system support Intel®
6th
Core™ i7/ i5/i3 Mobile
processor
|
|
Overview
|
|

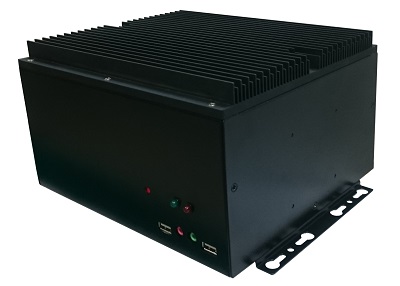

COMMELL's CMB-B72 is a
high-performance Fanless barebone systems which based on
Intel® 6th
generation "Skylake-H" Core™ i7/i5/i3 processor , with
three expansion slots, is designed to meet the expansion capability(provides three
expansion slots with two different combinations of PCI and PCIe
slots: a. two PCI and one PCIe x16; b. one PCI, one PCIe x1 and one
PCIe x16.), high performance, high-end media, broad I/O and fanless for
a flexibility and wide variety of transportation, military,
industrial, medical and telecommunication applications and more. |
|
BackToTop |
|
Features
|
dh
|
System |
|
Processor |
Intel® Skylake Core™ i7/
i5/ i3 H-series Processor FCBGA1440
package |
|
Chipset |
Intel® QM170 |
|
Memory |
2 x DDR4 SO-DIMM 2133 MHz
up to 32GB, Support Non-ECC,
unbuffered memory only |
|
Watchdog Timer |
Generates a system reset
with internal timer for 1 min/s ~ 255 min/s |
|
Real Time Clock |
Chipset integrated RTC with
onboard lithium battery
|
|
Expansion |
1
x MiniPCIe (support mSATA)
1 x Half Size MiniPCIe
2
x 2.5 inch SATA3
HDD/SSD Bays
|
1
x PCIe X16 slot, 2 x PCI slot
or
1 x
PCIe X16 slot, 1 x PCIe X1 slot, 1 x PCI slot
|
|
|
Graphics |
|
Chipset |
Intel® 9th Gen integrated
HD Graphics |
|
Display Interface |
1
x DisplayPort,
1 x DVI-D, 1 x VGA |
|
LAN |
|
Chip |
1 x Intel® I210-AT Gigabit LAN
1 x Intel® I219-LM Gigabit
LAN (Support iAMT11) |
|
I/O |
|
Front Panel |
2 x USB2.0, 1 x Mic-in, 1 x
Line-out
1 x HDD LED, 1 x Power
LED, 1 x Power Button |
|
Rear Panel |
1 x DisplayPort, 2 x LAN,
1 x PS/2, 1 x DVI-D, 1 x VGA , 3 x
RS232,
1 x RS232/422/485, 2 x
USB3.0, 1 x DC input |
|
Mechanical & Environmental |
|
Power Requirement |
DC Input 9~30V ,120W |
|
Construction |
Heat sink (Aluminum)
Chassis (Iron) |
|
Mounting |
Desk/Wall mounting |
|
Dimension
|
230mm x 200mm x 130mm (L x W x H) |
|
Weight |
4 kg |
|
Temperature |
Operating within 0°C~40°C
(32°F~104°F)
Storage within -20°C~80°C
(-4°F~176°F) |
|
Relative Humidity |
0%~90% @ 40°, non-condensing
|
|
|
BackToTop |
|
Ordering Guide
|
|
Ordering code |
CMB-B72P7:
i7-6820EQ
Processor with "1 x PCIe X16, 2 x PCI"
CMB-B72P5:
Same as CMB-B72P7 with i5-6440EQ Porcessor
CMB-B72P3:
Same as CMB-B72P7 with i3-6100E Processor
CMB-B72X7:
i7-6820EQ Processor with "1 x PCIe X16, 1 x PCIe X1, 1 x PCI"
CMB-B72X5:
Same as CMB-B72X7 with i5-6440EQ Processor
CMB-B72X3:
Same as CMB-B72X7 with i3-6100E Processor
|
|
SDM4GB-DDR4-2133-SO-1.2V:
DDR4 4GB SO-DIMM
DSDM8GB-DDR4-2133-SO-1.2V:
DDR4 8GB SO-DIMM
DSDM16GB-DDR4-2133-SO-1.2V:
DDR4 16GB SO-DIMM
|
|
OALUSB3: USB3.0 dual port
cable with bracket
OALUSB27S:
USB2.0 dual port cable with bracket
|
|
|
