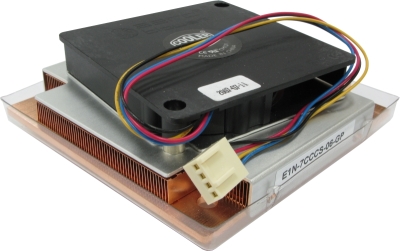

Application
System |
1U Form Factor Active
Solution |
CPU
Type |
Intel Pentium 4 (Prescott, Cedar Mill) |
Intel Pentium D
(Smithfield, Presler) |
Intel Core 2 Duo
(Conroe) |
Intel Core 2 Quad
(Kentsfield) |
Supported
CPU Frequency |
2.8 ~ 3.4 GHz up for Pentium 4; FSB 800 MHz up |
2.8 ~ 3.4 GHz up
for Pentium D; FSB 800 MHz up |
1 .8 ~ 2.66 GHz up
for Core 2 Duo; FSB 800 MHz up |
2.4 GHz up for Core
2 Quad; FSB 1066 MHz up |
Socket Type |
LGA 775 |
Heat Sink |
Copper Base + Copper Stacked Fin |
Cooler Dimension |
93 x 93 x 27.5 mm |
Fastener |
Screw + Spring |
Interface Material |
Shin Etsu 7783 |
Fan Dimension |
70 x 70 x 13 mm |
Fan Speed |
5,500 rpm |
Fan Airflow |
8.9 CFM |
Fan Bearing Type |
Dual Ball Bearing |
Voltage Rating |
12 V |
Noise Level |
40 dBA |
Connector |
4 Pins with PWM function |
Thermal
Resistance |
For Prescott: 0.45 °C/W |
For Cedar Mill:
0.45 °C/W |
For Smithfield:
0.30 °C/W |
For
Presler: 0.30 °C/W |
