M2-2213
M.2(NGFF) supports IEEE1394A & 1394B


-2230 M.2 Card dimension
-M.2 Key A-E PCIe interface
-Fully Compliant With PCI Express Base Specification,
Revision 1.1
-Supports Provisions of IEEE Std P1394b- 2002 and
IEEE Std 1394-1995 for IEEE Std 1394a-2000
-Fully Compliant With 1394 Open Host States Controller
Interface (OHCI) Specification, Revision 1.1 and Revision
1.2 Draft

Specifications

Host Interface

M.2

Controller

Texas Instruments XIO2213B

M.2 key type

A-E PCIe Interface

Dimension

 22mm x 30mm x 7mm (L x W x H)

Voltage

3.3V +/-5%

Temperature

0~70C

Storage Temperature

-40~+85C

Compliance

IEEE 1394a (Firewire 400) x1

IEEE 1394b (Firewire 800) x2

Transfer Rate

100M bits/s, 200M bits/s, 400M bits/s,
and 800M bits/s (IEEE 1394b)

User Manual

Manual  ,   Datasheet

Ordering Code

M2-2213

M.2 (NGFF) card supports IEEE1394 Module.

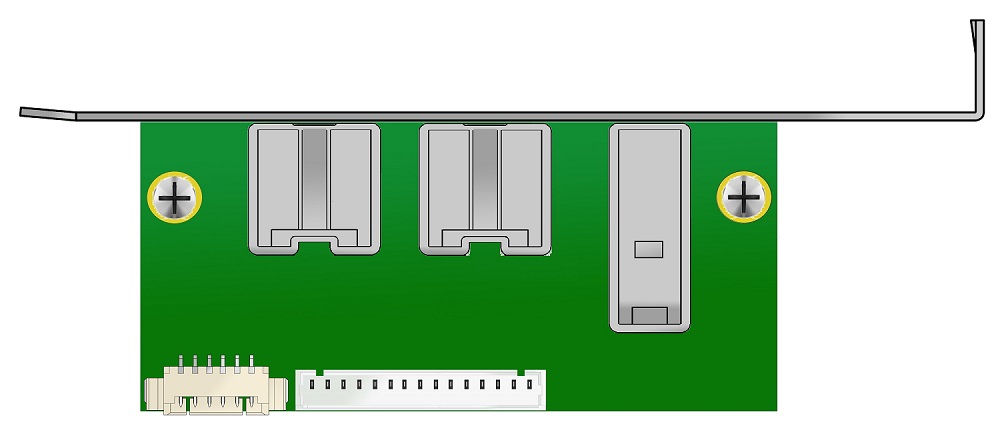

                1394 Adapter x1

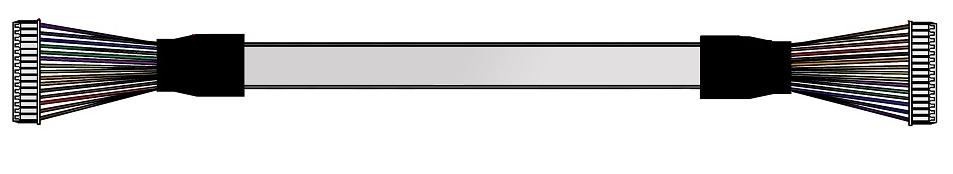

              1394 Cable x1

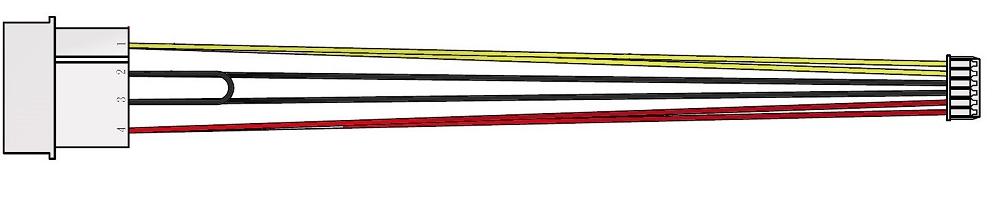

            Power Cable x1
