ADP-PSE4

PoE+ Power over Ethernet PSE module

           -Four Independent PSE Channels

           -IEEE802.3at compliant

           -Low Power Dissipation

           -PSE controller capable of delivering up to 90W

           -Supports DC input 54~57V

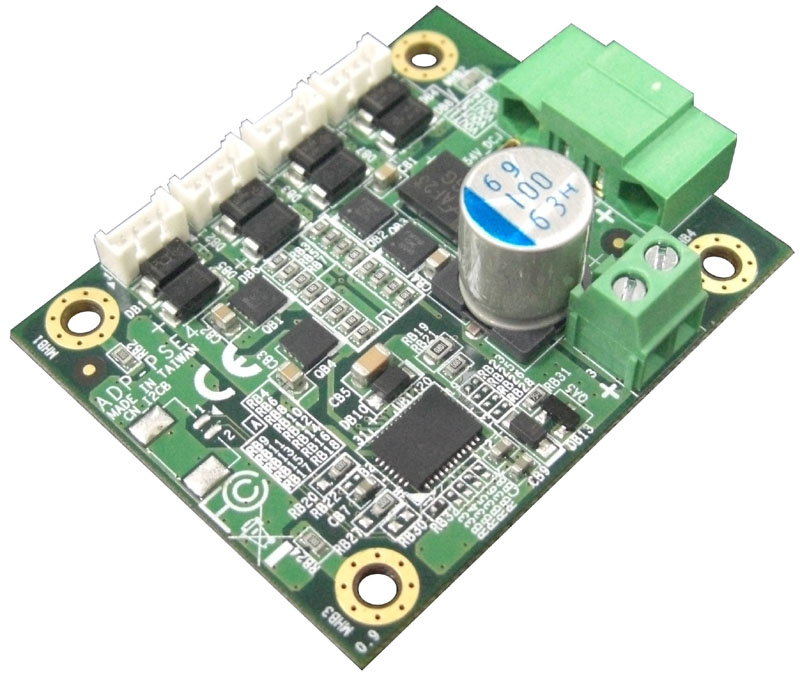

Click for larger image
 Mechanical  &  Environmental
 Interface :

 Four Internal 4-pin header for PD

 Internal 2-pin terminal block for DC

 input

 Internal 2-pin terminal block for DC

 output
 Dimensions :  49.84mm x 40.00mm (L x W)
 Power Requirement  DC 54~57V
 Temperature :  Operating within -40℃~+85℃
 Storage within -40℃~+85℃
 Document :  Manual ,Datasheet
 Ordering Code
 ADP-PSE4  Compliant IEEE802.3at support LTPoE++ 90W, with four independent PSE channels

Accessories

   Optional Cable

OALPSE-01
