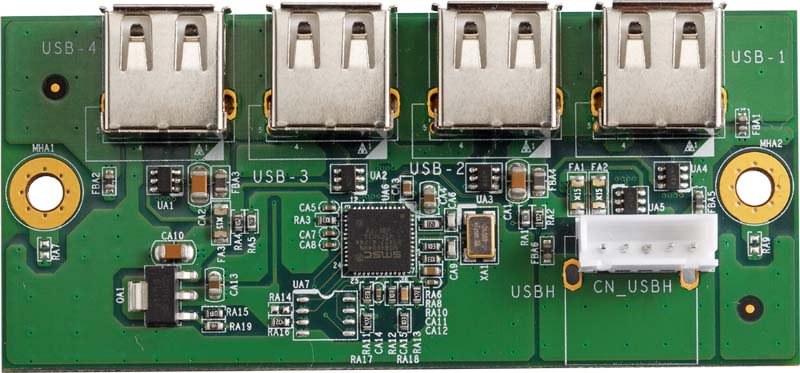

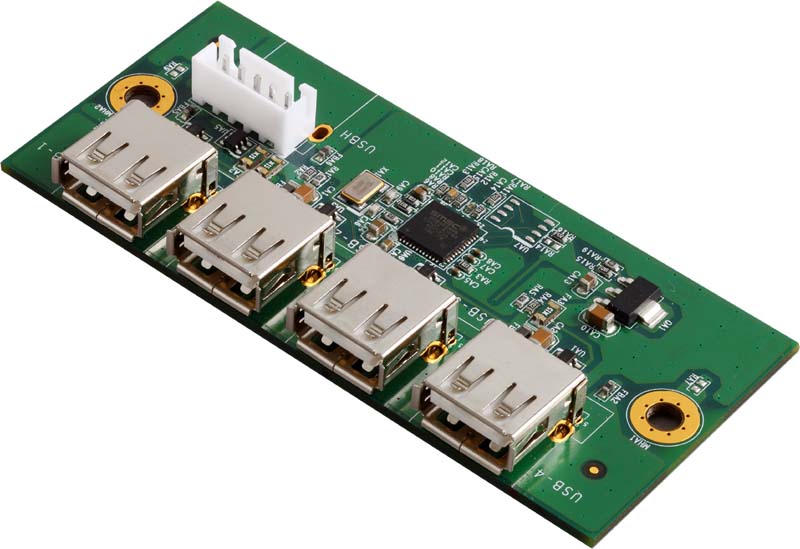

x1 upstream to x4 downstream USB2.0 Port

Click for larger image

 Mechanical  &  Environmental
 Support :

 USB2.0 Hi-Speed 4-Port Hub

 Power input :

 5V, 500mA (upstream)

 Size & Thickness :

 89.5mm x 40mm (L x W), 1.6mm

 Temperature :

 Operating within 0℃~60℃ (32℉~140℉)

 Storage within -20℃~80℃ (-4℉~176℉)

 Relative Humidity :  10%~90%, non-condensing
 Document :  Datasheet
 Ordering Code
 ADP-4604  4 x USB2.0 Port
