AS-C7A
ATX supports Skylake / Kaby Lake 6th / 7th Gen Core™ S-series  Processor and
Xeon® E3-1200 v5 / v6 Processor

Support Skylake / Kaby Lake 6th / 7th Gen Core S-series Processor and Xeon® E3-1200 v5 / v6
Processor desktop CPU with Intel® C236 chipset, DDR4 up to 64 GB, Onboard  DVI-I, DisplayPort,
HDMI, VGA, ,LVDS, 1 x Intel® Gigabit PHY LAN, 1 x Intel® Gigabit LAN, 4 x USB 2.0, 6 x USB 3.0,
5 x RS232, 1 x RS232/422/485, HD Audio, 4 x SATA3 with RAID, GPIO, 1 x LPC, 1 x PS/2, 1 x PCIE
X16, 1 x PCIE X4, 1 x PCIE X1, 4 x PCI, 2 x Mini-PCIe socket (Suport mSATA).

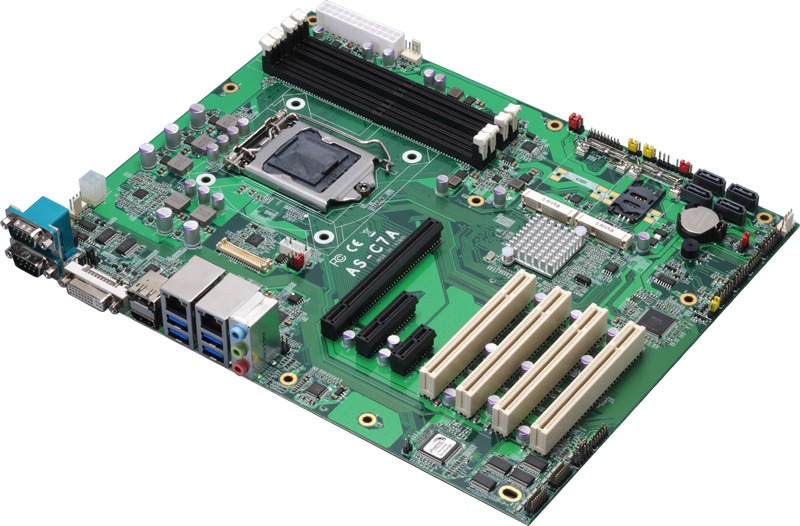

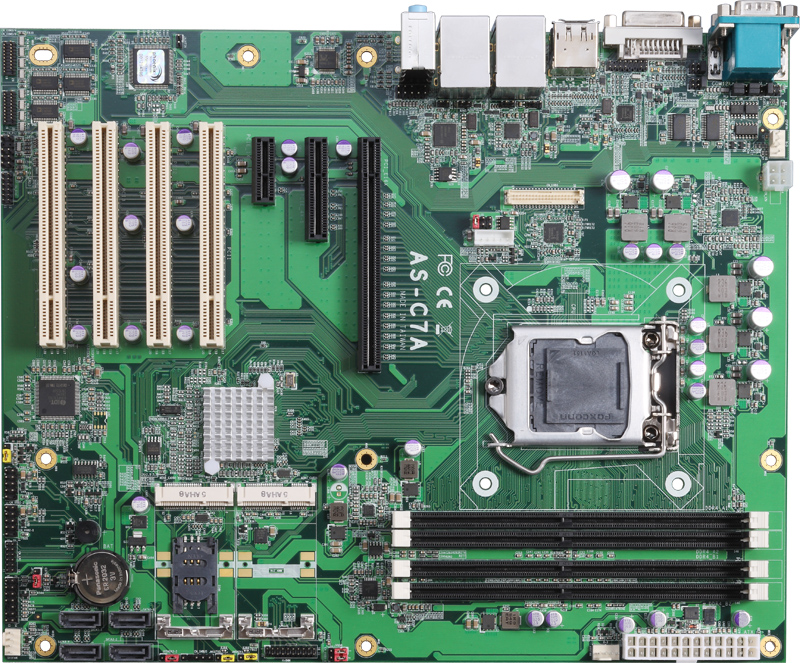

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet(PDF format)
-
Technical Document
  Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled AS-C7A ATX Industrial Motherboard embedded system board based on Skylake / Kaby Lake
Intel® 6th / 7th Gen Core™ Processor and Xeon® E3-1200 v5 / v6 Processor family.

The AS-C7A desktop platform is designed for Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ Processor
and Xeon® E3-1200 v5 / v6 Processor in the FCLGA1151 socket. It is the first mainstream Intel® desktop
platform to support DDR4 memory (Four DDR4 LO-DIMM 1866/2133 MHz up to 64GB).

The platform is based on Intel® HD530 Graphics, this Skylake / Kaby Lake GPU offers 24 execution units
(EUs) clocked at up to 1150Mhz (depending on the CPU model), The revised video engine now decodes
H.265/HEVC completely in hardware and thereby much more efficiently than before. Displays can be
connected via one CRT, one LVDS, one DVI-I, one HDMI and one DP port or Header for 2nd CRT or 2nd
VGA optional, up to three displays can be controlled simultaneously. AS-C7A offers lots of features
including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATAIII, equipped with dual
Gigabit Ethernet, and comes with PS/2 port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High
Definition Audio, and 1 x PCIE x16 slot, 1 x PCIE x4 slot, 1 x PCIE x1 slot, 2 x MiniPCIe socket(Support
mSATA), 4 x PCI slot, 1 x SIM slot.

BackToTop

  Key Feature



  • CPU: Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ S-series and Xeon® E3-1200 v5 / v6 Desktop Processor in the FCLGA1151 socket.

  • Memory: Four DDR4 1866 / 2133 MHz LO-DIMM up to 64 GB, Support Non-ECC, unbuffered memory only. (Xeon® E3-1200 v5 / v6 Product support ECC memory)

  • Chipset: Intel® C236 chipset.

  • Integrated GraphicsIntel® 9th Gen integrated HD Graphics. (Some Xeon® E3-1200 v5 / v6 Product CPU not support)

  • DVI interface: Onboard DVI-I connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply

  • DisplayPort interface: Onboard DisplayPort connector. (optional)

  • HDMI interface: Onboard HDMI connector.

  • VGA interface: 16-pin connector.

  • LAN Interface1 x Intel® I219-LM Gigabit PHY LAN, 1 x Intel® I210-AT Gigabit LAN.

  • Serial ATASupport 4 x SATA3.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O: 4 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LPC, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x VGA.

  • Rear I/O: 1 x DisplayPort(optional), 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.

  • Extended interface: 1 x PCIE X 16 slot, 1 x PCIE X 4 slot, 1 x PCIE X 1 slot, 2 x PCIE Mini cards (Optional support mSATA for Mini_Card1 and Mini_card2), 4 x PCI slot, 1 x SIM slot.

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V.

BackToTop

  Specification


Form Factor

ATX Industrial Motherboard

Processor

Skylake / Kaby Lake 6 th / 7th  Gen Core™ S-series and Xeon® E3-1200 v5 / v6 Desktop Processor.

Package Type:  FCLGA1151

Memory

4 x 288-pin DDR4 1866/2133 MHz LO-DIMM up to 64GB         (Unbufferred,  none-ECC memory supported only, Xeon® E3-1200 v5 / v6 Product support ECC memory)

Chipset

Intel® C236 PCH-H

Integrated Graphics

Intel® 9th Gen integrated HD Graphics. (Some Xeon® E3-1200 v5 / v6 Product CPU not support)

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Intel® C236 PCH-H built-in 4 x Serial ATA3 interface up to 600MB/s

Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.

VGA Interface

Onboard 16-pin connector

 DVI Interface  Onboard DVI connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 DisplayPort Interface  Onboard DisplayPort connector (optional)
 HDMI Interface  Onboard HDMI connector

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® I219-LM Gigabit PHY LAN, 1 x Intel® I210-AT Gigabit LAN

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE X 16 slot1 x PCIE X 4 slot1 x PCIE X 1 slot4 x PCI slot‚ 2 x PCIE Mini card, 1 x SIM socket.

(Optional support mSATA for Mini_Card1 and  Mini_Card2)

Internal I/O Port

4 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x PS/2(Keyboard & Mouse), 1 x SMBUS, 1 x VGA

Rear I/O Port

1 x DisplayPort(optional), 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) and

P4 4-pin 12V

Board Dimension

307 mm x 244 mm (L x W)

 Temperature

Operating within 0 ~ 60°C (32°F ~ 140°F)

Storage within -20 ~ 80°C (-4°F ~ 176°F)

Relative Humidity

 10%~90%, non-condensing



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

AS-C7A

Support Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ S-series Processor and Xeon® E3-1200 v5 / v6 Processor, DisplayPort, VGA, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, SATA3, COM, LCD inverter, Audio, PCIE Mini card,  PCIE X16 slot, PCIE X4 slot, PCIE X1 slot, PCI slot, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply and 4-pin 12V.

 AS-C7AT

Support Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ S-series Processor and Xeon® E3-1200 v5 / v6 Processor, 11pin socket (connect to ADP3355 for 2nd VGA or ADP-3460 for 2nd LVDS), VGA, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, SATA3, COM, LCD inverter, Audio, PCIE Mini card, PCIE X16 slot,  PCIE X4 slot, PCIE X1 slot, PCI slot, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply and 4-pin 12V.

ADP-3355

Display port to VGA.

ADP-3355 NB

Display port to VGA, without bracket

ADP-3460

Display port to LVDS
