PICMG 1.0 Intel® Penryn CPU card
Support Intel® Penryn CPU, DDRIII SO-DIMM up to 8GB, VGA, LVDS,
IDE, SATA, HD Audio, CF, GPIO, LPT, HDTV, IrDA, RS232/422/485,
FDD, USB, Mini PCI, SMBUS, DVI, Gigabit LAN,
PCI Express Mini Card socket
|
Overview
|
|

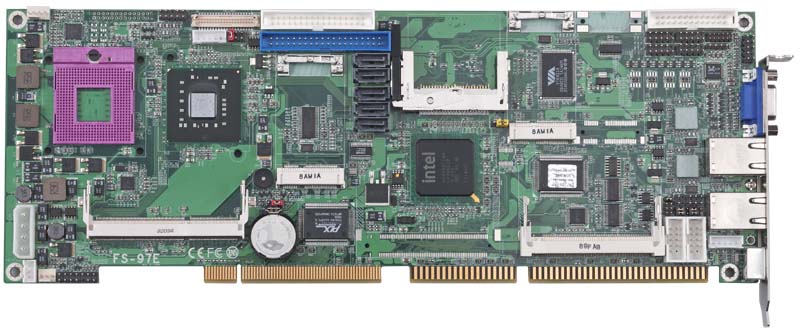

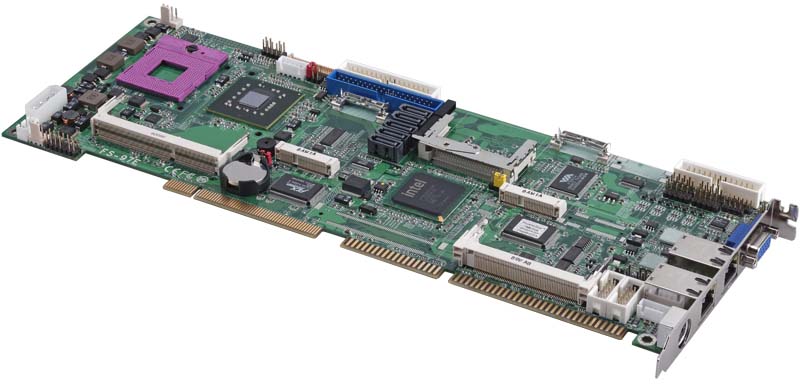

PICMG 1.0 Full-size CPU Card FS-97E incorporates an Intel Socket
P 45nm process technology with Intel Core 2 Duo
Mobile Penryn or Core 2 Extreme processors to
meet wide range needs of performance-intensive,
low-power embedded applications such as process control,
measurement, gaming platform, industrial control and
automation, digital security surveillance and medical
imaging.
It integrates Mobile Intel Graphics Media Accelerator 4500MHD, Intel
Clear Video Technology, and graphics core speeds up to
533MHz providing enhanced graphics and 3D rendering
performance and enabling high-definition video playback.
The latest Intel Integrated Graphics have been
architected to support DirectX10. It also takes
advantage of a generalized unified shader model. The
graphics core executes vertex 4.0, geometry, and pixel
shaders 4.0 on the array of Execution Units (EUs), ensures
that your customers will have a great time playing your
games and running other interactive 3D graphics
applications. It also supports numerous
display, includes VGA, DVI, LVDS, HDTV.
These CPU Card are available now with Windows XP, Vista. Additionally,
COMMELL also offers XP embedded OS for system
integrators or project basis.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel®
Penryn Socket P processor up to FSB 1066MHz.
-
Memory: 2
x 204-pin DDR3 SO-DIMM 800/1066MHz up to 8GB.
-
Chipset:
Intel®
GM45 and ICH9M.
-
VGA
Interface: Mobile Intel® Graphics Media
Accelerator (GMA) 4500MHD.
-
LVDS
interface: Onboard 18/24-bit Dual channel LVDS connector.
-
IDE
Interface: 1 x 40-pin UltraATA133 connector.
-
Serial ATA:
5
x Serial ATA interface
-
LAN
Interface: 2
x Gigabit Ethernet.
-
Solid
State Disk:
1 x Compact Flash Type-II socket.
-
GPIO
interface: Onboard
8-bit Digital I/O interface.
|
|
BackToTop |
Specification
|
|
Form Factor |
PICMG 1.0 SBC |
|
CPU |
Support
Intel Penryn Processor
Package
type: Micro-FCPGA478 (Socket P)
Front
Side Bus: 667/800/1066MHz |
|
Memory |
2
x 204-pin SO-DIMM DDR3 800/1066MHz up to 8GB |
|
Chipset |
Intel®
GM45 &
ICH9M |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
System
Reset
Time-out Counter ranges from 1sec (min) to 255sec
(min)
|
|
Power
Management |
ACPI
2.0 compliant, supports power saving mode
|
|
VGA Interface |
Mobile
Intel® Graphics Media Accelerator (GMA) 4500MHD |
|
Video
Memory |
Up to
1024 MB shared with system memory |
|
LVDS
Interface |
Onboard
18/24-bit Dual channel LVDS connector with +3.3V/+5V/+12V power
supply |
|
DVI
Interface |
Onboard
DVI transmitter with 26-pin DVI connector (optional) |
|
Serial ATA
Interface |
3
x SATAII @ 300MB/s interface speed
2
x SATAI @ 150MB/s interface speed (support RAID 0, 1) |
|
IDE
Interface |
1
x 40-pin UltraATA133 for 2 compatible devices |
|
Solid
State Disk |
1
x Compact Flash Type II interface |
|
Audio
Interface |
Intel
integrated ICH9-M with Realtek HD Audio
|
|
LAN Interface |
2
x Intel®
82574L Gigabit Ethernet controllers (optional) |
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extended
Interface |
2
x PCI Express Mini Card (optional)
1
x Compact Flash socket
1
x Mini PCI socket Type IIIA (optional)
|
|
Internal I/O
Port
|
1 x RS232/422/485,
1 x RS232 (optional),
1 x SMBUS,
1 x
GPIO, 1 x HDTV, 8 x USB, 1 x IrDA, 1 x LVDS,
1
x LCD inverter, 1 x
AT keyboard, 5 x SATA, 1 x IDE,
1 x
LPT, 1 x FDD, 1 x Front Panel Audio, 1 x CDIN,
1
x DVI (optional)
|
|
External I/O
Port |
RS232,
LAN, VGA, PS/2 keyboard & Mouse
(For
FS-97EXG, FS-97EXDG only)
|
|
2
x LAN, VGA, PS/2 keyboard & Mouse
(For
FS-97EXG2, FS-97EXDG2 only)
|
|
Power Requirement |
+5V, +12V & 5VSB
|
|
Board Dimension
|
338mm x 122 mm
|
|
Operation
Temperature |
Operating
within 0~60 centigrade
Storage
within -20~85 centigrade
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
FS-97EXG
|
Onboard
VGA, LVDS, HDTV, IDE, CF, SATA, COM, USB 2.0,
Mini
PCI, HD Audio, 2 x PCI Express Mini Card,
1 x Gigabit LAN
|
|
FS-97EXG2
|
Onboard
VGA, LVDS, HDTV, IDE, CF, SATA, COM, USB 2.0,
Mini
PCI, HD Audio, 2 x PCI Express Mini Card,
2 x Gigabit LAN
|
|
FS-97EXDG
|
Onboard
VGA, LVDS, HDTV, IDE, CF, SATA, COM, USB 2.0,
Mini
PCI, HD Audio, 1 x PCI Express Mini Card,
1 x Gigabit LAN,
DVI
|
|
FS-97EXDG2
|
Onboard
VGA, LVDS, HDTV, IDE, CF, SATA, COM, USB 2.0,
Mini
PCI, HD Audio, 1 x PCI Express Mini Card,
2 x Gigabit LAN,
DVI
|
|
MPX-574D
|
PCI Express Mini Card supports 1 x Gigabit LAN
|
|
MPX-574D2
|
PCI Express Mini Card supports 2 x Gigabit LAN
|
|
MPX-SDVOD
|
PCI Express Mini Card supports SDVO to DVI
|
|
MPX-827
|
PCI Express Mini Card supports SD card
|
|
MPX-954
|
PCI Express Mini Card supports 4 x RS232
|
