FS-A76
PICMG 1.3 SBC support 3rd and 2nd generation Intel® Core™ i7 / i5 / i3

Support  3rd and 2nd generation  Intel® Core i7 / i5 / i3 / desktop CPU with
Intel® Q77 Express, DDR3 up to 16GB, Onboard VGA & DVI, 2 x Giga LAN,
4 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, 4 x SATAII & 2 x SATAIIl with RAID,
GPIO, 2 x Mini-PCIe .



-
Overview
-
Feature
-
Specification
-

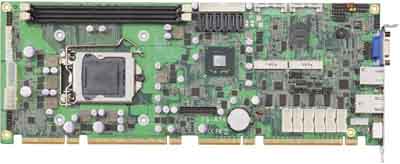

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched PICMG 1.3 SBC with Q77 Chipset.

FS-A76 designed for the 3rd generation Intel Core i7/i5/i3 processors in the LGA1155 by the Q77 chipset.  is part of the desktop Intel 7 Series Chipset family, along with a intel 3rd generation 22 nm Core i7/i5/i3, the Intel processors  with HD Graphic 4000 that contains a refresh of the seventh generation graphics core, DX11 Smoother rendering at higher resolutions for an improved 3D experience, OGL4.X  Improved realism for OGL 3D . based application and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly. This platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming, Medical Instruments, Surveillance Server, Military systems, print imaging and digital signage etc.

FS-A76 SBC is based on Q77 chipset, and equipped with DDR3 1066/1333 MT/s data transfer rates memory up to a maximum of 16GB in dual DIMM slots. FS-A76 supports VGA, DVI. 5 x RS232 and 1 x RS232/422/485 ports, Networking is provided by Intel 1 x 82574L Giga LAN and 1 x82579LM Giga LAN, 4 x USB2.0 ports, 4 x USB3.0 ports, High Definition Audio port, 4 SATA2.0 and 2 SATA3.0, two Mini-PCIE expansion slots & 1 x SIM socket.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology ex. i7-3770

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

BackToTop

  Key Feature
  • CPU: Intel® 3rd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155  socket

  • (support Intel® 2nd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155 socket)

  • Memory2 x DDR3 1066/1333 DIMM up to 16 GB

  • Chipset: IntelR BD82Q77 PCH

  • Display InterfaceOnboard VGA & DVI

  • LAN Interface2 x Giga LAN.

  • Serial ATA: Support four SATA2 + two SATA3 with RAID 0,1,5,10.

  • Audio: Intel® Q77 integrated with Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports, 4 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, Audio, SPDIF

  • Extended interfacePICMG 1.3 Interface Support 1 PCI-Express x16 and 1 PCI-Express x4 or 4 PCI-Express x1,4 PCI bus master, and 4 USB2.0 Interface and 2 x PCIE mini card socket.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

BackToTop

  Specification


Form Factor

PICMG 1.3 SBC

Processor

Supports 3rd Generation Intel®  Core i7/ i5/ i3/ PentiumR Desktop Processor

Package Type: FCLGA1155

Memory

2 x DDR3 1066/1333 DIMM up to 16 GB

Chipset

Intel® Q77 Express Chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 3.0 compliant, supports power saving mode

Serial ATA Interface

Intel® Q77 chipset built-in 4 x Serial ATA II interface up to 300MB/s

2 x SATA3 interface up to 600MB/s. Total 6 x SATA interface

Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology

VGA Interface

Integrated Intel® HD graphic technology

 DVI Interface  Onboard 20-pin DVI interface

Audio Interface

Intel® integrated Q77 with Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L & 1 x Intel® 82579LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

Support one PCI-Express x16 one PCI-Express x4  (or four  PCI-Express x1four PCI bus master ), 4 x USB2.0 Interface and 2 x PCIE mini card socket,

Internal I/O Port

1 x RS232/422/485, 1 x GPIO port, 1 x CDIN connector, 1 x Audio  connector, 1 x IrDA, 1 x SIM socket, 1 x SMBUS connector, 5x  Serial Port, 4 x USB 2.0, 4 x USB3.0, 1 x Parallel port.

External I/O Port

1 x PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 1 x DB15 VGA port

Power Requirement

+5V, +12V & 5VSB

Board Dimension

338 mm x 126 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

FS-A76TDG

Onboard VGA, DVI, 4 x USB2.0, 4 x USB3.0, 6 x serial Port, 6 x SATA, 1 x IrDA, 1 x LPC,Realtek HD 5.1CH Audio, GPIO and 2 x PCI Express mini card, 1 x Giga LAN (82579LM),Support Four X1 & One X16 PCI Express interface

FS-A76FTDG

Onboard VGA, DVI, 4 x USB2.0, 4 x USB3.0, 6 x serial Port, 6 x SATA, 1 x IrDA, 1 x LPC,Realtek HD 5.1CH Audio, GPIO and 2 x PCI Express mini card, 1 x Giga LAN (82579LM),Support One X4 & One X16 PCI Express interface

FS-A76TDG2

Onboard VGA, DVI, 4 x USB2.0, 4 x USB3.0, 6 x serial Port, 6 x SATA, 1 x IrDA, 1 x LPC,Realtek HD 5.1CH Audio, GPIO and 2 x PCI Express mini card, 2 x Giga LAN,Support Four X1 & One X16 PCI Express interface

FS-A76FTDG2

Onboard VGA, DVI, 4 x USB2.0, 4 x USB3.0, 6 x serial Port, 6 x SATA, 1 x IrDA, 1 x LPC,Realtek HD 5.1CH Audio, GPIO and 2 x PCI Express mini card, 2 x Giga LAN,Support One X4 & One X16 PCI Express interface

DBPE-1308AC2

 8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane
DPE-6S2-R40  3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane
DPE-10S-R40  4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
