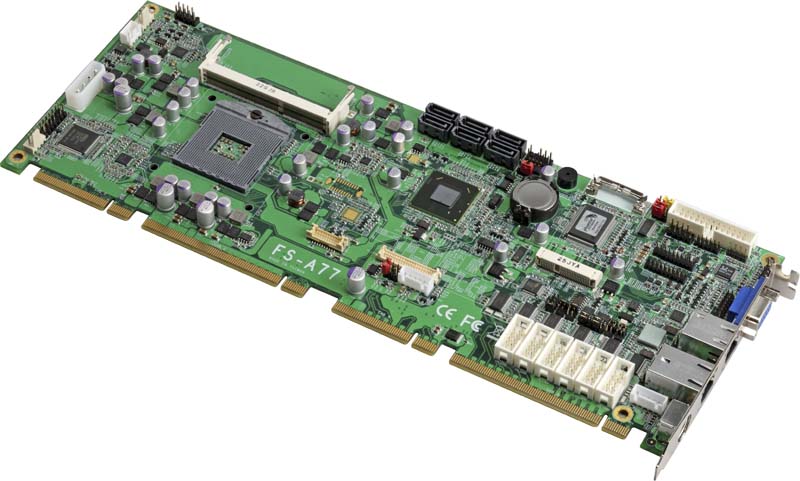

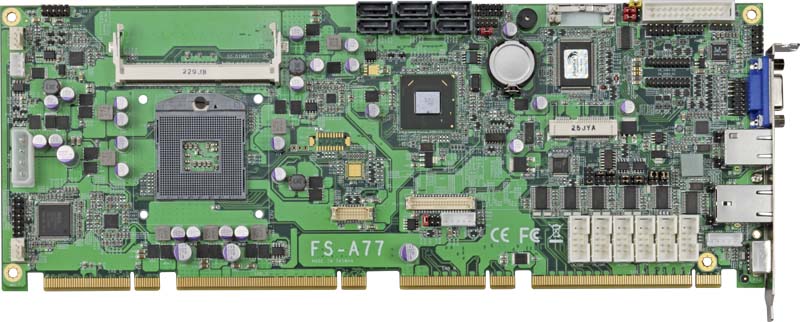

FS-A77
PICMG 1.3 SBC support 3rd generation Intel® Core™ i7 / i5 / i3
Support 3rd generation Intel® Core™ i7 / i5 / i3  Mobile CPU with
Mobile Intel® QM77 Express, onboard VGA, DVI, LVDS, 16 GB DDR3
2 x Giga LAN, 4 x USB 2.0, 4 x USB 3.0, 6 x COM, 6 x SATA, HD Audio, LPT,
GPIO , SMBUS, IrDA, LPC, Mini-PCIe socket,

view larger image





-

Overview
-

Feature
-

Specification
-

Product Image
-

Ordering Guide
-

Datasheet (PDF format)
-

Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched FS-A77  ---  PICMG 1.3 SBC with QM77

FS-A77 are designed for the 3rd generation Intel Core i7/i5/i3 processors in the rPGA988B by the QM77 chipset. Intel processors  with HD Graphic  4000 that contains a refresh of the seventh generation graphics core, DX11 Smoother rendering at higher resolutions for an improved 3D experience, OGL4.X  Improved realism for OGL 3D . based application and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly. This platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming

FS-A77 which is intended to plug into a backplane, This CPU Card is based on QM77 Express chipset too, supports 16GB DDR3 SO-DIMM memory, comes with DVI, VGA & LVDS, two Giga LAN, 4 SATA2 & 2 SATA3, HD Audio, 5 x RS232 & 1 x RS232/422/485, 4 x USB2.0,4 x USB3.0, GPIO and one PCIE mini card expansion socket.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology, ex. i7-3610QE

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

　

BackToTop

  Key Feature

  • CPU: Intel® 3rd generation Core™ i7/ i5/ i3 & Celeron Mobile in the rPGA988B socket

  • Memory: Two DDR3 SO-DIMM 1006/1333/1600 MHz up to 16 GB

  • Chipset: Mobile Intel® QM77 Express chipset

  • Integrated Graphics: Intel® Core™ integrated HD Graphics 4000 Technology

  • VGA Interface: Onboard DSUB15 connector for VGA interface

  • LVDS interface: Onboard 24-bit dual channel LVDS interface

  • DVI interface: Onboard DVI interface

  • LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN(Support iAMT8.0).

  • Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII )

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports, 4 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, 1 x LPT

  • Extended interface: 1 x Mini-PCIe socket

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Expansion Interface: PICMG 1.3 Interface Support 1 PCI-Express x 16 and 1 PCI-Express x 4 or 4 PCI-Express x 1 、4 PCI bus master,and 4 USB2.0 Interface and 1x PCIE mini card socket.

BackToTop

  Specification


Form Factor

PICMG 1.3 SBC

Processor

3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor

Package Type: rPGA988B

Memory

2 x DDR3 SO-DIMM 1066/1333/1600 SO-DIMM up to 16 GB

(Support Non-ECC, unbuffered memory only)

Chipset

Mobile Intel® QM77 Express chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 3.0 compliant

Serial ATA Interface

4 x Serial ATA II interface up to 300MB/s

2 x SATAIII interface up to 600MB/s. Total 6 x SATA interface

VGA Interface

Onboard DSUB15 connector for VGA interface.

LVDS Interface

Onboard 24-bit dual channel LVDS interface

 DVI Interface  Onboard 20-pin DVI interface

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x Mini-PCIe socket, PCIe X16 & X4 or PCIe X16 & X1 bus

 master, 4 x USB2.0 Interface .

Internal I/O Port

1 x RS232/422/485 & 5 x RS232, 1 x GPIO, 1 x CDIN, 1 x SMBus

1 x Audio, 1 x IrDA,4 x USB2.0 ports, 4 x USB3.0 ports, 1 x LPT, 1 x LPC

External I/O Port

1 x PS/2 keyboard/mouse, RJ45 LAN, 1 xDB15 VGA port .

Power Requirement

+5V, +12V DC input & 5V standby requirement

Board Dimension

338 mm x 126 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

FS-A77TXDG

Intel PGA988B + QM77 Onboard VGA, LVDS, DVI, USB2.0, USB3.0, COM, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card, 1 x Giga LAN
Support Four X1 & One X16 PCI Express interface

FS-A77FTXDG

Intel PGA988B + QM77 Onboard VGA, LVDS, DVI, USB2.0, USB3.0, COM, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card, 1 x Giga LAN
Support One X4 & One X16 PCI Express interface

FS-A77TXDG2

Intel PGA988B + QM77 Onboard VGA, LVDS, DVI, USB2.0, USB3.0, COM, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card, 2 x Giga LAN
Support Four X1 & One X16 PCI Express interface

FS-A77FTXDG2

Intel PGA988B + QM77 Onboard VGA, LVDS, DVI, USB2.0, USB3.0, COM, HD Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, GPIO and PCI Express mini card, 2 x Giga LAN
Support One X4 & One X16 PCI Express interface

DBPE-1308A

  8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane
DPE-6S2-R40  3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane
DPE-10S-R40  4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
