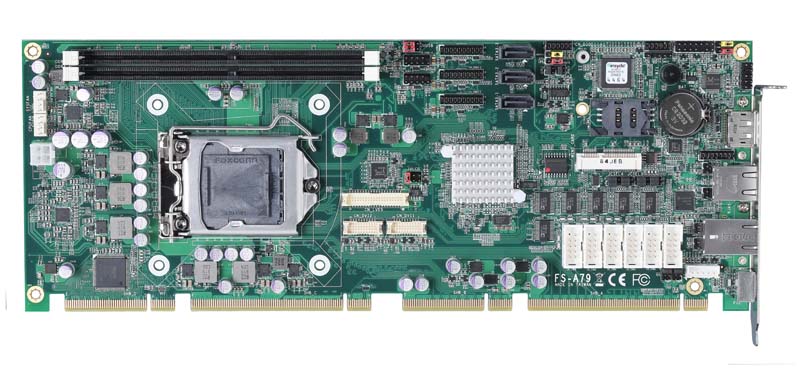

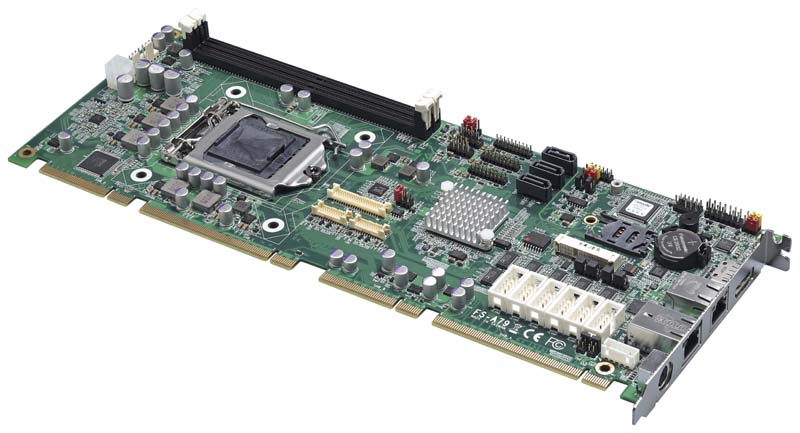

FS-A79

PICMG 1.3 SBC support 8^th & 9^th generation Intel® Core™ Desktop Processors

Support  8^th & 9^thgeneration  Intel® Core^™ Desktop CPU with

Intel® Q370, DDR4 up to 32GB, onboard DisplayPort , VGA & DVI & LVDS,

1 x Giga LAN, 1 x Giga PHY LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, HD Audio,

3 x SATA3 with RAID, LPC, SMBus, GPIO, 1 x Mini-PCIe, 1 x SIMM.


view larger image
	-	Overview
	-	Feature
	-	Specification
	-	Product Image I/O
	-	Ordering Guide
	-	Datasheet (PDF format)
	-	Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched PICMG 1.3 SBC with Q370 Chipset.

FS-A79 SBC is based on Q370 chipset, and equipped with DDR4 2666 MT/s data transfer rates memory up to a maximum of 32GB in dual DIMM slots.

FS-A79 supports DisplayPort, VGA, DVI, LVDS. 4 x RS232 and 2 x RS232/422/485 ports, Networking is provided by Intel 1 x I210 Giga LAN and 1 x I219-LM Giga PHY LAN, 4 x USB2.0 ports, 6 x USB3.0 ports, High Definition Audio port, 3 x SATA3.0, 1 x Mini-PCIE expansion slot.

Onboard Intel® I219-LM GbE controller support Intel® AMT 12 feature on primary LAN port. The BIOS is ready to support Intel® AMT 12 feature. The necessary prerequisite is your CPU must support Intel® vPro technology.

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

BackToTop

  Key Feature

CPU: Intel® 8^th & 9^th generation Core™ Desktop in the FCLGA1151 socket
Memory: 2 x DDR4 2666 DIMM up to 32 GB
Chipset: Intel® Q370
Display Interface: 1 x DisplayPort, 1 x VGA, 2 x DVI, 1 x LVDS.
LAN Interface: 1 x Giga PHY LAN, 1 x Giga LAN.
Serial ATA: Support 3 x SATA3 with RAID 0,1.
Audio: Realtek ALC262 High Definition Audio.
Internal I/O: 3 x SATA3, 4 x RS232, 2 x RS232/422/485, 4 x USB2.0, 6 x USB3.0, 1 x VGA, 1 x LVDS, 1 x LCD inverter, 2 x DVI, 1 x Audio, 1 x SMBus, 1 x LPC, 1 x GPIO.

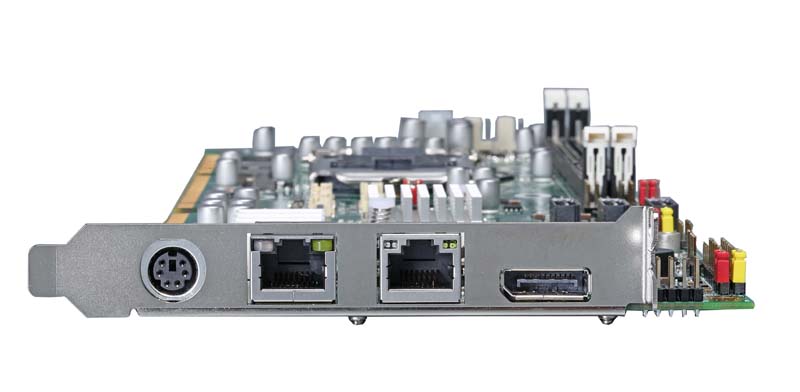

Rear I/O: 1 x DisplayPort, 2 x LAN, 1 x PS/2
Extended interface: PICMG 1.3 Interface support 1 x PCI-Express x16 slot, 1 x PCI-Express x4 slot or 4 x PCI-Express x1 slot(optional), 4 x PCI slot, 1 x MiniPCIe (mSATA only Support SATA3), 1 x SIM slot.
GPIO interface: Onboard programmable 8-bit Digital I/O interface.

BackToTop

  Specification

Form Factor	PICMG 1.3 Full-size CPU card
Processor	Supports 8th & 9th Generation Intel® Core™ Desktop Processor Package Type: FCLGA1151
Memory	2 x DDR4 2666 DIMM up to 32 GB
Chipset	Intel® Q370
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management	ACPI 5.0 compliant
Serial ATA Interface	Intel® Q370 PCH built-in 3 x Serial ATA3 interface up to 600MB/s Support RAID 0, 1 and Intel Rapid Storage Technology.(not support SATA2 device)
DVI Interface	Two onboard 20-pin DVI interface
LVDS Interface	Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
VGA Interface	Onboard 2x8 pin-header
Audio Interface	Intel® integrated Q370 with Realtek ALC232 HD Audio
LAN Interface	1 x Intel® I210-AT & 1 x Intel® I219-LM Gigabit Ethernet Controller
GPIO Interface	Onboard programmable 8-bit digital I/O interface
Extended Interface	Support 1 x PCI-Express x16, 1 x PCI-Express x4 or 4 x PCI-Express x1(optional), 4 x PCI slot, 1 x MiniPCIe (mSATA only Support SATA3), 1x SIM slot
Internal I/O Port	2 x RS232/422/485, 4 x RS232, 1 x GPIO, 1 x Audio, 1 x SMBus, 1 x VGA, 1 x LVDS, 2 x DVI, 1 x LPC, 4 x USB2.0, 6 x USB3.0, 3 x SATA3
External I/O Port	1 x PS/2, 1 x DisplayPort, 2 x LAN
Power Requirement	+5V, +12V & 5VSB
Board Dimension	338 mm x 126 mm (L x W)
Temperature	Operating within 0 ~ 60°C Storage within -20 ~ 85°C
Relative Humidity	10%~90%, non-condensing

Download Datasheet @ PDF format

BackToTop

Ordering Guide
FS-A79G201	Onboard DVI, VGA, LVDS, DisplayPort, USB3.0 & 2.0, 6 x Serial Port, 3 x SATAIII, GPIO, LPC, Realtek HD Audio, SMBus, mSATA, 1 x Gigabit LAN (I210-LM), 1 x Gigabit PHY LAN (I219-LM).Support 1 PCI-Express x16 and 4 PCI-Express x1
FS-A79G204	Onboard DVI, VGA, LVDS, DisplayPort, USB3.0 & 2.0, 6 x Serial Port, 3 x SATAIII, GPIO, LPC, Realtek HD Audio, SMBus, mSATA, 1 x Gigabit LAN (I210-LM), 1 x Gigabit PHY LAN (I219-LM).Support 1 PCI-Express x16 and 1 PCI-Express x4

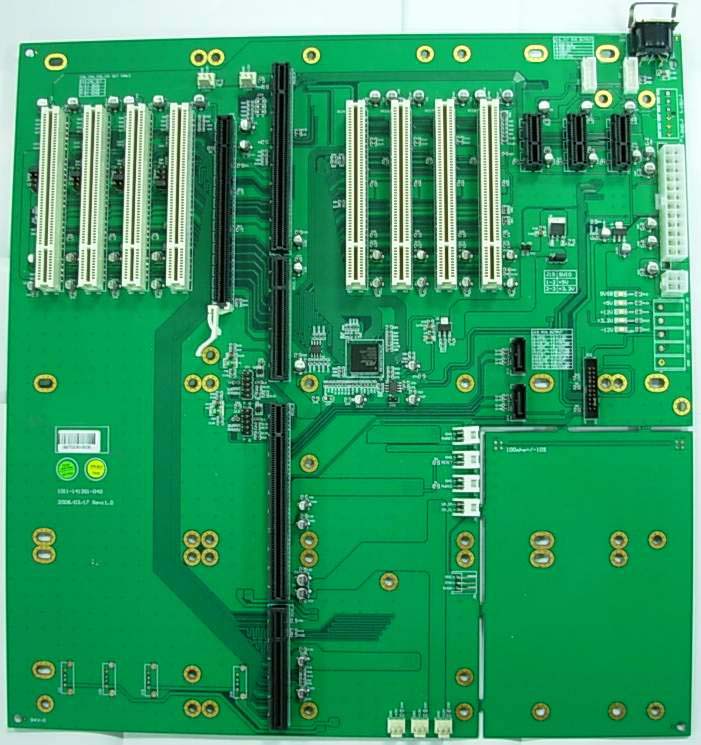

DBPE-1308A	8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane

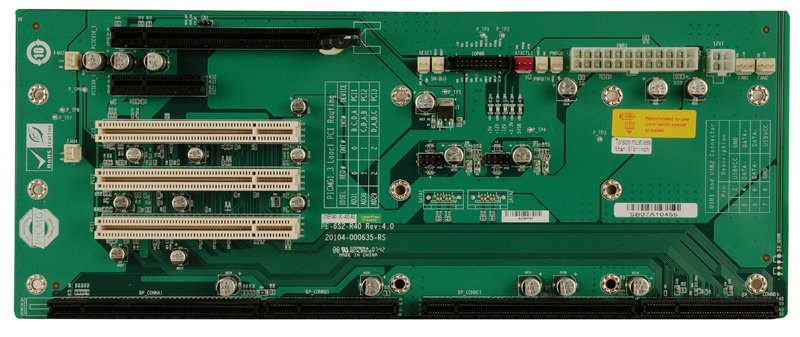

DPE-6S2-R40	3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane

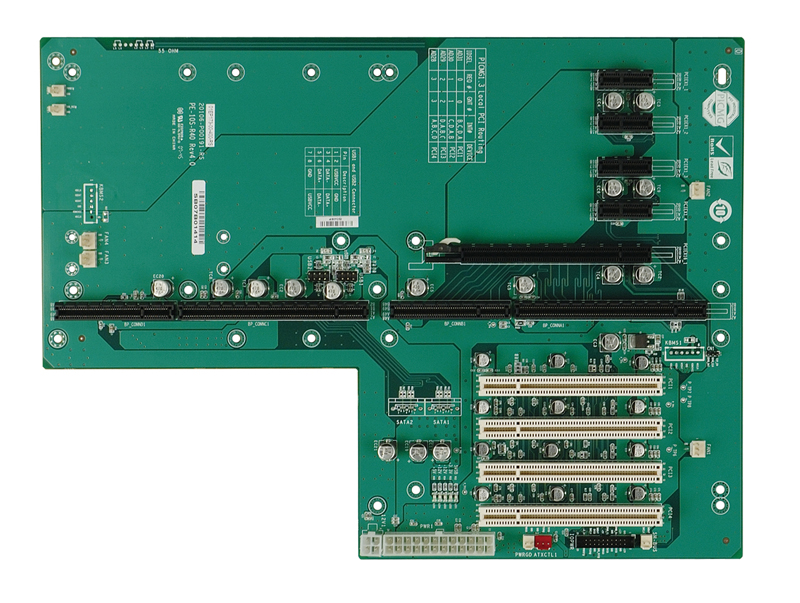

DPE-10S-R40	4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
