HS-871P-- Mobile Celeron 1.2G / Giga LAN Available Now --


Onboard Intel Mobile Celeron 1.2GHz 256KB cache @400MHz FSB uFCPGA CPU with Intel 82852GM & ICH4, 1 GB DDR SDRAM, Gigabit Ethernetport ,

2 x USB 2.0, 2 x COM, 1 x Parallel, AC97 3D Audio, CompactFlash Interface, 8-bit Digital I/O , 24-bit  Dual  LVDS







-
Overview


-
Feature


-
Specification


-

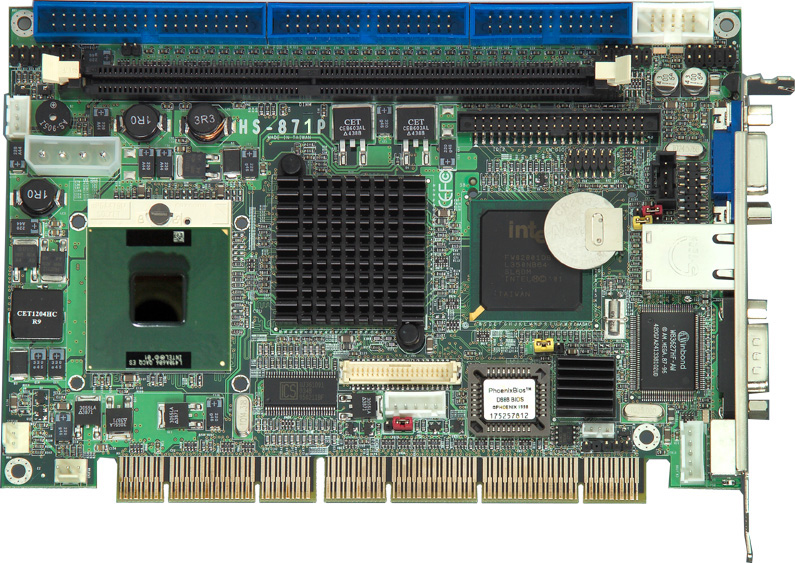

Product Image


-
Ordering Guide


-
Datasheet (PDF format)


-
Technical Document

  Overview

COMMELL’s  Half-size PISA(PCI+ISA) platform HS-871P based on Intel 82852GM and 82801DB Chipset, which offers a highly integrated low power, high performance chipset solution that has been optimized to On-board Intel® Mobile Celeron® 1.2GHz  processor. Meanwhile, the Low voltage and Ultra Low voltage version supports on HS-871P The low voltage and Ultra Low voltage version allows you operate the system in the most tough environment. The HS-871P supports high speed DDR266 memory providing maximum capacity 1GB, integrated graphics controller with Intel Extreme Graphics 2 dual independent displays , The integrated display controller comes with up to 64 MB of dynamic video memory allocation and Single- or Dual-channel LVDS panel support up to SXGA+ panel resolution.

The HS-871P comes with floppy, PS/2 Keyboard and Mouse, 2 x RS232C, 1 x Printer port, UltraATA 100 EIDE and IrDA interface on-board, Networking is provided by Intel 82541PI Gigabit Ethernet LAN. 2 x USB2.0 ports for 40X faster data transfer rate and backward compatible to support USB 1.0 devices and AC97 3D Audio are also integrated. Additionally, HS-871P is also equipped with CompactFlash Interface for easily using any memory card.

The COMMELL HS-871P is designed to meet the needs of applications that require extraordinary computing performance, reliability and other tough environment with low power consumption processor, which also well supports with the Windows 2000/XP,

BackToTop

  Feature

  • CPU: Onboard Intel Mobile Celeron 1.2GHz 256KB cache  @400MHz FSB uFCPGA CPU

  • Memory: 1 x 184 pin DDR DIMMs support up to 1.0GB DDR 266 SDRAM.

  • Chipset: Intel® 82852GM and 82801DB.

  •  VGA Interface: Intel Extreme Graphics 2 Technology.

  • LVDS InterfaceDual channel 24-bit interface for LVDS.

  • Enhanced IDE: dual Channels support 4 ATAPI devices up to Ultra DMA 33/66/100 mode with data transfer rate up to 100MB/s.

  • LAN Interface:  Intel 82541PI Gigabit Ethernet Controller.

  • Audio: Realtek ALC201A AC97 3D audio interface.

  • USB2 Hi-Speed USB 2.0 interface with up to 480 Mbps of data transfer rate.

  • I/O Ports2 serial ports, 1 parallel port, IrDA, FDD, PS/2 keyboard and mouse ports.

  • Solid State DiskOn board CompactFlash Type-II socket.

  • Digital I/O: Supports 8 bit digital I/O.

  •  Watchdog: Software configurable, 1s.....255s / 1ms.....255 ms.



BackToTop

  Specification

Form Factor

Hall-size PISA-bus CPU Card / Slot PC with 32-bit PCI and 8/16-bit ISA bus interfaces

CPU

Onboard Intel Soket479 bundled with Mobile Celeron 1.2GHz 256KB cache  @400MHz FSB uFCPGA CPU

Memory

1x184 pin DDR DIMMs to support up to 1.0GB DDR266 SDRAM

Chipset

Intel 82852GM & ICH4

Watchdog Timer

256-level generates system reset programmable watchdog timer

Real Time Clock

Intel ICH4 integrated RTC with onboard lithium battery

Power Management

ACPI 1.0 compliant, supports power saving mode with ATX PSU, RTC alarm, Software shutdown, Wake on LAN

PCI Enhanced IDE

Supports two IDE channels & up to four IDE drivers Supports “Ultra DMA 33/66/100”

VGA Interface

Intel 82852GM GMCH built-in 256bit 2D/3D VGA controller, Dynamic video memory up to 64MB, Supports one external D-sub 15-pin connector & one internal 2x8-pin header

LVDS

Supports up to 24-bit Dual LVDS TFT LCD panel Inverter connector on board

LAN Interface

Intel 82541PI Gigabit Ethernet Controller.

Audio Interface

Intel ICH4 built-in AC97 3D audio controller with ALC201A

Multi-I/O Port

1 Floppy connector, 1 Printer port, 2 RS232 port, 1 SIR connector, 2 USB 2.01 Y-type cable to support PS2 Keyboard & PS2 mouse, 1 AT keyboard connector

Solid State Disk

Onboard Compact Flash Type-II socket

Environment

+5V & +12V DC input from backplane.Operation Temperature: 0 ~ 60oC (32 ~ 140oF)



Download datasheet @ PDF format

BackToTop

  Ordering Guide


  HS-871P ( OEM )

(MOQ:50pcs)

Half-size PISA onboard Intel Mobile Celeron 1.2GHz 256KB cache  @400MHz FSB uFCPGA CPU with Intel 82852GM & ICH4, 1GB DDR SDRAM, Intel Extreme Graphics 2, Intel Giga LAN, Audio, USB 2.0, CompactFlash Interface
