LE-37C

4^th / 5^th generation Intel® Core™ i7 / i5 / i3 & Celeron® processor (Haswell / Broadwell)

3.5"SBC Motherboard

Support  4^th / 5^th generation  Intel® Core^™ i7 / i5 / i3 & Celeron® Mobile CPU with

Intel® QM87 Express, DDR3L SO-DIMM up to 8GB, Onboard DisplayPort, VGA & DVI

 & LVDS, 1 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0, 2 x COM, HD Audio, GPIO,

 2 x SATAIIl with RAID, 1 x SIM, 1 x CFast, 2 x Mini-PCIe sockets.

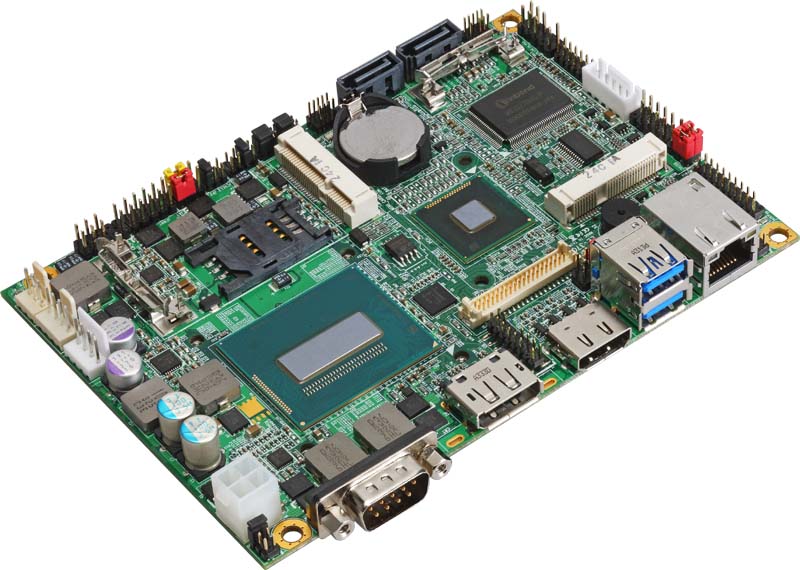

view larger image
	-	Overview
	-	Feature
	-	Specification
	-	Product Image
	-	Ordering Guide
	-	Datasheet (PDF format)
	-	Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a 3.5" miniboard form form factor LE-37C embedded system board with the Intel® QM87 Express chipset, which adopts the 4^th / 5^th generation Intel® Core™ Mobile processor family, ex. i7-4700EQ. (formerly known as “Haswell / Broadwell”, manufactured on 22nm processor technology). The COMMELL LE-37C platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

The LE-37C 3.5" Embedded mainboard is designed for the 4th/5th generation Intel® Core™, Celeron Mobile processors in the FCBGA1364 supporting one DDR3L SO-DIMM up to 8GB and running 1333/1600 Mhz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LE-37C supports VGA, LVDS, DVI-I and one DisplayPort to provide its advanced solutions for imaging, machine vision and digital signage applications.

LE-37C offers lots of features including high-speed data transfer interfaces such as 4 x USB3.0 and 2 x SATAIII supported RAID 0/1, equipped with single Gigabit Ethernet with iAMT 9.0 supported, and it comes with PS/2 Keyboard and Mouse port, 1 x RS232 and 1 x RS232/422/485, 2 x USB2.0, Intel® High Definition Audio, and 2 x PCIE Mini card sockets.

BackToTop

  Key Feature

CPU: Intel® 4^th / 5^th generation Core™ i7/ i5/ i3 & Celeron® processor (Haswell / Broadwell) in the FCBGA1364 socket
Memory: 1 x DDR3L SO-DIMM 1333/1600 MHz up to 8 GB
Chipset: Intel® QM87 Express chipset
Integrated Graphics: Intel® Core™ integrated HD Graphics 4600 Technology
DisplayPort interface: Onboard DisplayPort connector
DVI interface: Onboard DVI connector
LVDS interface: Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
LAN Interface: 1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)
Serial ATA: 2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)
Audio: Realtek ALC888 High Definition Audio
Internal I/O Port: : 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0, 1 x IrDA, 1 x CRT, 1 x LPC,1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3, 1 x DC-Out, 1 x PS/2, 1 x CFAST and 1 x Front panel Audio
External I/O Port : 1 x LAN, 1 x DVI, 1 x DisplayPort, 2 x USB3.0 and 1 x RS232
Extended interface: 2 x PCIE Mini card slots, 1 x CFast Card socket, 1 x SIM socket. (Optional support mSATA(SATAIII) for Mini_Card1)
GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface
Power Requirement: 9~24V 4-pin full range DC Input.

BackToTop

  Specification

Form Factor	3.5" Single Board Computer
Processor	4^th/ 5^th Generation Intel® Core™ i7/ i5/ i3 & Celeron® Mobile Processor (Haswell / Broadwell). Package Type: FCBGA1364
Memory	1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB.Support Non-ECC, only unbuffered memory.
Chipset	Intel® DH82QM87 PCH
Integrated Graphics	Intel® Core™ integrated HD Graphics 4600 Technology
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management	ACPI 4.0 compliant
Serial ATA Interface	2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)
Display Interface	Intel® 4th/5th Generation Core mobile processor integrated HD Graphics 4600 1 x CRT (Onboard 2x8 pin-header) 1 x DVI (Rear I/O connector) 1 x DisplayPort (Rear I/O Port) 1 x LVDS (Onboard 24-bit dual channel connector with +3.3/+5/+12V supply)
LVDS Interface	Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
Audio Interface	Realtek ALC888 HD Audio
LAN Interface	1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)
GPIO Interface	Onboard programmable 12 pin-header, 8-bit Digital I/O interface
Extended Interface	2 x PCIE Mini card slots, 1 x CFast Card socket, 1 x SIM socket. (Optional support mSATA(SATAIII) for Mini_Card1)
Internal I/O Port	1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0, 1 x IrDA, 1 x CRT, 1 x LPC, 1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3, 1 x DC-Out, 1 x PS/2, 1 x CFAST and 1 x Front panel Audio
External I/O Port	1 x LAN, 1 x DVI, 1x DisplayPort, 2 x USB3.0 and 1 x RS232
Audio Interface	Realtek ALC888 High Definition Audio.
Power Requirement	9~24V 4-pin full range DC Input.
Board Dimension	146mm x 101mm (L x W)
Temperature	Operating within 0 ~ 60°C Storage within -20 ~ 85°C

Download Datasheet @ PDF format

BackToTop

Ordering Guide
LE-37C17L	i7-4700EQ Mobile Processor, Onboard DisplayPort, DVI, LVDS, CRT, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.
LE-37C17P	Celeron 2002E Mobile Processor, Onboard DisplayPort, DVI, LVDS, CRT, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.
LE-37C17Q	i5-4402E Mobile Processor, Onboard DisplayPort, DVI, LVDS, CRT, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.
LE-37C17R	i3-4102E Mobile Processor, Onboard DisplayPort, DVI, LVDS, CRT, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.
LE-37C2E6	i7-5700EQ Mobile Processor, Onboard DisplayPort, DVI, LVDS, CRT, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.
