LE-37I
3.5 inch Miniboard with Intel® Skylake / Kaby Lake (6th/7th)  H-series Processor
and Xeon® E3-1505M v6 Mobile Processor

Intel® Skylake / Kaby Lake (6th / 7th)  H-series Processor and Xeon® E3-1505M v6 Processor.
Onboard  HDMI, LVDS, DisplayPort, DVI, VGA, HD Audio, Serial ATA3, 4 x USB3.0, 4 x USB2.0,
1 x Gigabit LAN, 1 x Gigabit PHY LAN, 2 x PCIE Mini card support mSATA, 1 x SIM slot

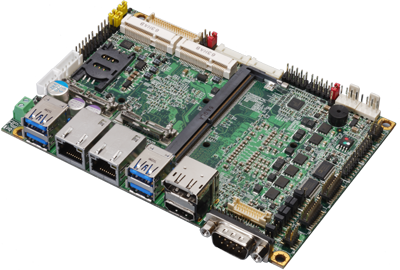

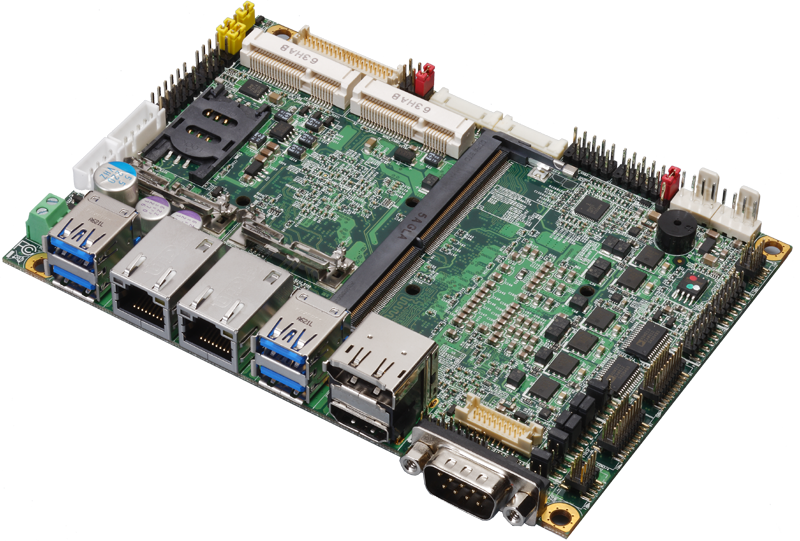

view larger image



-
Overview
-
Feature
-
Specification
-

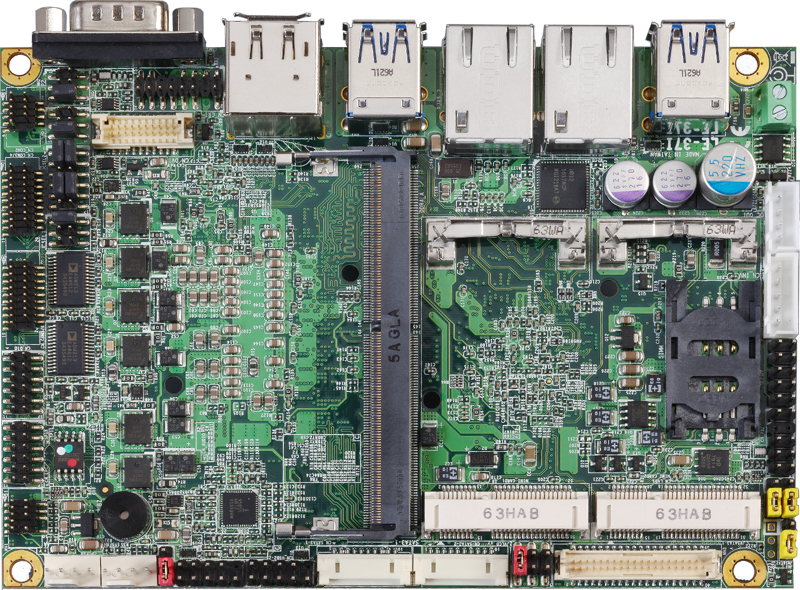

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
launched a 3.5 inch Miniboard form factor LE-37I consists of the Intel® Skylake / Kaby Lake (6th / 7th)
H-Series and Xeon® E3-1505M v6 Processor, combined with the Intel® Express chipset, integrated HD
Graphics Technology with integrated memory. The COMMELL LE-37I platform provides excellent CPU,
graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring
multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial
automation application.

The 3.5 inch Miniboard LE-37I is designed for Intel® Skylake / Kaby Lake (6th / 7th) H-series processors
supporting one DDR4 SO-DIMM up to 16GB and running 2133 MHz No ECC function. The platform is
based on Intel® Skylake / Kaby Lake H-series and Xeon® E-1505M v6 integrated HD Graphics Technology
that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and
interactive content. In addition, LE-37I integrated LVDS, HDMI, DisplayPort, VGA, LVDS  for Triple display
supports to provide its advanced solutions for imaging, machine vision and digital signage applications.

LE-37I offers lots of features including high-speed data transfer interfaces such as 4 x USB 3.0, equipped
with 1 x Gigabit Ethernet, 1 x Gigabit PHY Ethernet, and it comes with PS/2 Keyboard and Mouse port,
1 x RS232/422/485, 5 x RS232, 4 x USB2.0, Intel® High Definition Audio, 2 x PCIE Mini card socket
support mSATA.

BackToTop

  Key Feature



  • CPUSkylake / Kaby Lake Intel®  6th / 7th Gen Core™ H-series and Xeon® E3-1505M v6 Mobile processor, FCBGA1440 package.

  • Memory1 x DDR4 2133 MHz SO-DIMM up to 16 GB.

  • Integrated Graphics: Intel® Gen 9 integrated HD Graphics.

  • DisplayPort interface: Onboard DisplayPort connector.

  • HDMI interface: Onboard HDMI connector.

  • LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.

  • LAN Interface1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11.0), 1 x Intel® I210-AT Gigabit LAN.

  • Serial ATASupport 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support RAID 0,1.

  • Audio: Realtek ALC262 HD Audio.

  • Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x VGA, 1 x DVI, 4 x USB 2.0, 2 x SATA3.

  • External I/O Port: 1 x RS232, 1 x HDMI port, 1 x DisplayPort, 2 x LAN, 4 x USB 3.0.

  • Extended interface2 x MiniPCIe support mSATA, 1 x SIM slot.

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

  • Power RequirementDC Input 9~30V.

BackToTop

  Specification


Form Factor

3.5 inch miniboard

Processor

Intel® Skylake / Kaby Lake 6th / 7th Gen Core™ H-series and Xeon® E1505M v6 Mobile processor, FCBGA1440 package

Memory

1 x DDR4 2133 SO-DIMM up to 16GB. Support Non-ECC.

Integrated Graphics

Intel® Gen 9 integrated HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, support

RAID 0,1.

 Display Interface

Intel® HD Graphics Technology

1 x HDMI (Rear I/O HDMI connector)

1 x DisplayPort (Rear I/O Port)

1 x LVDS (One onboard 24-bit dual channel connector with +3.3/+5/+12V supply)

1 x VGA (Onboard 2x8 pin-header)

1 x DVI (Onboard 2x10 pin-header)

LVDS Interface

One onboard 18/24-bit dual channel LVDS connector with +3.3/+5/+12V supply

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11.0),

1 x Intel® I210-AT Gigabit LAN

GPIO Interface

Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface

2 x MiniPCIe support mSATA, 1 x SIM slot.

Internal I/O Port

1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x VGA, 1 x DVI, 1 x LPC, 4 x USB 2.0, 2 x SATA3

External I/O Port

1 x RS232, 1 x HDMI port, 1 x DisplayPort, 4 x USB 3.0, 2 x LAN

Power Requirement

Full ranged DC Input 9~30V

Board Dimension

146mm x 101mm (L x W)

Temperature

Operating within 0°C ~ 60°C (32°F ~ 140°F)

Storage within -20 ~ 80°C (-4°F ~ 176°F)

Relative Humidity

10% ~ 90%, non-condensing



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

  LE-37IK3F

With i3-7102E, QM175 (TDP 25W), DisplayPort, VGA, DVI-D, HDMI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, Cooler fan

  LE-37IK5F

With i5-7442EQ, QM175 (TDP 25W), DisplayPort, VGA, DVI-D, HDMI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, Cooler fan

  LE-37IKXF

With E3-1505L v6, CM238 (TDP 25W), DisplayPort, VGA, DVI-D, HDMI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, Cooler fan

 LE-37I3S

With i3-6100E, QM170 (TDP 35W), DisplayPort, VGA, DVI-D, HDMI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, Heat  spreader

LE-37I5S

With i5-6440EQ, QM170 (TDP 45W), DisplayPort, VGA, DVI-D, HDMI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, Heat spreader

LE-37I7S

With i7-6822EQ, QM170 (TDP 25W), DisplayPort, VGA, DVI-D, HDMI, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, LPC, GPIO, PS/2, SMBUS, Heat spreader

LE-37I3F

Same as LE-3713S, but with Cooler Fan

LE-37I5F

Same as LE-3715S, but with Cooler Fan

LE-37I7F

Same as LE-3717S, but with Cooler Fan

   ADP-3355NB

DisplayPort to VGA module, without bracket (For 2nd VGA)

   ADP-3460

DisplayPort to LVDS module (For 2nd LVDS)

 Note: There are two module (ADP-3355NB, ADP-3460), and you can choose one to support 2nd VGA or 2nd LVDS for OEM Model (Without DP).
