LN-D7O

Bay Trail Mobile Intel® Celeron™ J1900 / N2930 and Atom™ E3845

Nano-ITX Motherboard

Support  Bay Trail  Intel® Celeron™ J1900 / N2930 and Atom™ E3845 mobile CPU

, DDR3L up to 8GB, Onboard DisplayPort & DVI, CRT, 2 x LVDS, 1 x Giga LAN,

 3 x USB 2.0, 1 x USB 3.0, 6 x COM, HD Audio, 2 x SATAIl, 2 x SATAIII, GPIO,

1 x PCIE Mini card or mSATA, 1 x SIM slot.

-

Overview

-

Feature

-

Specification

-

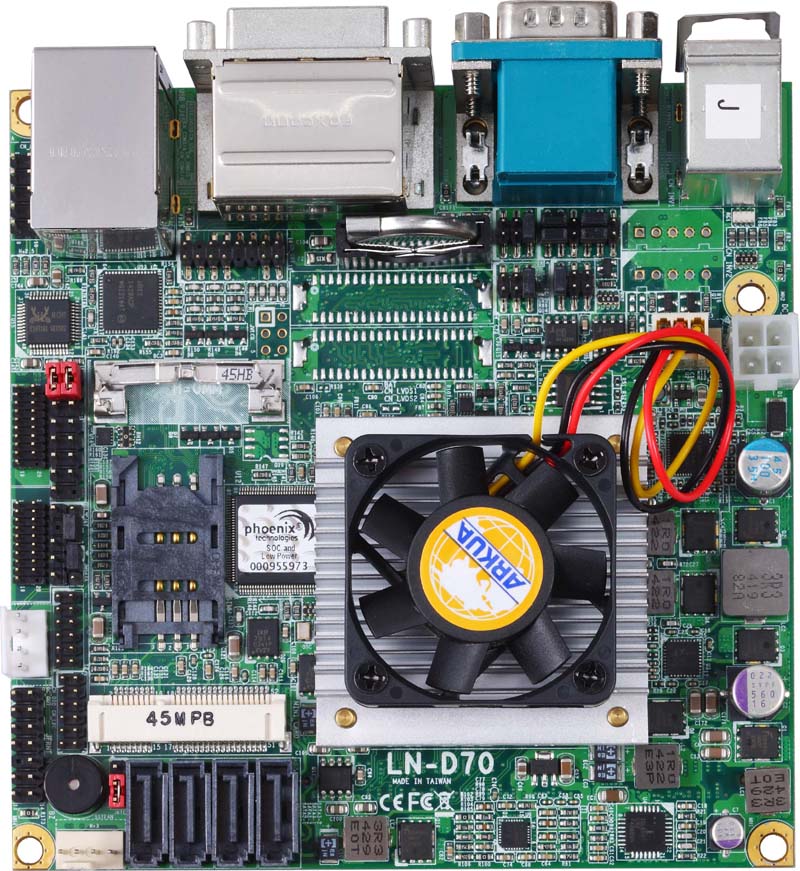

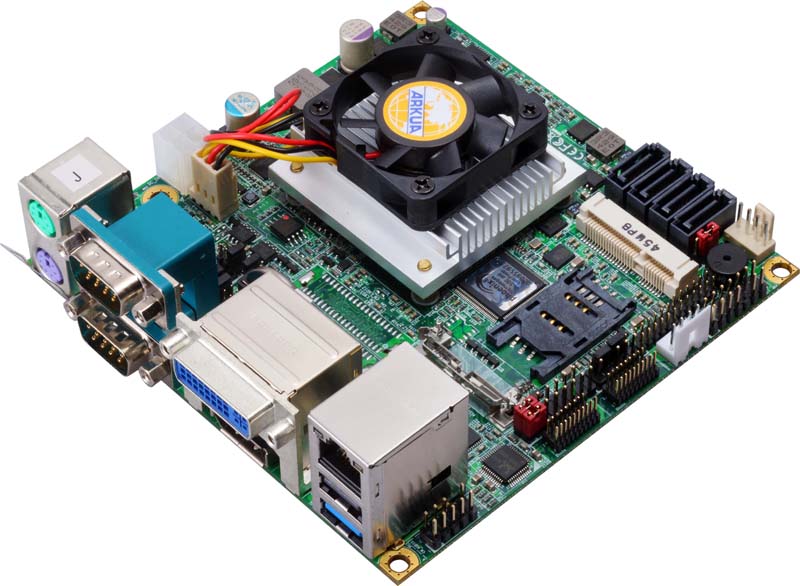

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Mini-ITX form factor LN-D70 embedded system board with the Intel®  Express chipset, which adopts the Bay Trail Intel® Celeron™ J1900 / N2930 and Atom™ E3845 processor family. The COMMELL LN-D70 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

The LN-D70 Mini-ITX is designed for the Bay Trail Intel® Celeron™ J1900/N2930 and Atom™ E3845 processors in the FCBGA1170 socket supporting one DDR3L SO-DIMM up to 8GB and running 1066/1333 Mhz No ECC function. The platform is based on  Intel® Intel® Clear Video that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LN-D70 supports CRT, LVDS, DVI and one DP port to provide its advanced solutions for imaging, machine vision and digital signage applications.

LN-D70 offers lots of features including high-speed data transfer interfaces such as 1 x USB3.0 and 2 x SATAII, 2 x SATAIII, equipped with 1 x Gigabit Ethernet, and comes with PS/2 Keyboard and Mouse port, 5 x RS232 and 1 x RS232/422/485, 3 x USB2.0, Intel® High Definition Audio, and 1 x PCIE Mini card or mSATA, 1 x SIM slot.

BackToTop

  Key Feature

• CPU: Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Mobile in the FCBGA1170  socket

• Memory: 1 x DDR3L (Support 1.35V) 1066/1333 MHz SO-DIMM up to 8 GB

• Integrated Graphics:  Intel® Clear Video integrated HD Graphics Technology

• DVI interface: Onboard DVI connector (DVI and LVDS1 can't enable simultanesouly)

• LVDS interface: 2 x Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

• DisplayPort interface: Onboard DisplayPort connector (DisplayPort and LVDS2 can't enable simultanesouly)

• LAN Interface: 1 x Intel® I210-AT Gigabit LAN

• Serial ATA: Support 2 x SATAII (3Gb/s) and 2 x SATAIII (6Gb/s)

• Internal I/O ports: 4 x RS232, 1 x GPIO, 2 x USB3.0, 1 x CRT, 1 x Audio, 1 x SMBUS, 1 x LPC, 2 x LVDS (optional), 2 x LCD inverter (optional), 2 x SATAII, 2 x SATAIII.

• External I/O ports: 1 x RS232, 1 x RS232/422/485, 1 x USB2.0, 1 x USB3.0, 1 x LAN,  1 x PS/2, 1 x DVI (optional), 1 x DisplayPort (optional).

• Extended interface: 1 x PCIE Mini card or mSATA, 1 x SIM slot.

• GPIO interfacet: Onboard programmable 8-bit Digital I/O interface.

• Power requirement: 6~27V 4-pin full range DC Input.

BackToTop

  Specification

Download Datasheet @ PDF format

BackToTop

  Ordering Guide

Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI, DisplayPort, CRT,   Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card,  SMBUS, GPIO, SIM, LPC, mSATA

Intel Celeron Processor J1900 (2M Cache, 2.42GHz), 2 x LVDS, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card, SMBUS, GPIO, SIM, LPC, mSATA

Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI, DisplayPort, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card, SMBUS, GPIO, SIM, LPC, mSATA

Intel Celeron Processor N2930 (2M Cache, 2.16GHz), 2 x LVDS, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card, SMBUS, GPIO, SIM, LPC, mSATA

Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, DisplayPort, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card, SMBUS, GPIO, SIM, LPC, mSATA

Intel Atom Processor E3845 (2M Cache, 1.91GHz), 2 x LVDS, CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card, SMBUS, GPIO, SIM, LPC, mSATA
