LP-174
 Pico-ITX with Mobile Intel® Broadwell (5th) / Haswell (4th) Core U-series Processor

Intel® Broadwell (5th) / Haswell (4th) Core Mobile U-series  Processor.
Onboard DisplayPort, LVDS, DVI, Gigabit LAN, USB3.0 & 2.0, HD Audio, LPC, PCIE Mini card
support mSATA

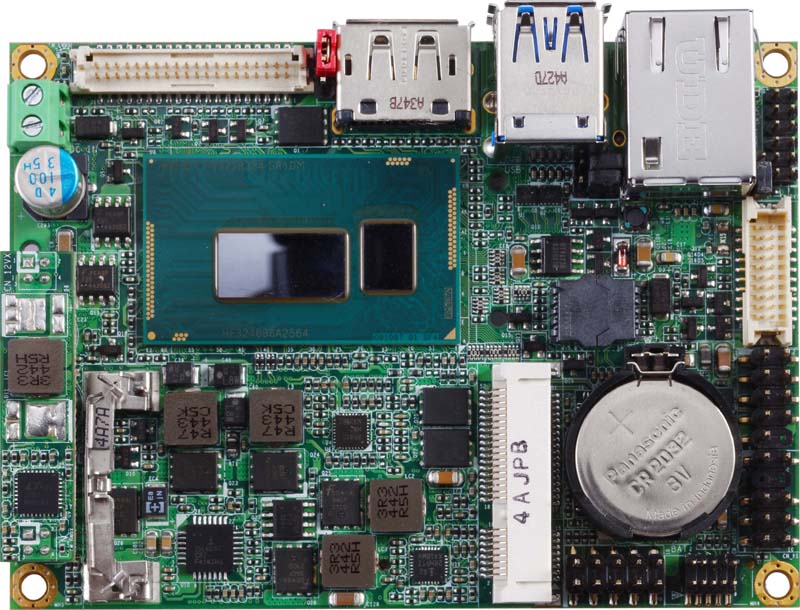

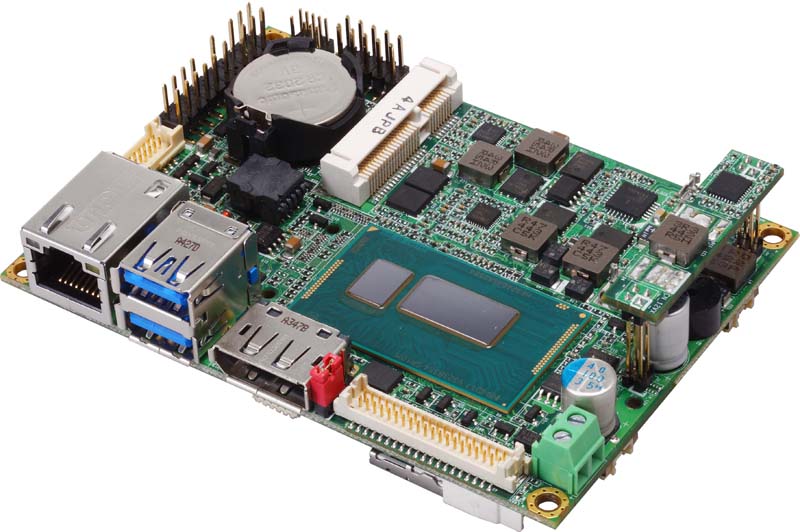

view larger image

-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Information
-
Datasheet (PDF format)
-
Technical Document
Overview

   Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Pico-ITX form factor LP-174 consists of the Intel® Broadwell (5th) / Haswell (4th) Core Mobile U-series, combined with the Intel®  Express chipset, Integrated Intel® Clear Video integrated HD Graphics Technology with integrated memory. The COMMELL LP-174 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

      The LP-174  Pico-ITX Motherboard is designed for the Bay Trail Intel® Broadwell (5th) / Haswell (4th) Core Mobile U-series  processors supporting one DDR3L SO-DIMM up to 8GB and running 1333/1600 Mhz No ECC function. The platform is based on Intel® 5th/4th Gen integrated HD Graphics Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LP-174 integrated DVI-D, Display port, LVDS for Triple display supports to provide its advanced solutions for imaging, machine vision and digital signage applications.





      LP-174 offers lots of features including high-speed data transfer interfaces such as 2 x USB 3.0, equipped with one Gigabit Ethernet, and it comes with PS/2 Keyboard and Mouse port, 2 x RS232, 2 x USB2.0, Intel® High Definition Audio,  one PCIE Mini card support  mSATA.

BackToTop



Key Feature
  • CPUIntel® Broadwell (5th) / Haswell (4th) Core U-series Processor

  • Memory: One DDR3L (support 1.35V) 1333/1600 SO-DIMM up to 8GB

  • Integrated Graphics:  Intel® 5th/4th Gen integrated HD Graphics

  • LVDS interface: Onboard 24-bit dual channel LVDS connector with +3.3V / +5V supply

  • Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate

  • AudioRealtek ALC888 HD Audio

  • LAN InterfaceIntel® I218-LM Gigabit LAN

  • Extended interface1 x PCIE mini card support mSATA.

  • Internal I/O: 1 x SATA3, 1 x DVI-D, 1 x LVDS, 1 x LCD inverter, 1 x PS/2,

    2 x RS232, 1 x LPC, 1 x SMBUS, 1 x Audio, 2 x USB2.01 x DC Out

  • Rear I/O: 1 x Display Port, 1 x LAN, 2 x USB 3.0

  • Power: 9~30V input or DC 12V(Optional)

BackToTop



Specification

Form Factor

Pico-ITX Motherboard

CPU

Intel® CoreTM processor i7-5650U, 3.20 GHz  ( LP-1747 )

Intel® CoreTM processor i5-5350U, 2.90 GHz  ( LP-1745 )

Intel® CoreTM processor i3-5010U, 2.10 GHz  ( LP-1743 )

Memory

1 x 204-pin DDR3L (support 1.35V) 1333/1600 SO-DIMM up to 8GB

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1min/s ~ 255min/s

Integrated Graphics

Intel® 5th/4th Gen integrated HD Graphics

 DVI Interface   10 x 2-pin DVI connector.

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V / +5V supply

Serial ATA Interface

1 x SATA3 with 600MB/s (6Gb/s) transfer rate

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

1 x Intel® I218-LM Gigabit LAN (Support iAMT10)

Expansion Interface

1 x PCIE Mini card support mSATA

Internal I/O

1 x SATA3, 1 x DVI-D, 1 x LVDS, 1 x LCD inverter, 1 x PS/2,

2 x RS232, 1 x LPC, 1 x SMBUS, 1 x Audio, 2 x USB2.0

1 x DC Out

Rear I/O

1 x Display Port, 1 x LAN, 2 x USB 3.0

Power Requirement

9~30V input or DC 12V(Optional)

Size & Thickness

100mm x 72mm (L x W), 1.6mm

 Temperature

Operating within 0°C ~ 60°C (32°F~140°F)

Storage within -20°C~ 80°C (-4°F~176°F)

Relative Humidity

 10%~90%, non-condensing

Download Datasheet @ PDF format

BackToTop

Ordering Information
Standard

Intel® 5th/4th Gen Core U-series Processor, DVI, DisplayPort, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA, LAN, Audio, SATA3, COM, LCD inverter, SMBUS, LPC, PS/2, DC Out.

Ordering code

LP-1747: i7-5650U Processor

LP-1745: i5-5350U Processor

LP-1743: i3-5010U Processor
