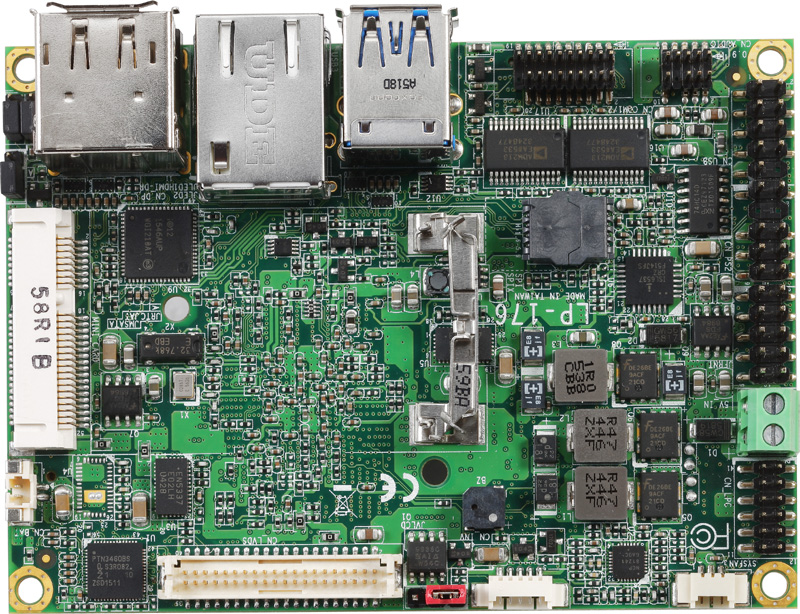

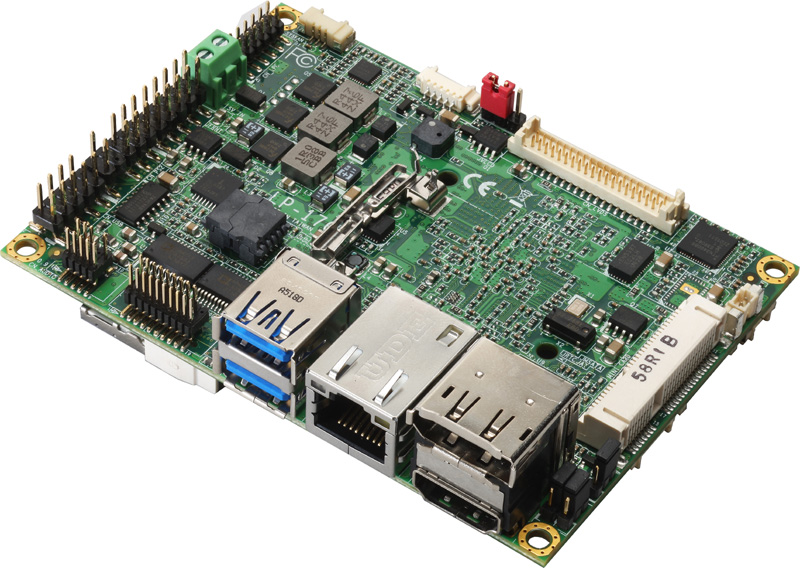

Pico-ITX with Intel® Braswell series Processor
Intel® Braswell series Processor.
Onboard HDMI, LVDS, Gigabit LAN, USB3.0 & 2.0, HD Audio, LPC, PCIE Mini card support
mSATA
|
Overview |
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide leader
of Industrial Single Board Computers, launched a
Pico-ITX
form factor LP-176 consists of the Intel®
Braswell
series, combined with the
Intel® Express chipset, Integrated Intel® integrated HD Graphics
Technology with integrated memory.
The COMMELL LP-176 platform
provides excellent CPU, graphics, media performance,
flexibility, and enhanced security, is ideally suited to
applications requiring multi-tasking capabilities, such
as gaming, surveillance, medical, defense,
transportation and industrial automation application.
The
LP-176 Pico-ITX
Motherboard is
designed for Intel®
Braswell
series
processors
supporting
one DDR3L SO-DIMM up to
8GB
and running 1600 MHz No ECC function. The platform is based on Intel®
integrated HD Graphics Technology that provides high-end media and
graphics capabilities for devices that display videos,
2D/3D graphics and interactive content. In addition,
LP-176
integrated optional DisplayPort, HDMI, LVDS for Triple display
supports
to provide its advanced solutions for imaging, machine
vision and digital signage applications.
LP-176 offers lots of
features including high-speed data transfer interfaces
such as
2 x USB
3.0, equipped with
one Gigabit Ethernet, and
it comes with PS/2 Keyboard and Mouse port,
2 x RS232,
2 x USB2.0, Intel® High Definition Audio, 1 x PCIE
Mini card socket or mSATA. |
|
BackToTop |
Key Feature |
-
CPU: Intel® Braswell series Processor N3710 / X5-E8000,
FCBGA1170 package -
Memory:
1 x DDR3L
(support 1.35V) 1600
SO-DIMM up to 8GB -
Integrated Graphics: Intel® integrated HD Graphics -
LVDS
interface: Onboard 24-bit dual channel LVDS connector
with +3.3V / +5V supply -
Serial
ATA: Support 1
x
SATA3 with
600MB/s
(6Gb/s) transfer rate -
Audio: Realtek ALC262 HD Audio -
LAN
Interface: Intel®
I210-AT Gigabit LAN -
Extended
interface: 1
x PCIE mini card socket
(Support mSATA). -
Internal I/O:
1
x SATA3, 1
x LVDS,
1 x LCD inverter, 1 x PS/2,
2 x RS232,
1 x LPC,
1 x SMBUS, 1 x Audio,
2
x USB2.0,
1 x VGA(Optional)
-
Rear
I/O: 1 x
LAN, 2 x
USB3.0,
1 x HDMI,
1 x
DisplayPort(Optional) -
Power: DC input 5V ± 5% |
|
BackToTop |
Specification |
|
Form Factor |
Pico-ITX
Motherboard |
|
CPU |
Intel® Pentium® CoreTM
processor
N3710,
1.60
GHz ( LP-176N series )
Intel®
Atom® CoreTM processor
X5-E8000,
1.04
GHz ( LP-176E series
) |
|
Memory |
1
x 204-pin DDR3L
(support 1.35V)
1600 SO-DIMM
up to
8GB |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery |
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1min/s ~ 255min/s |
|
Integrated Graphics |
Intel®
integrated HD Graphics |
|
LVDS
Interface
|
Onboard 24-bit dual channel LVDS connector with +3.3V
/
+5V
supply |
|
Serial
ATA Interface
|
1
x SATA3 with
600MB/s
(6Gb/s) transfer rate |
|
Audio
Interface |
Realtek ALC262 HD Audio |
|
LAN Interface |
1 x Intel® I210-AT Gigabit LAN |
|
Expansion
Interface |
1 x PCIE Mini card
(Support
mSATA) |
|
Internal I/O |
1
x SATA3, 1
x LVDS,
1 x LCD inverter, 1 x PS/2,
2 x RS232,
1 x LPC,
1 x SMBUS, 1 x Audio,
2
x USB2.0,
1 x VGA(Optional) |
|
Rear
I/O |
1 x
LAN, 2 x
USB 3.0, 1 x HDMI,
1 x
DisplayPort(Optional) |
|
Power Requirement |
DC input 5V ± 5% |
|
Size & Thickness |
100mm x
72mm (L x W), 1.6mm |
|
Temperature |
Operating
within 0°C ~
60°C (32°F~140°F)
Storage within
-20°C~ 80°C
(-4°F~176°F) |
|
Relative Humidity |
10%~90%, non-condensing | |
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Information |
LP-176NXIP |
Intel® Pentium® Core™ Processor N3710
+ Heat spreader, support HDMI,
LVDS,
DisplayPort |
LP-176EXIP |
Intel® Atom® Core™ Processor X5-E8000
+ Heat spreader, support HDMI,
LVDS,
DisplayPort |
LP-176NXIT |
Intel® Pentium® Core™ Processor N3710
+ Heat spreader, support HDMI,
LVDS,
11pin socket (connect to ADP-3355 for VGA) |
LP-176EXIT |
Intel® Atom® Core™ Processor X5-E8000
+ Heat spreader, support HDMI,
LVDS,
11pin socket (connect to ADP-3355 for VGA) |
LP-176NXIP-4G |
Same as LP-176NXIP, but with DDR3L-1600-4G-SODIMM Module |
LP-176EXIP-4G |
Same as LP-176EXIP, but with DDR3L-1600-4G-SODIMM Module |
LP-176NXIT-4G |
Same as LP-176NXIT, but with DDR3L-1600-4G-SODIMM Module |
LP-176EXIT-4G |
Same as LP-176EXIT, but with DDR3L-1600-4G-SODIMM Module |
LP-176NXIP-8G |
Same as LP-176NXIP, but with DDR3L-1600-8G-SODIMM Module |
LP-176EXIP-8G |
Same as LP-176EXIP, but with DDR3L-1600-8G-SODIMM Module |
LP-176NXIT-8G |
Same as LP-176NXIT, but with DDR3L-1600-8G-SODIMM Module |
LP-176EXIT-8G |
Same as LP-176EXIT, but with DDR3L-1600-8G-SODIMM Module |
ADP-3355 |
DisplayPort to VGA. |
ADP-3355 NB |
DisplayPort to VGA, without bracket |
DC-DC6 |
DC 12V to DC 5V, 40W Converter Module with Heat spreader, Terminal
block, provides 12V connector for LCD inverter | BackToTop
