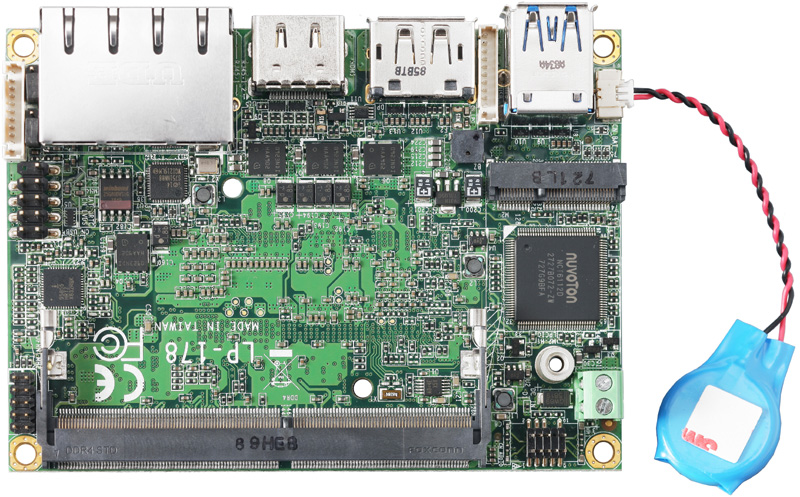

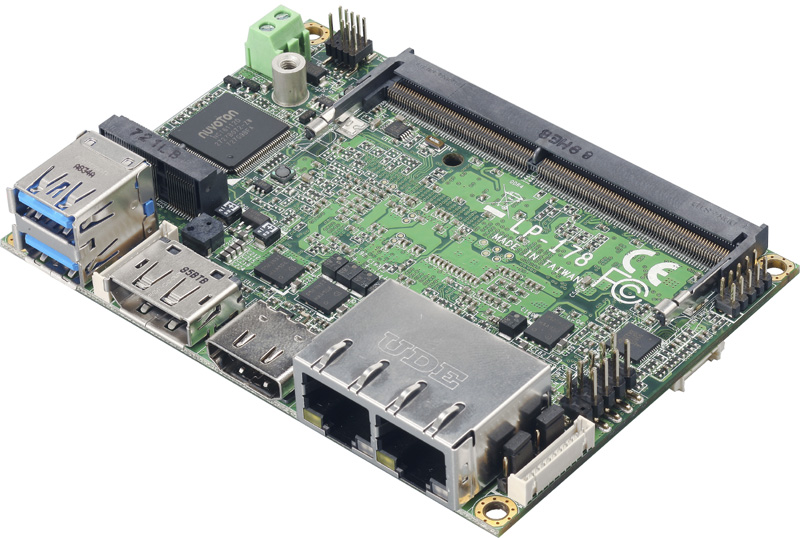

Pico-ITX motherboard with Intel® Whiskey Lake U Processor
Intel® Whiskey Lake U Processor.
Onboard HDMI, DisplayPort, Gigabit LAN, USB3.1 Gen2 & 2.0, HD Audio, LPC, M.2 (Key E)
|
Overview |
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide leader
of Industrial Single Board Computers, launched a
Pico-ITX
form factor LP-178 consists of the Intel®
Whiskey Lake U processor, combined with the
Intel® Express chipset, Integrated Intel® integrated HD Graphics
Technology with integrated memory.
The COMMELL LP-178 platform
provides excellent CPU, graphics, media performance,
flexibility, and enhanced security, is ideally suited to
applications requiring multi-tasking capabilities, such
as gaming, surveillance, medical, defense,
transportation and industrial automation application.
The
LP-178 Pico-ITX
Motherboard is
designed for Intel®
Whiskey Lake U processor
supporting
one DDR4 SO-DIMM up to
32GB
and running
2400 MHz No ECC function. The platform is based on Intel®
integrated HD Graphics Technology that provides high-end media and
graphics capabilities for devices that display videos,
2D/3D graphics and interactive content. In addition,
LP-178
integrated optional DisplayPort, HDMI for
double display
supports
to provide its advanced solutions for imaging, machine
vision and digital signage applications.
LP-178 offers lots of
features including high-speed data transfer interfaces
such as
2 x USB
3.1 Gen2, equipped with
1 x Gigabit Ethernet,
1 x Gigabit
PHY
Ethernet
and
it comes with 2 x RS232,
2 x USB2.0, Intel® High Definition Audio, 1 x
M.2 (Key E). |
|
BackToTop |
Key Feature |
-
CPU: Intel® Whiskey Lake U Processor, FCBGA1528 package. -
Memory:
1 x
DDR4
2400
SO-DIMM up to
32GB -
Integrated Graphics: Intel®
Gen
9.5 integrated HD Graphics -
DisplayPort interface: Onboard DisplayPort
connector. -
HDMI interface: Onboard HDMI connector. -
LVDS
or VGA
interface:
11-pin
connector (For ADP-3460E or ADP-3355) -
Serial
ATA: Support 1
x
SATA3 with
600MB/s
(6Gb/s) transfer rate -
Audio: Realtek ALC262 HD Audio -
LAN
Interface: 1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN. -
Extended
interface: 1
x
M.2
(Key E) for Wi-Fi and Bluetooth 2230mm. -
Internal I/O:
1
x SATA3,
2 x RS232,
1 x LPC,
1 x SMBus, 1 x Audio,
2
x USB2.0,
1
x Header for LVDS or VGA module (For ADP-3460E or ADP-3355) -
Rear I/O: 2 x
LAN, 2 x
USB 3.1 Gen2,
1 x HDMI,
1 x DisplayPort -
Power: DC input
12V ± 5% |
BackToTop |
Specification |
|
Form Factor |
Pico-ITX
Motherboard |
|
CPU |
Intel® Whiskey Lake U Processor, FCBGA1528
package |
|
Memory |
1
x 260-pin DDR4
2400 SO-DIMM
up to
32GB |
|
Real
Time Clock
|
Chipset
integrated RTC with lithium battery |
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1min/s ~ 255min/s |
|
Integrated Graphics |
Intel®
Gen
9.5
integrated HD Graphics |
|
Serial
ATA Interface
|
1
x SATA3 with
600MB/s
(6Gb/s) transfer rate |
|
Audio
Interface |
Realtek ALC262 HD Audio |
|
LAN Interface |
1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT
Gigabit LAN |
|
Expansion
Interface |
1 x
M.2
(Key E) for Wi-Fi and Bluetooth 2230mm |
|
Internal I/O |
1
x SATA3,
2 x RS232,
1 x LPC,
1 x SMBus, 1 x Audio,
2
x USB2.0,
1
x Header for LVDS or VGA module
(For ADP-3460E or ADP-3355) |
|
Rear
I/O |
2 x
LAN, 2 x
USB 3.1 Gen2, 1 x HDMI,
1 x
DisplayPort |
|
Power Requirement |
DC input
12V ± 5% |
|
Size & Thickness |
100mm x
72mm (L x W) |
|
Temperature |
Operating
within 0°C ~
60°C (32°F~140°F)
Storage within
-20°C~ 80°C
(-4°F~176°F) |
|
Relative Humidity |
10%~90%, non-condensing | |
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Information |
LP-1787 |
With i7-8665UE +
Cooler fan,
support HDMI,
DP, Header for VGA or LVDS (Note) |
LP-178C |
With Celeron 4305UE +
Cooler fan,
support HDMI,
DP, Header for VGA or LVDS (Note) |
ADP-3355 |
DP to VGA module |
|
ADP-3460E | DP to LVDS
module for LP-178 | Note: There are two modules ADP-3355
and ADP-3460E, and you can choose one to support VGA or LVDS |
