LP-179
 Pico-ITX motherboard with Intel® Tiger Lake UP3 Processor

Intel® Tiger Lake UP3 Processor.
Onboard HDMI, DisplayPort, Gigabit LAN, USB3.2 Gen2 & USB2.0, HD Audio, M.2 (Key E & M)
Support OpenVINO for AI Computing.

view larger image

-
Overview
-
Feature
-
Specification
-

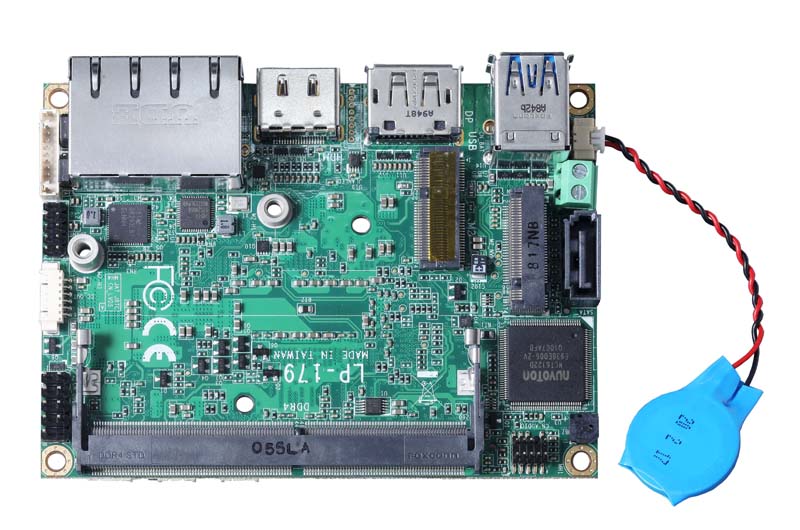

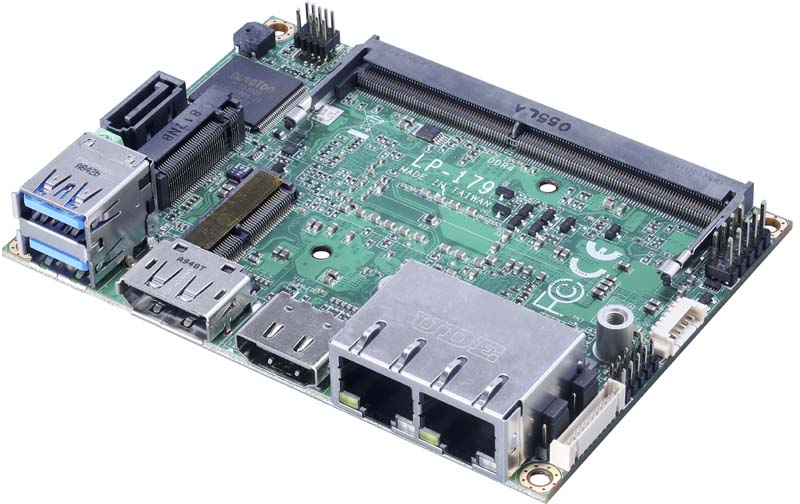

Product Image
-
Ordering Information
-
Datasheet (PDF format)
-
Technical Document
Overview

   Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Pico-ITX form factor LP-179 consists of the Intel® Tiger Lake UP3 processor, combined with the Intel®  Express chipset, Integrated Intel® Iris® Xe Graphics Technology. The COMMELL LP-179 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

      The LP-179 Pico-ITX Motherboard is designed for Intel®  Tiger Lake UP3 processor supporting one DDR4 SO-DIMM up to 32GB and running 3200 MHz No ECC function. The platform is based on Intel® UHD Graphics Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LP-179 integrated DisplayPort, HDMI for double display supports to provide its advanced solutions for imaging, machine vision and digital signage applications.





      LP-179 offers lots of features including high-speed data transfer interfaces such as 2 x USB 3.2 Gen2, equipped with one Gigabit Ethernet, one Gigabit PHY Ethernet and it comes with 2 x RS232, 2 x USB2.0, Intel® High Definition Audio, one M.2 (Key E 2230) and M.2 (Key M 2280).

BackToTop



Key Feature
  • CPUIntel®  Tiger Lake UP3 Processor, FCBGA1449 package.

  • Memory: 1 x DDR4 3200 SO-DIMM up to 32GB

  • Integrated GraphicsIntel® UHD Graphics

  • DisplayPort interface: Onboard DisplayPort connector.

  • HDMI interface: Onboard HDMI connector.

  • LVDS or VGA interface: 11-pin connector (For ADP-3460E or ADP-3355)

  • Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate

  • AudioRealtek ALC262 HD Audio

  • LAN Interface1 x Intel® i219-LM Gigabit PHY LAN (support Intel® iAMT 15.0), 1 x Intel® i225-LM Gigabit LAN(up to 2.5GbE).

  • Extended interface1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth, 1 x M.2 2280 (Key M) support PCIe Gen4 for NVMe.

  • Internal I/O: 1 x SATA3, 2 x RS232, 1 x SMBus, 1 x Audio, 2 x USB2.0, 1 x RJ45 LED Connector, 1 x Header for LVDS or VGA module (For ADP-3460E or ADP-3355)

  • Rear I/O: 2 x LAN, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DisplayPort

  • Power: DC input 12V ± 5%

BackToTop



Specification

Form Factor

Pico-ITX Motherboard

CPU

Intel® Tiger Lake UP3 Processor, FCBGA1449 package

Memory

1 x 260-pin DDR4 3200 SO-DIMM up to 32GB

Real Time Clock

Chipset integrated RTC with lithium battery

Watchdog Timer

Generates a system reset internal timer for 1min/s ~ 255min/s

Integrated Graphics

Intel® UHD Graphics

Serial ATA Interface

1 x SATA3 with 600MB/s (6Gb/s) transfer rate

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® i219-LM Gigabit PHY LAN (support Intel® iAMT 15.0)

1 x Intel® i225-LM Gigabit LAN (up to 2.5GbE)

Expansion Interface

1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth

1 x M.2 2280 (Key M) support PCIe Gen4 for NVMe

Internal I/O

1 x SATA3, 2 x RS232, 1 x SMBus, 1 x Audio, 2 x USB2.0, 1 x RJ45 LED Connector, 1 x Header for LVDS or VGA module (For ADP-3460E or ADP-3355)

Rear I/O

2 x LAN, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DisplayPort

Power Requirement

DC input 12V ± 5%

Size & Thickness

100mm x 72mm (L x W)

 Temperature

Operating within 0°C ~ 60°C (32°F~140°F)

Storage within -20°C~ 80°C (-4°F~176°F)

Relative Humidity

 10%~90%, non-condensing
Note: If you want to use other TGL UP3 CPU (i7-1185GRE, i5-1145GRE, i5-1145G7E, i3-1115GRE, i3-1115G4E), please contact with our sales.

Download Datasheet @ PDF format

BackToTop

Ordering Information

LP-1797

With i7-1185G7E + Cooler fan, support HDMI, DP, Header for VGA or LVDS (Note)

LP-179C

With Celeron 6305E + Cooler fan,  support HDMI, DP, Header for VGA or LVDS (Note)

ADP-3355

DP to VGA module

ADP-3460E

 DP to LVDS module for LP-179

    Note: There are two modules ADP-3355 and ADP-3460E, and you can choose one to   support VGA or LVDS
