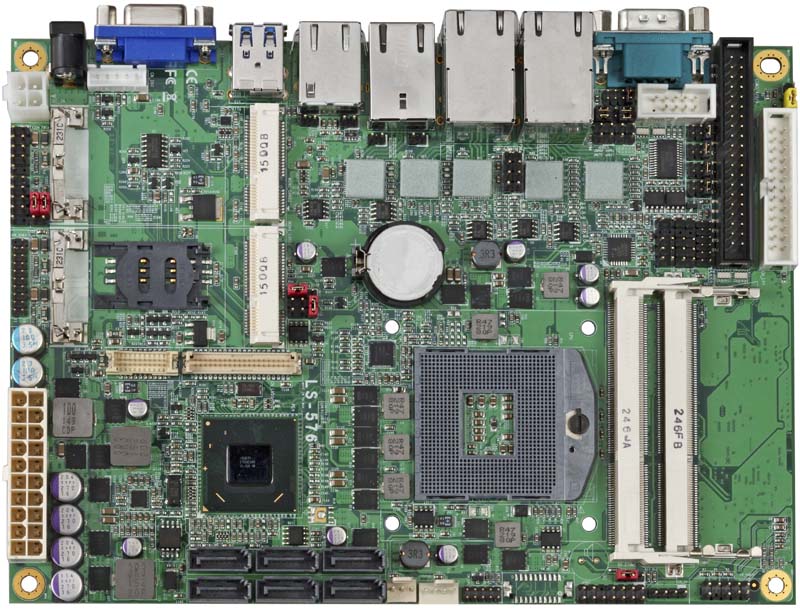

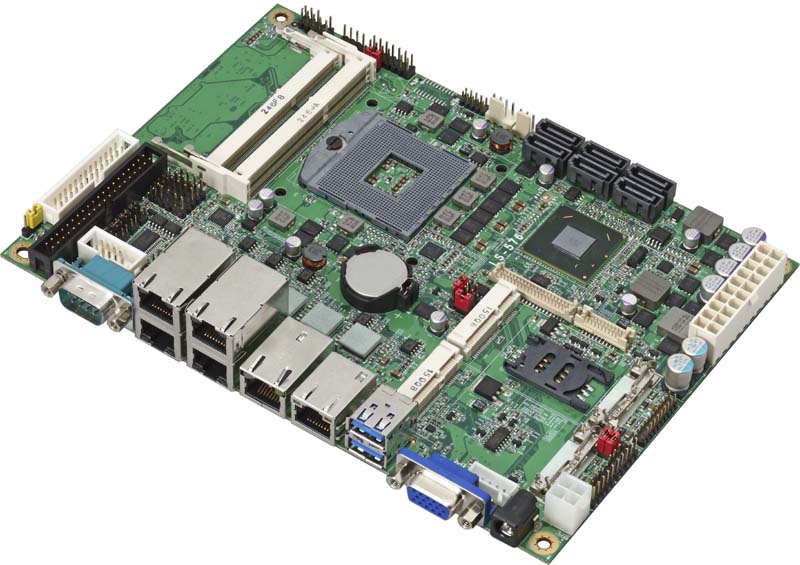

LS-576
3rd generation Intel® Core™ i7 / i5 / i3  5.25" Embedded SBC

Support  3rd generation  Intel® Core i7 / i5 / i3 / Mobile CPU with
Mobile Intel® QM77 Express, DDR3 up to 16GB, 6 x Giga LAN, 4 x USB 2.0,
4 x USB 3.0 , 6 x COM, 6 x SATA, HD Audio, Mini-PCIe socket,
Standard 20-pin ATX P/S or DC 9 ~ 24V input

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched LS-576  ---  5.25" SBC with QM77

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial The 5.25"  mini-board ,  LS-576 designed for the 3rd generation Intel Core i7/i5/i3 processors in the rPGA988B socket. The 5.25" SBC based on intel QM77 Express chipset, QM77 Express chipset is part of the mobile Intel 7 Series Chipset family, along with a intel 3rd generation 22 nm Core i7/i5/i3, the Intel processors  with HD Graphic 4000 that contains a refresh of the seventh generation graphics core, DX11 Smoother rendering at higher resolutions for an improved 3D experience, OGL4.X  Improved realism for OGL 3D . based application and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly.

LS-576 is supports 16GB DDR3 SO-DIMM memory, comes with DVI, VGA & LVDS, 6 x Giga LAN, 4 SATA2 & 2 SATA3, HD Audio, 5 x RS232 & 1 x RS232/422/485, 4 x USB2.0,4 x USB3.0,  GPIO and two PCIE mini card expansion socket.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology, ex. i7-3610QE

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf



BackToTop

  Key Feature
  • CPUIntel® 3rd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket

  • MemoryTwo DDR3 1006/1333/1600 MHz up to 16 GB

  • Chipset: Mobile Intel® QM77 Express chipset

  • Integrated GraphicsIntel® Core™ integrated HD Graphics 4000 Technology

  • VGA InterfaceOnboard DSUB15 connector for VGA interface

  • LVDS interface: onboard 24-bit dual channel LVDS interface

  • DVI interface: onboard DVI interface

  • LAN Interface5 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN(Support iAMT8.0)

  • Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII )

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports,

          4 x USB3.0 ports, 1 x DB15 VGA port .

  • Extended interface: 2 x Mini-PCIe sockets (Optional support mSATA(SATAII) for Mini_Card1,but SATA6 will be disable),  1 x SIM socket .

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Power requirement : Standard 20-pin ATX P/S or DC 9 ~ 24V input

BackToTop

  Specification


Form Factor

5.25" SBC

Processor

3rd generation Intel® Core i7 / i5 / i3 Mobile processor

Package Type: rPGA988B

Memory

2 x DDR3 1066/1333/1600 SO-DIMM up to 16 GB

Chipset

Mobile Intel® QM77 Express chipset

Integrated Graphics

Intel® Core™ integrated HD Graphics 4000 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 3.0 compliant

Serial ATA Interface

4 x Serial ATA ll interface up to 300MB/s

2 x SATAlll interface up to 600MB/s. Total 6 x SATA interface

VGA Interface

Onboard DSUB15 connector for VGA interface

LVDS Interface

Onboard 24-bit dual channel LVDS interface

 DVI Interface  Onboard 20-pin DVI interface

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

5 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

2 x Mini-PCIe sockets,   1 x SIM socket.

Internal I/O Port

4 x RS232, 1 x RS232/422/485,1 x PS/2 keyboard/mouse,
1 x Parallel,1 x GPIO, 1 x CDIN, 1 x SMBus,

1 x IrDA, 4 x USB2.0 ,2 x USB3.0 , 4 x Serial ATAII,

2 x Serial ATAIII, 1 x Front panel Audio and 1 x CDIN

External I/O Port

6 x RJ45 LAN, 1 x VGA, 2 x USB3.0,

1 x RS232, , 1 x DC connector

Power Requirement

Standard 20-pin ATX power supply or DC 9 ~ 24V input

Board Dimension

203 mm x 146 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LS-576TXD

PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0, USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, GPIO and PCI Express mini card.

LS-576TXDS

PGA988B+ QM77 Onboard VGA, LVDS, DVI, LAN, USB2.0, USB3.0, HD Audio, SATAII ,SATAIII, SMBUS, LPC, GPIO, PCI Express mini card and mSATA.

CMB-576

Barebone system with LS-576TXD & CPU cooling fan .
