LV-667


VIA CN400 with DDR266/333/400 Onboard VGA, Dual LAN, Mini-AGP
SATA, IEEE 1394, USB 2.0, 4 x COM, AC97 5.1Channel Audio


-
overview

-
Feature

-
Specification

-

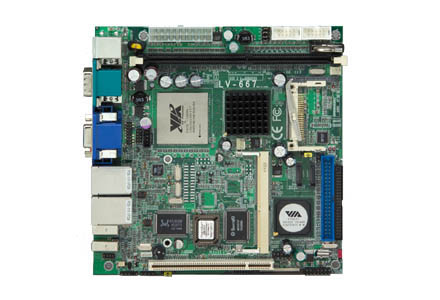

Product Image

-
Ordering Guide

-
Datasheet (PDF format)

-
Technical Document



Overview

Taiwan Commate Computer Inc. (COMMELL)a leading provider of Mini-ITX platform solution, today announced the intrduction of the new  embeded LV-667 advanced digital media  Mini-ITX  mainboard , designed to meet the needs of  applications on the rapidly emerging new generation of smart digital entertainment devices such as PVRs , set top boxes, gaming machine , Kiosk and media centers , even NAS, POS and ATM application is suitable.

COMMELL's  LV-667 is based on VIA C3 (VIA Eden CPU option), supports for up to 1GB of DDR 400/333/266 SDRAM  with the acclaimed FastStream64 memory  controoler, and high speed Ultra-Link interface for  a 1GB/s connection to VIA 's  feature-leading South Bridge options.  integrating the S3 Graphics UniChrome Pro IGP graphics core, the LV-667 leverages the advanced hardware MPEG-2 and MPEG -4 acceleration features on all display type from CRT and LCD  screens to standard definition TV anf HDTVs.

Through the onboard VT8237 South Bridge, the LV-667 offers a comprehensive rang of interacted storage, multimedia and connectivity option, including Serial ATA , UltraDMA IDE, USB 2.0, 2 x 10/100Mbps LAN , 4 x COM , 3 x IEEE1394 and V-RAID with support for RAID  configurations , The board also support for 6 channel AC97 Audio and DVI or HDTV Interface , also offers LVDS Interface from Mini-AGP slot. Additionally, LV-667 is also equipped with Compactflash for easily using Solid State Disk.

BackToTop

Feature
  • CPU: Onboard embedded VIA C3 1.00 GHz CPU

  • Memory: 1 x 184-pin DDR266/333/400 SDRAM up to 1.0GB.

  • Chipset: VIA CN400 and VT8237

  • PCI Enhanced IDETwo UltraATA/100 channel up to 4 ATAPI .

  • I/O Ports: 4 x RS232 Serial Ports, 4 x USB2.0 ports, 1 x DB15 VGA port,1 x  PS/2 keyboard and mouse ports.

  • DVI Interface: Optional onboard DVI interface(LV-667D)

  • TV-out Interface:Optional onboard SDTV/HDTV interface(LV-667T)

  • LVDS Interface:Optional 18/24-bit LVDS interface with Mini-AGP add-on card for LV-667

  • IEEE1394: 3 x IEEE1394 ports with VIA VT6306 MAC/PHY

  • GPIO Interface: Onboard programmable 8-bit Digital I/O interface.

  • LAN Interface1 x VIA VT6103 10/100Mbps PHY.1 x Realtek 8100B 10/100Mbps PCI controller.

BackToTop

Specification
  • Form Factor: Mini-ITX with 6.7 x 6.7 inches (17 x 17 cm) of dimension

  • Onboard embedded VIA C3 1.00GHz CPU.

  • DRAM: 1 x 184-pin DDR266/333/400 SDRAM up to 1 GB .

  • Chipset: VIA CN400 and VT8237

  • PCI Enhanced IDE: Two UltraATA/100 IDE channels up to 4 ATAPI.

  • I/O Ports: 4 x  RS232C serial port, 4 x USB 2.0, 1 x DB15 VGA, 1x PS/2 keyboard and mouse ports

  • DVI Interface: Optional onboard DVI interface (667D)

  • TV-out Interface: Optional onboard SDTV/HDTV interface (667T)

  • LVDS Interface: Optional 18/24-bit LVDS interface with Mini-AGP add-on card.

  • IEE1394: 3 x IEEE1394 ports with VIA VT6306 MAC/PHY

  • GPIO Interface: Onboard programable 8-bit Digital I/O interface.

  • LAN Interface: 1 x VIA VT6103 10/100Mbps PHY, 1 x Realtek 8100B 10/100Mbps PCI controller

  • SSD:   CompactFlash Type-II socket

  • Watchdog Timer: Winbond W83697UF with system generates 256 level reset

  • Expansive Interface: 1 x Slim PCI slot , 1 x Mini-AGP

  • Power Requirement: Standard 20-pin ATX power supply

Download datasheet @ pdf format

BackToTop



Ordering Guide


 LV-667

Mini-ITX Embedded with EBGA  VIA C3 1G MHz CPU, VGA,SATA,

Audio,Dual LAN,CF ,IEEE 1394 and Mini-AGP

 LV-667T

Mini-ITX Embedded with EBGA  VIA C3 1G MHz CPU, VGA,SATA,

Audio,Dual LAN,CF ,IEEE 1394 and HDTV

    LV-667D

Mini-ITX Embedded with EBGA  VIA C3 1G MHz CPU, VGA,SATA,

Audio,Dual LAN,CF ,IEEE 1394 and DVI interface

   LV-667E8

Same with LV-667   but with embedded Eden ESP8000 processor (Fanless)
   LV-667E8D Same with LV-667D but with embedded Eden ESP8000 processor (Fanless)
   LV-667E8T Same with LV-667T but with embedded Eden ESP8000 processor (Fanless)

 MA-1631X

18/24-bits LVDS Mini-AGP add-on card for LV-667
