LV-6712

Mini-ITX  Motherboard support  Intel® Tiger Lake UP3 Processor

Support Intel® Tiger Lake UP3 Processor.

DDR4 up to 64 GB, onboard HDMI, LVDS, DisplayPort, 1 x Giga LAN, 1 x Giga PHY LAN,

 4 x USB 2.0, 4 x USB 3.2 Gen2, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 2 x SATA3,

GPIO, SMBus, PCIe X1, 2 x Mini-PCIe socket (one support mSATA), 1 x M.2 2280(Key M),

Support OpenVINO for AI Computing.

-

Overview

-

Feature

-

Specification

-

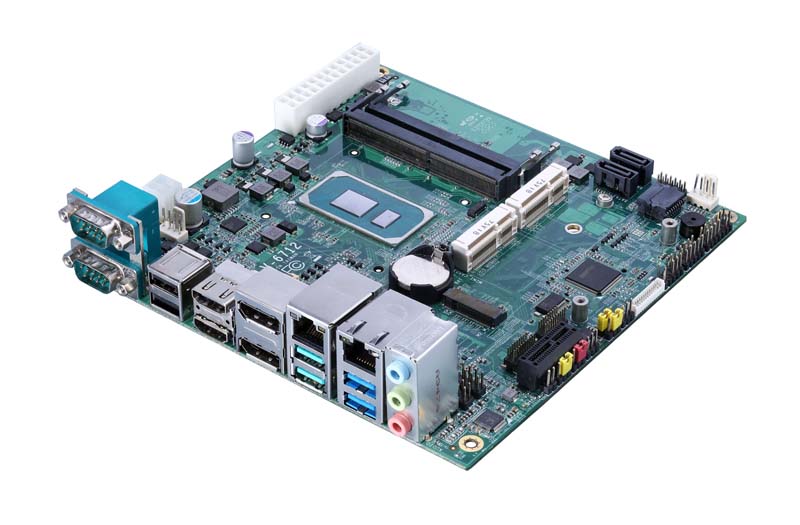

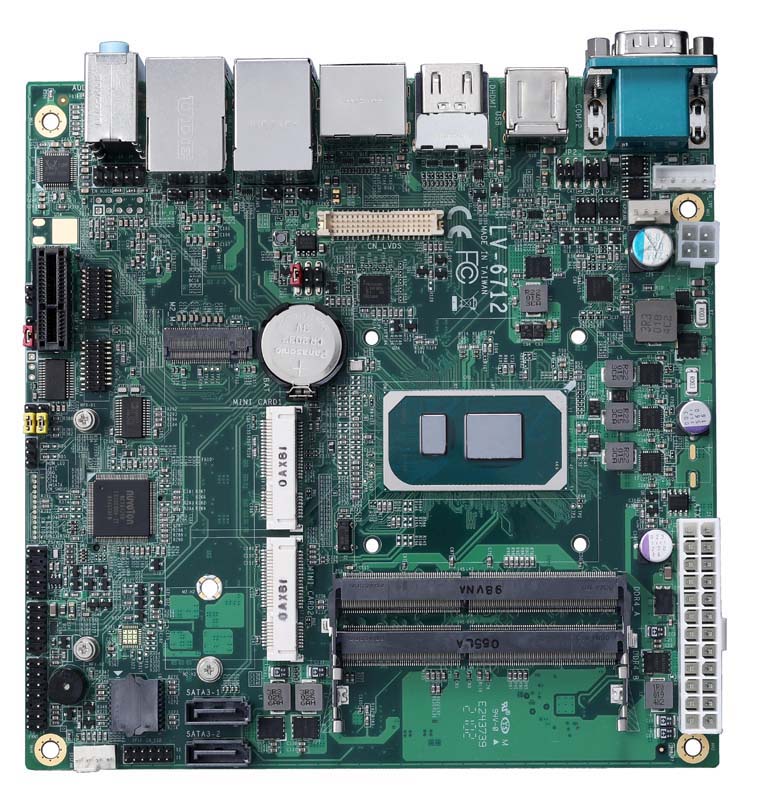

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LV-6712 Mini-ITX embedded system board based with Intel® Tiger Lake UP3 Processor.

Support DDR4 memory (Two DDR4 SO-DIMM 3200 MHz up to 64GB).

The platform is based on Intel® Iris® Xe Graphics, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one LVDS, two HDMI, and two DP, up to four displays can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LV-6712 offers lots of features including high-speed data transfer interfaces such as 4 x USB3.2 Gen2 and 2 x SATAIII, equipped with dual Gigabit Ethernet and comes with PS/2 port, 4 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCIE X1 slot, 2 x MiniPCIe socket (Minicard 2 support mSATA), 1 x M.2 (Key M 2280).

BackToTop

  Key Feature

• CPU: Intel® Tiger Lake UP3 Processor, FCBGA1449 package.

• Chipset: Intel® Iris® Xe Graphics.

• Memory: 2 x DDR4 SO-DIMM 3200MHz up to 64GB, support Non-ECC, unbuffered memory.

• DisplayPort interface: Onboard DisplayPort connector.

• LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

• HDMI interface: Onboard HDMI connector.

• LAN Interface: 1 x Intel® I219-LM Gigabit PHY LAN, 1 x Intel® I225-LM Gigabit LAN (up to 2.5GbE).

• Serial ATA: Support 2 x SATA3.

• Audio: Realtek ALC262 HD Audio.

• Internal I/O: 2 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBus

• Rear I/O: 2 x HDMI, 2 x DisplayPort, 2 x USB2.0, 4 x USB3.2 Gen2, 2 x LAN, 1 x Audio, 2 x RS232/422/485.

• Extended interface: 1 x PCIE X 1 slot, 2 x PCIe Mini card (Minicard 2 supports mSATA), 1 x M.2 (Key M).

• GPIO interface: Onboard programmable 8-bit Digital I/O interface.

• External Audio: Line-in, Line-out, MIC-in.

• Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or 4-pin DC 9~35V full range support.

BackToTop

  Specification

Realtek ALC262 HD Audio

 Note: If you want to use other TGL UP3 CPU (i7-1185GRE,i5-1145GRE,i5-1145G7E,i3-1115GRE,i3-1115G4E), please contact with our sales.

Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67127

With i7-1185G7E + Cooler fan, support HDMI, DP, LVDS, 2.5G LAN

LV-6712C

With Celeron® 6305E + Cooler fan, support HDMI, DP, LVDS, 2.5G LAN
