LV-675
 Mini-ITX Mobile Intel Pentium M Embedded Motherboard

Mini-ITX Pentium M Embedded Motherboard (170 x 170 mm)
Intel® mPGA478 Pentium M @ 400/533 MHz FSB, 1 GB DDR SDRAM
Intel® Extreme Graphics, 64 MB shared with system memory ,
S-video and Composite TV-out, Optional LVDS / DVI interface
Intel® 82541PI Gigabit Ethernet controller, 2 x Mini-PCI socket,
5.1-Channel, USB 2.0, GPIO, IrDA, SPDIF, IEEE 1394

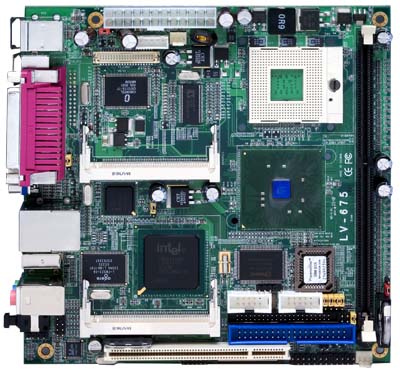

view larger image

-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document



Overview

Taiwan Commate Computer Inc. (COMMELL) a leading provider of Mini-ITX platform solution, announced the new embedded LV-675 Mini-ITX mainboard .LV-675 is the first Mini-ITX Motherboard support Intel® Pentium M / Celeron M processor with 2 x Mini-PCI expansion and high performance display functions for DVI or LVDS application.

With Intel® high performance chipset, LV-675 built-in Intel® Extreme Graphic technology with the sizable memory bandwidth of DDR333 up to 1GB and up to 64MB shared with system memory. High data transfer speeds of ATA/100 and also support DiskOnModule with +5V power supply. Its connectivity options include support for up to four USB 2.0 connections, two COM ports and One Intel® Gigabit Ethernet port. 5.1 channel audio output provided by Realtek ALC655 AC97 Codec.The latest in high-bandwidth connectivity is supported with IEEE 1394, as well as S-Video and RCA TV-Out (NTSC & PAL).For multimedia application, LV-675 offers the advanced features with the optional onboard interface,
including LVDS or DVI to meet the wide range of application. Its additional expansion capabilities include two Mini-PCI and one PCI slot.

COMMELL LV-675 is the perfect platform for low cost, low-power and high performance for the embedded application such as gaming machine, Kiosk and media centers, even NAS, POS and ATM application is suitable.LV-675 is also compatible with Microsoft Windows and Linux operating systems.

BackToTop

Key Feature
  • Ultra compact  Mini-ITX form factor at 170 x 170mm (W x L) of dimension

  • Built-in Intel® Extreme Technology. Video Memory Technology up to 64 MB shared with system memory

  • High memory capacity with 1 GB DDR 200/266/333 SDRAM

  • Optional dual channel 18/24-bit LVDS or DVI interface

  • 1 x PCI, 2 x Mini-PCI  interface

  • Integrated Intel® 82541PI Gigabit Ethernet interface

  • One 40-pin and one 44-pin IDE port for both of desktop and slim type ATAPI devices

  • Realtek ALC655 5.1 AC97 Audio & S/P DIF audio interface

  • IDE-based DiskOnModule

  • Standard 24-pin ATX power supply (20-pin is compatible)

BackToTop

Specification
Form Factor
Mini-ITX form factor at 170 x 170 mm
CPU
Micro-FCPGA 478 Mobile Intel® Pentium M / Celeron M CPU
up to 2.26 GHz  @ 400/533 MHz FSB
( Intel® Celeron M 4xx series can't support )
Memory
One 184-pin DIMM socket
Support up to 1 GBytes DDR 200/266/333 SDRAM
Chipset
 Intel® high performance chipset
Watchdog Timer
Generates a system reset with internal timer for 1 to 255 sec.
Power Management
ACPI 2.0 compliant, supports power saving mode .
Real Time Clock
Intel® ICH4 built-in RTC with onboard lithium battery
PCI Enhanced IDE
40-pin UltraATA/100 bus master IDE channels
And one onboard 44-pin IDE connector
VGA Interface
Built-in Intel® Extreme Graphics
Video Memory up to 64 MB shared with system
   External DB15 female connector on rear I/O panel
LVDS /DVI Interface
Optional Dual channel 18/24-bit LVDS or DVI interface
TV-out Interface
S-video & Composite TV-out
LAN Interface
Intel® 82541PI Giga Mbps Ethernet interface
Audio Interface
Onboard ACL655 AC97 3D audio codec
5.1 channel, line-in, line-out, Mic-in, CD-in and S/P DIF interface
Hi-Speed USB 2.0
Intel® ICH4 chipset built-in Hi-Speed USB 2.0 interface
with 480 Mbps of data transfer rate and bootable setting in BIOS
Multi-I/O Port
1 x RS232 & 1 x RS232/422/485, 1 x parallel, 4 x USB 2.0, 1 x IrDA,
1 x FDD, 8-bit GPIO, 1 x PS/2 keyboard and mouse port.
Solid State Disk
IDE support DiskOn Module with +5V power supply
Expansive Slot
One 32-bit PCI slot supports 2 bus master PCI via riser card,
and 2 x Mini-PCI
Environment
   Power Requirement: Standard 20/24-pin ATX power supply
   Dimension (W x L): 170mm x 170mm with standard Mini-ITX form factor
   Operation Temperature: 0 ~ 60oC (32 ~ 140oF)

Download Datasheet @ PDF format

BackToTop

Ordering Guide


LV-675X

Intel® Pentium M / Celeron M Mini-ITX motherboard with
onboard VGA, Giga LAN, RS-232/422/485, TV-out,
USB 2.0, GPIO, IrDA, SPDIF, 18/24-bit LVDS interface
LV-675X-CM6 Same as LV-675X but with Intel® ULV Celeron M 600 MHz, 512K L2 cache CPU.

LV-675D

Intel® Pentium M / Celeron M Mini-ITX motherboard with

onboard VGA, Giga LAN, RS-232/422/485, TV-out,

USB 2.0, GPIO, IrDA, SPDIF, DVI interface

LV-675D-CM6 Same as LV-675D but with Intel® ULV Celeron M 600 MHz, 512K L2 cache CPU.
MP-2501

Mini-PCI 801.11b/g wireless card

MP-323 Mini-PCI IEEE 1394a card
MP-878D Mini-PCI video capture card
MP-541D Mini-PCI Intel Gigabit Ethernet
MP-954
Mini-PCI 4 x COM ports module
