LV-679

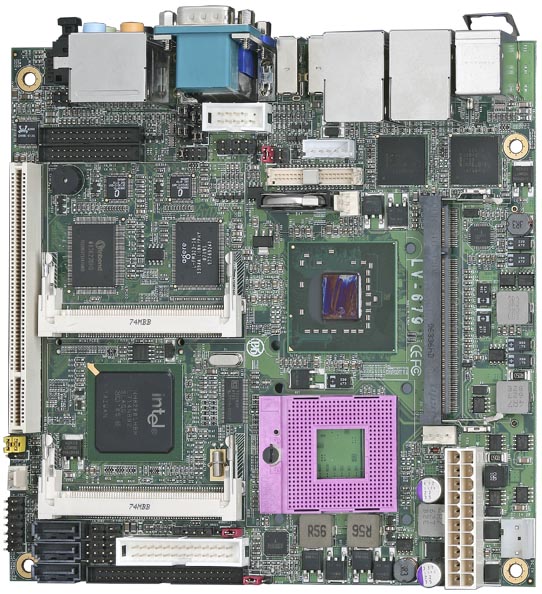

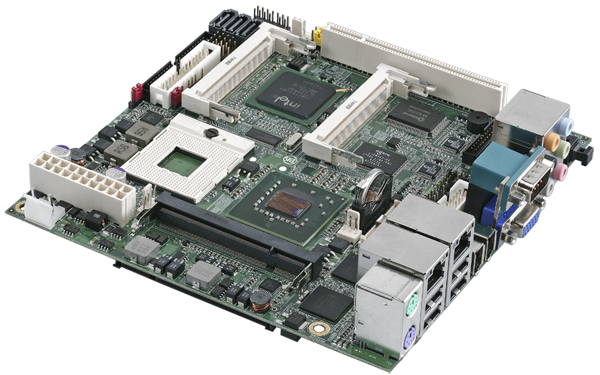

 Intel® Core™ 2 Duo mobile Mini-ITX Motherboard

Mini-ITX Mainboard with Intel® GME965 provides platform for
Intel® Core™ 2 Duo Merom with Socket P @ FSB 800 MHz, DDR2
up to 3GB, 2 Giga LAN, CRT, LVDS, HDTV, DVI, 1394, SATA,
HD Audi, Digital I/O, 2 x COM, PCI, 2 x Mini PCI

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX mainboard, introduced the  Mini-ITX LV-679 that mainboard incorporates an Intel Socket P pin-out compatible with Intel Core 2 Duo Mobile Merom processors @ FSB 533/800MHz support for T7700, T7500, T7300, T7100 , Validated with the Mobile GME965 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics and I/O bandwidth, asset management capabilities, storage speed and reliability.

The LV-679 provides these advantage features & an excellent performance-per-watt choice in the Mini-ITX form factor, it is optimized for a broad range of embedded applications such as interactive clients, gaming, medical, POS, Digital Signage, Surveillance and industrial automation equipment.



BackToTop

  Key Feature
  • CPU: Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB

  • Memory: 2 x 200-pin DDR2 533/667MHz up to 3.0 GB.

  • Chipset: Intel® GME965 and ICH8M.

  • VGA Interface: built-in Intel® extreme GMA X3100 Technology.

  • LVDS interface: Onboard 24-bit Dual channel LVDS connector.

  • DVI Interface:  Onboard 26-pin DVI interface

  • Enhanced IDE: One UltraATA33 IDE interface supports up to 2 ATAPI Devices.

  • Serial ATA: 3 x Serial ATA interface with 300 MB/s transfer rate.

  • LAN Interface: 2 x Intel® 82573L Gigabit Ethernet .

  • Audio: Realtek ALC888 HD Audio.

  • Solid State Disk: IDE1 supports 44-pin DiskOnModule with +5V power supply. CompactFlash Type-II socket on the solder side .

  • IEEE 1394: 2 x IEEE1394 port.

  • GPIO interfaceOnobard 8-bit Digital I/O interface.

  • Extended interface: 2 x Mini-PCI socket and 1 x PCI slot.

  • Rear I/O ports: PS/2 Keyboard/Mouse, VGA, LAN, USB 2.0, Audio, SPDIF, IEEE 1394 COM.



BackToTop

  Specification


Form Factor

Mini-ITX Motherboard (170 x 170 mm)

CPU

Intel® Core™ 2 Duo Merom with Socket P @ 800 MHz FSB

Memory

2 x DDR2 533/667 MHz SODIMM up to 3.0 GB

Chipset

Intel® GME965 & ICH8M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1sec/min ~ 255 sec/min

Power Management

ACPI 1.0 compliant, supports power saving mode

PCI Enhanced IDE

1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices

VGA Interface

Intel® GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology

Video Memory

Up to 384 MB shared with system memory

Serial ATA Interface

3 x Serial ATA II Interface with 300 MB/s transfer rate.

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82573L Gigabit Ethernet

Solid State Disk

IDE1 supports 44-pin DiskOnModule +5V power supply

CompactFlash Type-II on the solder side.

(CompactFlash shared with IDE bus)

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

1 x PCI slot & 2 x Min-PCI socket

External I/O Port

2 x RJ45 LAN ports, 1 x DB15 VGA port,1 x  PS/2 Keyboard / Mouse ports, 2 x IEEE 1394 ports, 4 x USB 2.0 ports, Audio, SPDIF,  1 x COM

    Internal I/O Port

    1 x RS232/422/485, 1 x silm FDD, 1 x IrDA , 1 x LPT

    4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN

    LVDS and LCD inverter connector, 2 x DVI, 1 x TV-out

Power Requirement

Standard 20-pin ATX power supply or

9V ~ 24V full range DC input (8 ~ 30V is operative)

    Board Dimension     170mm x 170 mm (L x W)

Operation Temperature

 0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-679D

Intel® Core™ 2 Duo Mini-ITX Motherboard with onboard VGA,

LAN, SATA, USB 2.0 ports Audio, IEEE1394, RS232/422/485, Min-PCI, PCI, LVDS, 1 x DVI interface

    LV-679D2C

Same as above, but with 2 x DVI interface and CompactFlash socket on the solder side.

    CMB-679 Barebone system for LV-679 series board w/ 12V/80W adapter
    MP-954 Mini-PCI Card support 3 x RS232 & 1 x RS232/422/485
    MP-323 Mini-PCI Card support 3 x IEEE 1394
    MP-541D2 Mini-PCI Card support 2 x Gigabit LAN
    MP-9116 Mini-PCI 4 ~ 16 channel Capture card
    MP-878D Mini-PCI Capture card
    MP-2501 Mini-PCI Wireless card

BackToTop
