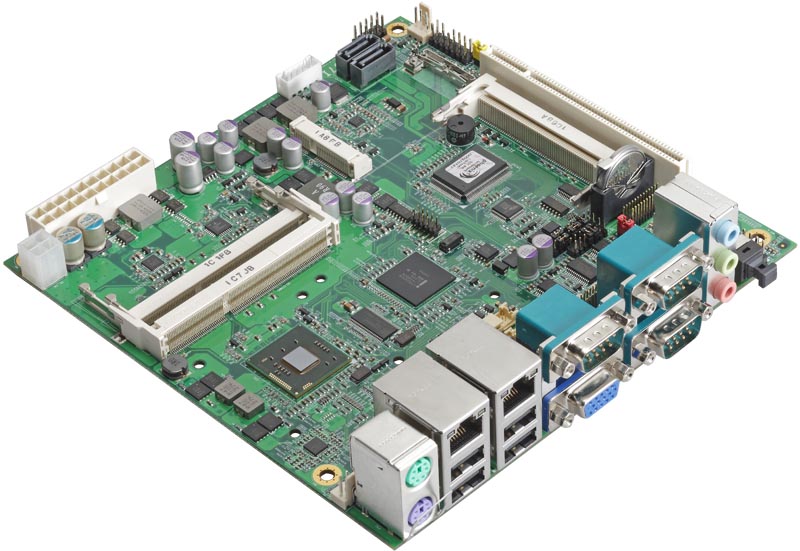

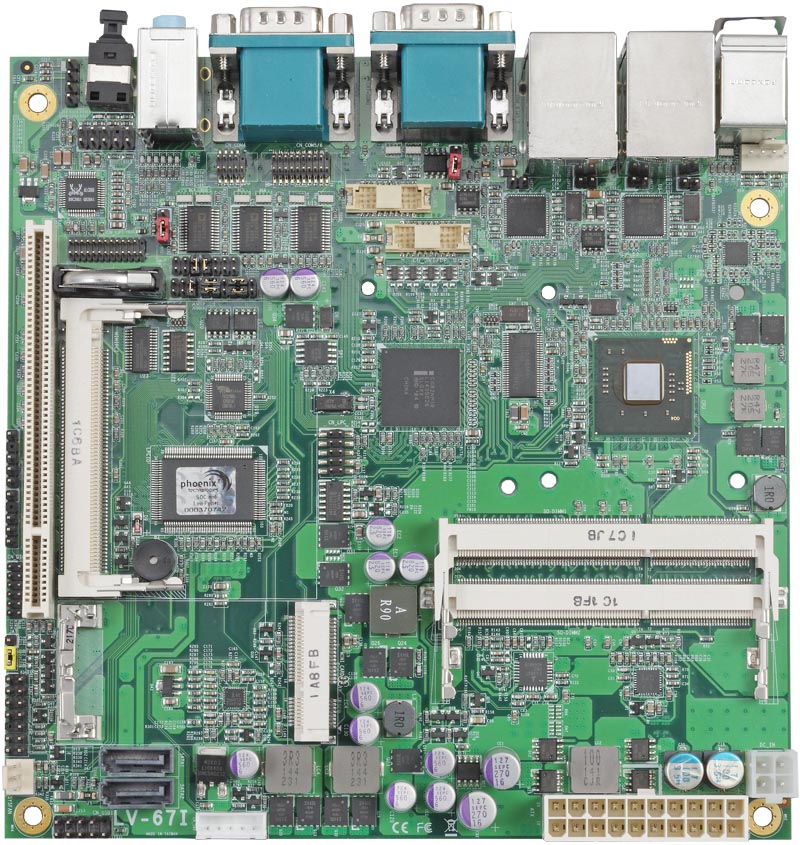

Mini-ITX with Intel® Atom processor CedarTrail Solution
Intel® AtomTM Processor D2550 or N2800, Onboard LVDS, VGA, Giga LAN, USB2.0
HD Audio, SATA, PCIE Mini card & Mini-PCI socket, DC 9V ~24V input or ATX P/S
|
Overview
|
|
LV-67I consists of the Intel
Atom D2550 or N2800, combined with the Intel NM 10
express chipset, Integrated Intel Graphics Media
Accelerator 3650 combined with integrated memory
controller provides enhanced performance and system
responsiveness, such as Full HD-decode ( MPEG2, VC1, AVC,
H.264) and Blu-ray 2.0 support.
LV-67I
with Lower power feature that enables fanless designs
and also suitable for products that need thinner,
lighter, more compact and portable.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel®
AtomTM
processor N2800 or D2550
-
Memory: 2 x
DDR3 SO-DIMM up to 4.0 GB.
-
Chipset:
Intel® NM10 Express Chipset.
-
VGA
Interface: Intel®
integrated extreme GMA 3650 technology.
-
LVDS
interface: Onboard
18-bit single or 18/24-bit single channel LVDS.
-
DVI
interface: Onboard
DVI interface
-
Serial
ATA: Support 2
x SATAII interface with 300MB/s transfer rate
-
Audio: Realtek ALC888 HD Audio.
-
LAN
Interface: 2
x Intel®
82583V Giga LAN.
-
Extended
interface: 32-bit
PCI slot , PCIE mini card
& Mini-PCI sockets.
-
I/O
ports:
6x RS232 Serial Ports, 6 x USB2.0 ports, 1 x DB15 VGA port, 1
x LPT
1 x keyboard and mouse
ports, 1 x LPC.
-
Power:
DC 9V ~ 24V input or
standard ATX P/S
|
|
BackToTop |
Specification
|
|
Form Factor |
Mini-ITX
Motherboard |
|
CPU |
Intel®
AtomTM processor
N2800, 1.86
GHz (
LV-67IN )
Intel®
AtomTM processor
D2550, 1.86
GHz (
LV-67ID5
) |
|
Memory |
2
x 204-pin DDR3-800/1066 SO-DIMM up to 4.0 GB
Support
Non-ECC, unbuffered memory only |
|
Chipset |
Intel® NM10 Express Chipset |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery |
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1min/s ~ 255min/s
|
|
Power
Management |
ACPI
3.0 compliant, supports power saving mode
|
|
Integrated
Graphics |
Intel®
integrated
extreme GMA 3650 Technology
|
|
LVDS
Interface
|
Onboard
18-bit single channel LVDS ( LV-67IN)
Onboard
18/24-bit single channel LVDS ( LV-67ID5
)
|
|
DVI
Interface
|
Onboard
DVI interface with 20-pin connector
|
|
Serial
ATA Interface
|
2
x SATAII interface with 300MB/s transfer rate
|
|
Audio
Interface |
Realtek ALC888 HD Codec
|
|
LAN Interface |
2
x Intel®
82583V
Gigabit Ethernet controller |
|
Expansion
Interface |
1
x 32-bit PCI slot ,
PCIe mini card & Mini-PCI sockets
|
|
Internal I/O
Port
|
1 x Audio,
2
x USB2.0, 2
x SATAII, 3 x RS232, 1 x LPC, 1 x LPT
1
x LVDS, 1 x DVI, 1 x IrDA
|
|
External I/O
Port |
1 x
VGA, 2 x RJ45 LAN, 1 x PS2 Keyboard/Mouse, 4 x USB
2
x RS232 & 1 x RS232/422/485, 1 x Audio, 1 x SPDIF
|
|
Power Requirement |
DC
9V ~ 24V input or standard 20-pin ATX power supply |
|
Board Dimension
|
170mm x
170mm
|
|
Temperature |
Operating
within 0~60 centigrade
Storage
within -20~85 centigrade
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LV-67ID5
|
Support Intel® Atom
D2550 processor with onboard VGA,
18/24-bit single LVDS,
Audio,
Giga LAN, USB2.0, SATA,
PCIE mini card & Mini-PCI socket.
|
|
LV-67IN
|
Support Intel® Atom
N2800 processor with onboard VGA,
18-bit single LVDS,
Audio,
Giga LAN, USB2.0, SATA, PCIE mini card
& Mini-PCI socket.
|
