LV-67J
3rd and 2nd generation Intel® Core™ i7 / i5 / i3  Mini-ITX Motherboard
Support  3rd and 2nd generation  Intel® Core™ i7 / i5 / i3 / desktop CPU with
Intel® Q77 Express, DDR3 up to 16GB, Onboard VGA & DVI, 2 x Giga LAN,
4 x USB 2.0, 4 x USB 3.0, 4 x COM, HD Audio, 2 x SATAII & 2 x SATAIIl with RAID,
GPIO, PCIe X16, Mini-PCIe & Mini-PCI socket .

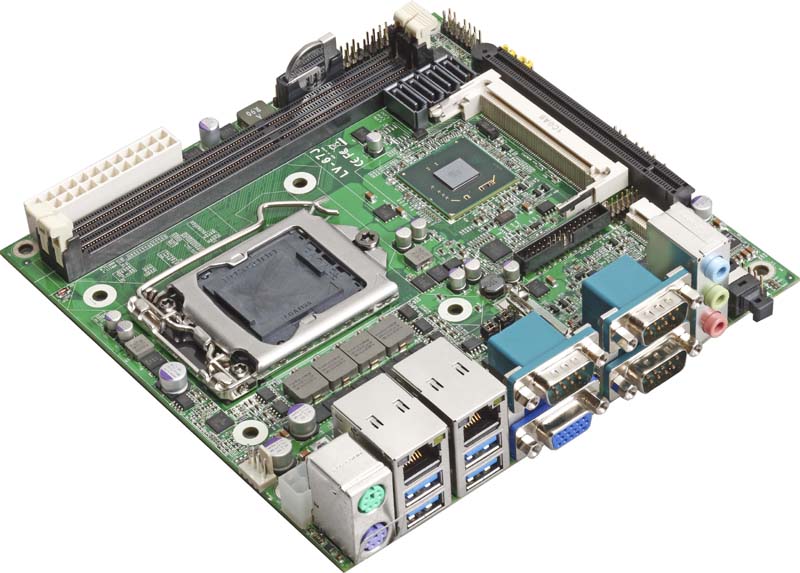

view larger image





-

Overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX mainboard, LV-67J that designed for the 3rd and 2nd generation Intel Core i7/i5/i3 processors in the FCLGA1155 socket. The Mini-ITX mainboard based on intel Q77 Express chipset, Q77 Express chipset is part of the desktop Intel 7 Series Chipset family, along with a intel 3rd generation 22 nm Core i7/i5/i3, Flexible extend slots including PCI-Express X16, Mini-PCI & Mini-PCIe socket. For the IO ports , there're 4 x USB 2.0 and 4 x USB 3.0, 4 x COM and GPIO interface, 2 x Giga LAN,  Onboard VGA + DVI for Dual display solution .



This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.









Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology ex. i7-3770

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf



BackToTop


  Key Feature

  • CPU: Intel® 3rd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155  socket

          (support Intel® 2nd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155 socket)

  • Memory: Two DDR3 1006/1333 MHz up to 16 GB

  • Chipset: Intel® Q77 Express chipset

  • Integrated Graphics: Intel® Clear Video integrated HD Graphics Technology

  • VGA Interface: Onboard DSUB15 connector for VGA interface

  • DVI interface: Onboard DVI with 20-pin connector

  • LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN

  • Serial ATA: Support 4 x SATA ( 2 x serial ATAII, 2 x serial ATAIII )

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 3 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports,

           4 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports,

           1 x SPDIF.

  • Extended interface: 1 x PCI-Express X16 Gen3 slot, 1 x Mini PCI socket,

           1 x  PCIEMini card ( Support mSATA or Mini_Card for option )

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Power requirement : Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V

BackToTop


  Specification


Form Factor

Mini-ITX Motherboard

Processor

3rd and 2nd Generation Intel® Core™ i7/ i5/ i3/Celeron® Desktop Processor.

Package Type:  FCLGA1155

Memory

 2 x 240-pin DDR3 1066/1333MHz SDRAM up to 16GB         Unbufferred,  none-ECC memory supported only

Chipset

Intel® BD82Q77 PCH

Integrated Graphics

Intel® Core™ integrated HD Graphics Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 1.0 compliant, supports power saving mode

Serial ATA Interface

Intel® Q77 PCH built-in 2 x Serial ATAII interface up to 300MB/s

& 2 x Serial ATAIII interface up to 600MB/s

Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.

VGA Interface

Onboard DSUB15 connector for VGA interface
 DVI Interface  Onboard 20-pin DVI interface

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE X 16 Gen3 slot‚ 1 x Mini PCI socket,1 x PCIE Mini card

Support mSATA or Mini_Card for option

Internal I/O Port

1 x RS232/422/485, 1 x GPIO port, 1 x CDIN connector,1 x Audio

connector, 1 x IrDA connector, 1 x SMBUS connector and

4 x USB 2.0 ports.

External I/O Port

1 x PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 1 x DB15

VGA port, 4 x USB3.0 ports and 3 x Serial Port.

External Audio

Line-in, MIC-in, Front, Rear, Center/Subwoofer and Optical SPDIF

outputs.

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) and

P4 4-pin 12V

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop


  Ordering Guide

LV-67J

Onboard VGA, DVI, 2 x Gigabit LAN, 4 x USB2.0, 4 x USB3.0,

4 x serial Port, 4 x SATA, 1 x IrDA, Realtek HD Audio, Mini-PCI,

PCIE Minicard, PCIE x16.

LV-67JS

Onboard VGA, DVI, 2 x Gigabit LAN, 4 x USB2.0, 4 x USB3.0,

4 x serial Port, 4 x SATA, 1 x IrDA, Realtek HD Audio, Mini-PCI,

PCIE x16, mSATA.

CMB-67J--01

Barebone with LV-67J and 250W power supply ,PCIE Riser card.
