LV-67N
4th  generation Intel® Core™ i7 / i5 / i3  Mini-ITX Motherboard

Support  4th generation  Intel® Core i7 / i5 / i3 / desktop CPU with
Intel® Q87 Express, DDR3/DDR3L up to 16GB, onboard VGA & DVI, DisplayPort, LVDS
 2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 4 x COM, HD Audio, 4 x SATAIIl with RAID,
GPIO, PCIe X16, 2 x Mini-PCIe socket.

view larger image



-
Overview
-
Feature
-
Specification
-

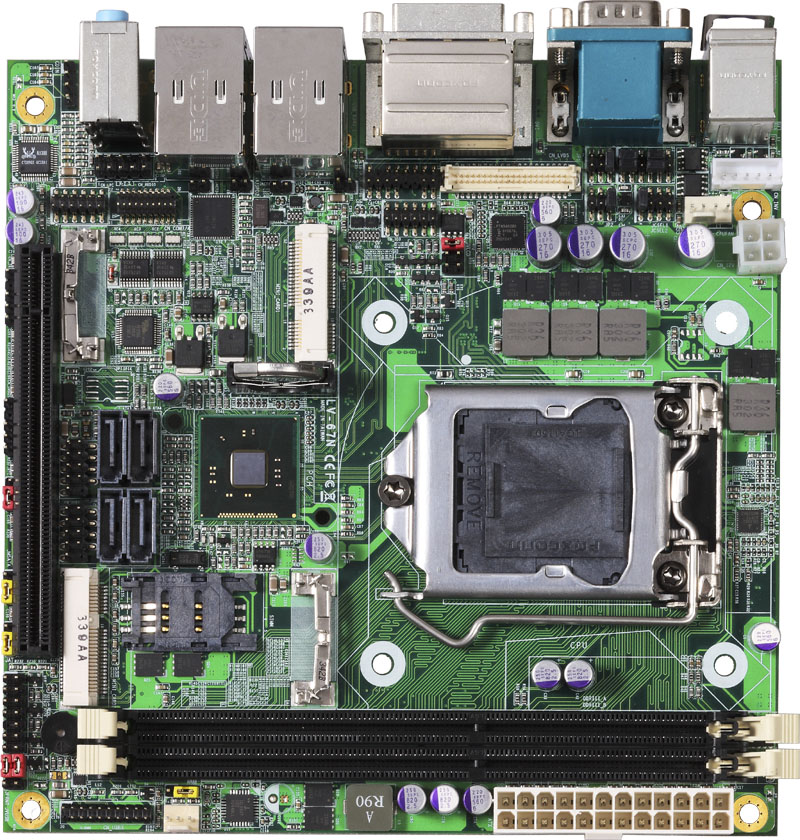

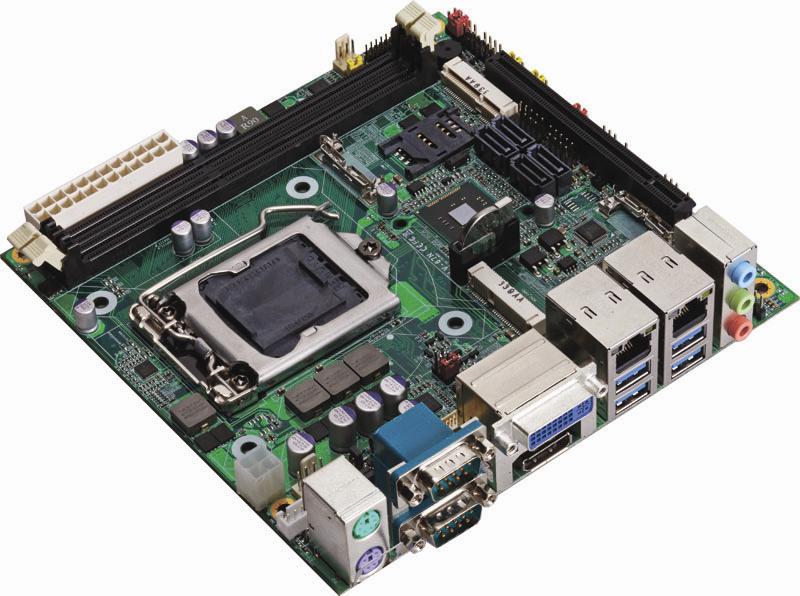

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Mini-ITX form factor LV-67N embedded system board with the Intel® Q87 Express chipset, which adopts the 4th generation Intel® Core™ processor family (formerly known as “Haswell”, manufactured on 22nm processor technology). The COMMELL LV-67N platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application



The LV-67N Mini-ITX is designed for the 4th generation Intel® Core™ processors in the FCLGA1150 socket H3 supporting two DDR3/DDR3L DIMMS up to 16GB and running 1333/1600 Mhz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LV-67N supports VGA, LVDS, DVI-I and one DP port to provide its advanced solutions for imaging, machine vision and digital signage applications.









LV-67N offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATAIII supported RAID 0/1/5/10, equipped with dual Gigabit Ethernet with iAMT 9.0 supported, and comes with PS/2 Keyboard and Mouse port, 1 x RS232/422/485 and  3 x RS232, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCI Expressx16 slot, 2 x  PCIE Mini card socket



BackToTop

  Key Feature



  • CPUIntel® 4th generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1150  socket

  • Memory2 x DDR3/DDR3L (Support 1.5V)1333/1600 MHz DIMM up to 16 GB

  • Chipset: Intel® Q87 Express chipset

  • Integrated GraphicsIntel® Core™ integrated HD Graphics 4600 Technology

  • DVI interface: Onboard DVI connector

  • LVDS interface: Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

  • DisplayPort interface: Onboard DisplayPort connector

  • LAN Interface: 1 x Intel® I210-AT Gigabit LAN and 1 x Intel® I217-LM Gigabit LAN

  • Serial ATA: Support 4 x SATAIII

  • Audio: Realtek ALC888 High Definition Audio.

  • Internal I/O ports: 2 x RS232, 1 x GPIO1 x Audio, 1 x IrDA, 1 x SMBUS, 1 x CRT, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x USB2.0, 2 x USB3.0, 4 x SATAIII

  • External I/O ports: 1 x PS/2, 1 x RS232, 1 x RS232/422/485, 1 x DVI, 1 x DisplayPort,  2 x LAN, 4 x USB3.0, 1 x Audio

  • Extended interface1 x PCIE X 16 slot, 2 x PCIE Mini card, 1 x SIM socket

           (Optional support mSATA(SATAIII) for Mini_Card1)

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface

  • External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.

  • Power requirement : Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

4 th Generation Intel® Core™ i7/ i5/ i3/Celeron® Desktop Processor.

Package Type:  FCLGA1150

Memory

 2 x 240-pin DDR3/DDR3L 1333/1600 MHz DIMM up to 16GB          (Unbufferred,  none-ECC memory supported only)

Chipset

Intel® BD82Q87 PCH

Integrated Graphics

Intel® Core™ integrated HD Graphics 4600 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 4.0 compliant

Serial ATA Interface

Intel® Q87 PCH built-in 4 x Serial ATAIII interface up to 600MB/s

Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.

(not support SATA II device)

VGA Interface

Onboard 16-pin VGA interface

 DVI Interface  Onboard DVI connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 DisplayPort Interface  Onboard DisplayPort connector

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

1 x Intel® I210-AT Gigabit Ethernet Controller

1 x Intel® I217-LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE X 16 slot 2 x PCIE Mini card, 1 x SIM socket

(Optional support mSATA(SATAIII) for Mini_Card1)

Internal I/O Port

2 x RS232, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x IrDA, 1 x SMBUS, 1 x CRT, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x USB2.0, 2 x USB3.0, 4 x SATAIII

External I/O Port

1 x PS/2 (Keyboard & Mouse), 1 x RS232, 1 x RS232/422/485, 1 x  DVI, 1 x DisplayPort, 2 x LAN, 4 x USB3.0, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) and

P4 4-pin 12V

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67N

Onboard DVI, DisplayPort, CRT, LVDS, 2 x Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAIII, IrDA, Realtek HD Audio, PCIE Mini card, PCIE x16, SMBUS, GPIO, SIM, LPC, mSATA.
