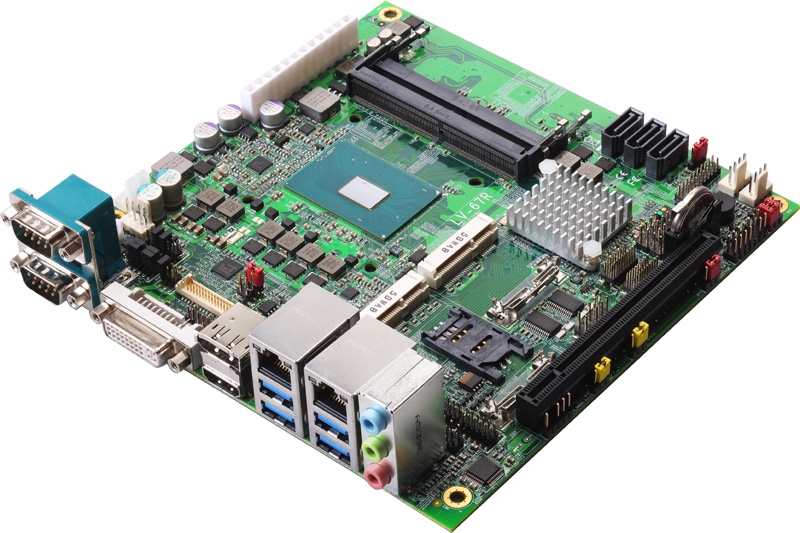

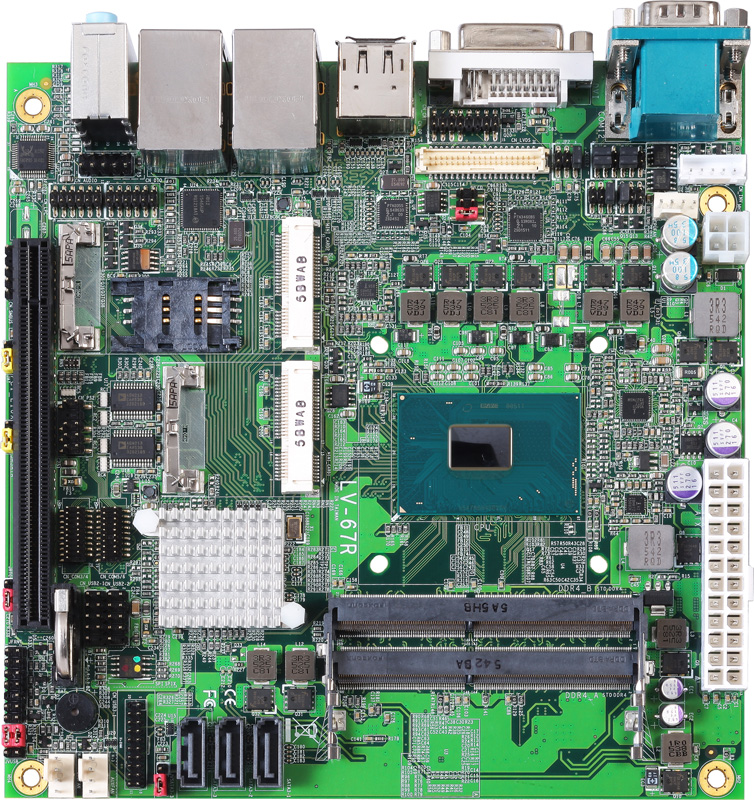

LV-67R
Skylake / Kaby Lake Mini-ITX Intel® 6th /  7th Gen Core™ H-series Processor and
Xeon® E3-1505M v6 processor  Motherboard

Support  Skylake / Kaby Lake Intel® 6th / 7th Gen Core H-series Processor and Xeon® E3-1505M
 v6 mobile CPU with Intel®QM170/QM175/CM238 chipset, DDR4 up to 32 GB, Onboard  DVI-I,
DisplayPort, LVDS, HDMI, VGA, 1 x Intel® Giga PHY LAN, 1 x Intel® Giga LAN, 4 x USB 2.0,
6 x USB 3.0, 1 x RS232/422/485, 5 x RS232, 1 x PS/2, HD Audio, 3 x SATA3 with RAID, GPIO,
SMBUS, 1 x LPC, 1 x SIM socket, PCIe X16, 1 x Mini-PCIe socket (support mSATA), 1 x Half-Size
Mini-PCIe socket.

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LV-67R Mini-ITX  embedded system board based on Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ H-series Processor and Xeon® E-1505M v6 processor family. The "Skylake / Kaby Lake" PC is claimed to deliver 30 percent  better performance than a PC base on Ivy Bridge architecture, 20 percent better performance than a PCbased on "Haswell", and 10 percent better performance than a "Broadwell" PC.The LV-67R mobile Mini-ITX platform is designed for the 6th / 7th generation Intel® Core™ H-series processor, FCBGA1140 package. It is the first mainstream. Intel® mobile platform to support DDR4 memory (Two DDR4 SO-DIMM 2133 MHz up to 32GB).

The platform is based on Intel® HD530 / 630 Graphics, this Skylake / Kaby Lake GPU offers 24 execution units (EUs) clocked at up to 1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely in hardware and thereby much more efficiently than before. Displays can be connected via one VGA, one LVDS, one DVI-I, one HDMI and one 2nd VGA port or LVDS optional, up to three displays can be controlled simultaneously. LV-67R offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 3 x SATAIII, equipped with dual Gigabit Ethernet and comes with PS/2 port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCIE x16 slot, 1 x MiniPCIe socket(Support mSATA), 1 x Half size MiniPCIe socket, 1 x SIM slot.

BackToTop

  Key Feature



  • CPU: Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ H-series and Xeon® E3-1505M v6 Mobile Processor, FCBGA1440 package.

  • Memory2 x DDR4 2133 MHz SO-DIMM up to 32 GB.

  • Chipset: Intel® QM170/QM175/CM238 chipset.

  • Integrated GraphicsIntel® Core™ integrated HD Graphics 530 Technology.

  • DVI interface: Onboard DVI-I connector.

  • HDMI interface: Onboard HDMI connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

  • DisplayPort interface: Onboard DisplayPort connector.

  • VGA interface: 16-pin connector.

  • LAN Interface1 x Intel® I219-LM Gigabit LAN(Support iAMT 11.0), 1 x Intel® I210-AT Gigabit LAN.

  • Serial ATASupport 3 x SATA3.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O: 3 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x VGA.

  • Rear I/O: 1 x DisplayPort(optional), 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.

  • Extended interface: 1 x PCIE X 16 slot, 1 x PCIE Mini card, 1 x Half-Size PCIE Mini card, 1 x SIM socket (Mini_card2 support mSATA).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.

  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin 9~25V.

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

Skylake / Kaby Lake Intel® 6 th / 7 th Gen Core™ H-series and Xeon® E3-1505M v6 Mobile Processor

Package Type:  FCBGA1440

Memory

2 x 260-pin DDR4 2133 MHz SO-DIMM up to 32GB. (Unbufferred,  none-ECC memory supported only)

Chipset

Intel® QM170/QM175/CM238

Integrated Graphics

Intel® Core™ integrated HD Graphics 530 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Intel® QM170/QM175/CM238 built-in 3 x Serial ATA3 interface up to 600MB/s

Support RAID 0, 1, 5 and Intel Rapid Storage Technology.

VGA Interface

16-pin CRT interface

 DVI Interface  Onboard DVI connector
 HDMI Interface  Onboard HDMI connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 DisplayPort Interface  Onboard DisplayPort connector (optional)

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® I219-LM Gigabit LAN(Support iAMT 11.0), 1 x Intel® I210-AT Gigabit LAN

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE X 16 slot‚ 1 x PCIE Mini card, 1 x Half-Size PCIE Mini card, 1 x SIM socket

(Optional support mSATA for Mini_Card2)

Internal I/O Port

3 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x GPIO, 1 x Audio (MIC-in & Line-out),  1 x PS/2 (Keyboard & Mouse), 1 x SMBUS, 1 x VGA

Rear I/O Port

1 x DisplayPort(optional), 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x  RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin Full range 9~25V DC input (with no LVDS, 60W)

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 80°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67R3

With i3-6100E, QM170 support HDMI, LVDS, VGA, DVI-I, DisplayPort

 LV-67R5

With i5-6440EQ, QM170 support HDMI, LVDS, VGA, DVI-I, DisplayPort

LV-67R7

With i7-6820EQ, QM170 support HDMI, LVDS, VGA, DVI-I, DisplayPort

 LV-67RT3

With i3-6100E, QM170 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

LV-67RT5

With i5-6440EQ, QM170 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

 LV-67RT7

With i7-6820EQ, QM170 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

LV-67RK3

With i3-7100E, QM175 support HDMI, LVDS, VGA, DVI-I, DisplayPort

 LV-67RK5

With i5-7440EQ, QM175 support HDMI, LVDS, VGA, DVI-I, DisplayPort

LV-67RK7

With i7-7820EQ, QM175 support HDMI, LVDS, VGA, DVI-I, DisplayPort

LV-67RKX

With E3-1505M v6, QM238 support HDMI, LVDS, VGA, DVI-I, DisplayPort

 LV-67RTK3

With i3-7100E, QM175 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

LV-67RTK5

With i5-7440EQ, QM175 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

 LV-67RTK7

With i7-7820EQ, QM175 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

 LV-67RTKX

With E3-1505M v6, QM238 support HDMI, LVDS, VGA, DVI-I, Header for 2nd VGA or 2nd LVDS

ADP-3355

DisplayPort to VGA (For 2nd VGA)

ADP-3460

DisplayPort to LVDS (For 2nd LVDS)
