LV-67T

6^th / 7^th generation Intel® Skylake / Kaby Lake U-series processor Mini-ITX

Motherboard

Support 6^th / 7^th generation  Intel® Skylake / Kaby Lake U-series processor mobile CPU

with Sunrise Point-LP chipset, DDR4 up to 32 GB, Onboard  DVI-I, LVDS, DisplayPort/VGA,

1 x Giga LAN, 1 x Giga PHY LAN, 4 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, GPIO,

2 x SATAIIl with RAID 0,1, 1 x PCI slot, 1 x MiniPCI, 2 x Mini-PCIe socket, 1 x SIM slot.

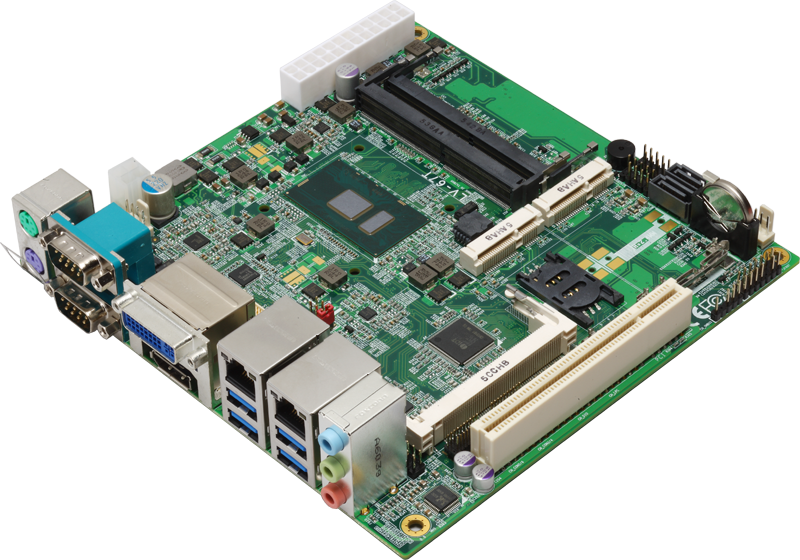

view larger image
	-	Overview
	-	Feature
	-	Specification

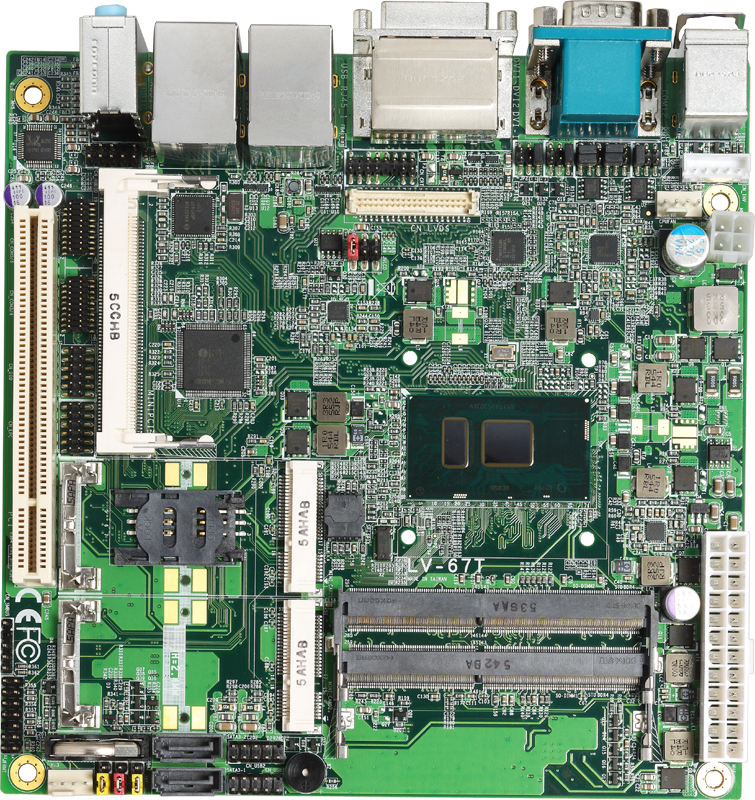

	-	Product Image
	-	Ordering Guide
	-	Datasheet (PDF format)
	-	Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LV-67T Mini-ITX embedded system board based on Intel® 6th/7th generation "Skylake / Kaby Lake" Core™ processor family. The "Skylake / Kaby Lake" PC is claimed to deliver 30 percent better performance than a PC base on Ivy Bridge architecture, 20 percent better performance than a PCbased on "Haswell", and 10 percent better performance than a "Broadwell" PC.The LV-67T mobile Mini-ITX platform is designed for the 6th generation Intel® Core™ U-series processor, FCBGA1356 package. It is the first mainstream. Intel® mobile platform to support DDR4 memory (Two DDR4 SO-DIMM 1866/2133 MHz up to 32GB).

The platform is based on Intel® HD530 Graphics, this Skylake / Kaby Lake GPU offers 24 execution units (EUs) clocked at up to 1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely in hardware and thereby much more efficiently than before. Displays can be connected one DVI-I, one LVDS and one DP port or VGA optional, up to three displays can be controlled simultaneously. LV-67T offers lots of features including high-speed data transfer interfaces such as 4 x USB3.0 and 2 x SATAIII, equipped with dual Gigabit Ethernet (One of the dual LAN with iAMT 11.0 supported), and comes with PS/2 port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCI slot, 1 x MiniPCI, 2 x MiniPCIe socket (Card2 upport mSATA) and Card2 half-size choosable, 1 x SIM slot.

BackToTop

  Key Feature

CPU: Intel® Skylake / Kaby Lake 6th / 7th generation Intel® Core™ U-series Mobile processor, FCBGA1356 package.
Memory: 2 x DDR4 1866/2133 MHz SO-DIMM up to 32 GB.
Chipset: Sunrise Point-LP chipset.
Integrated Graphics: Intel® Gen 9 integrated HD Graphics.
DVI interface: Onboard DVI-I connector.
LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply
DisplayPort interface: Onboard DisplayPort connector.
VGA interface: 16-pin connector.
LAN Interface: 1 x Intel® I210-AT Gigabit LAN and 1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11).
Serial ATA: Support 2 x SATA3 for RAID 0,1.
Audio: Realtek ALC262 High Definition Audio.
Internal I/O: 2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x VGA.
Rear I/O: 1 x PS/2, 1 x DisplayPort, 1 x DVI-I, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.
Extended interface: 1 x PCI slot, 1 x Mini PCI card, 1 x SIM socket, 2 x Mini PCIE card (Mini_card2 support mSATA).
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.
Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or DC input 9~30V.

BackToTop

  Specification

Form Factor	Mini-ITX Motherboard
Processor	6 ^th/ 7 ^th Generation Intel® Skylake / Kaby Lake Core™ U-series Mobile Processor Package Type: FCBGA1356
Memory	2 x 260-pin DDR4 1866/2133 MHz SO-DIMM up to 32GB. (Unbufferred, none-ECC memory supported only)
Chipset	Sunrise Point-LP
Integrated Graphics	Intel® Gen 9 integrated HD Graphics
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset with internal timer for 1min/s ~ 255min/s
Serial ATA Interface	2 x SATA3 support RAID 0, 1
VGA Interface	16-pin connector
DVI Interface	Onboard DVI connector
LVDS Interface	Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
Display port Interface	Onboard Display port connector
Audio Interface	Realtek ALC262 HD Audio
LAN Interface	1 x Intel® I210-AT Gigabit Ethernet Controller 1 x Intel® I219-LM Gigabit PHY Ethernet Controller
GPIO Interface	Onboard programmable 8-bit digital I/O interface
Extended Interface	1 x PCI slot‚ 1 x Mini PCI card, 1 x SIM socket, 2 x Mini PCIE card (Mini_card2 support mSATA)
Internal I/O Port	2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x SMBUS, 1 x VGA
Rear I/O Port	1 x PS/2, 1 x DisplayPort, 1 x DVI-I, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in
Power Requirement	Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin 9~30V
Board Dimension	170 mm x 170 mm (L x W)
Temperature	Operating within 0 ~ 60°C (32 ~ 140°F) Storage within -20 ~ 80°C (-4 ~ 176°F)

Download Datasheet @ PDF format

BackToTop

Ordering Guide
LV-67TK3	With i3-7100U + Cooler Fan, support DVI-I, LVDS, DP/VGA
LV-67TK5	With i5-7300U + Cooler Fan, support DVI-I, LVDS, DP/VGA
LV-67TK7	With i7-7600U + Cooler Fan, support DVI-I, LVDS, DP/VGA
LV-67T3	With i3-6100U + Cooler Fan, support DVI-I, LVDS, DP/VGA
LV-67T5	With i5-6300U + Cooler Fan, support DVI-I, LVDS, DP/VGA
LV-67T7	With i7-6600U + Cooler Fan, support DVI-I, LVDS, DP/VGA
OHSF-04-01	Four pin two ball smart fan up to 6500 RPM fan speed
