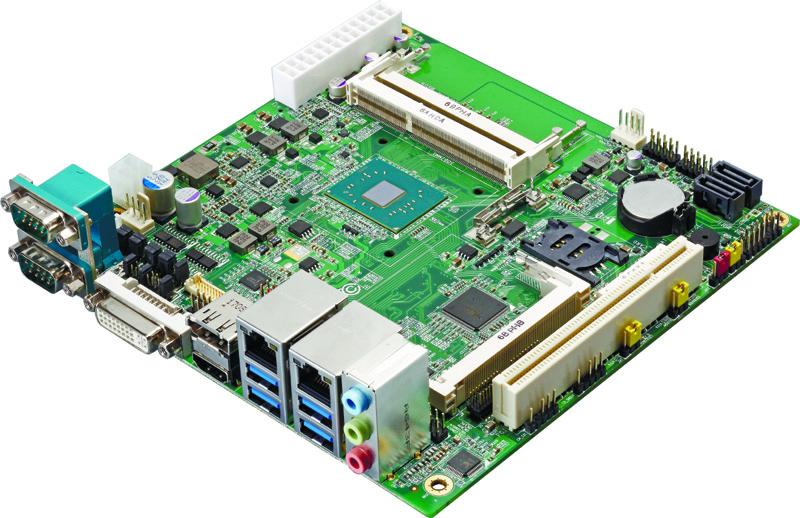

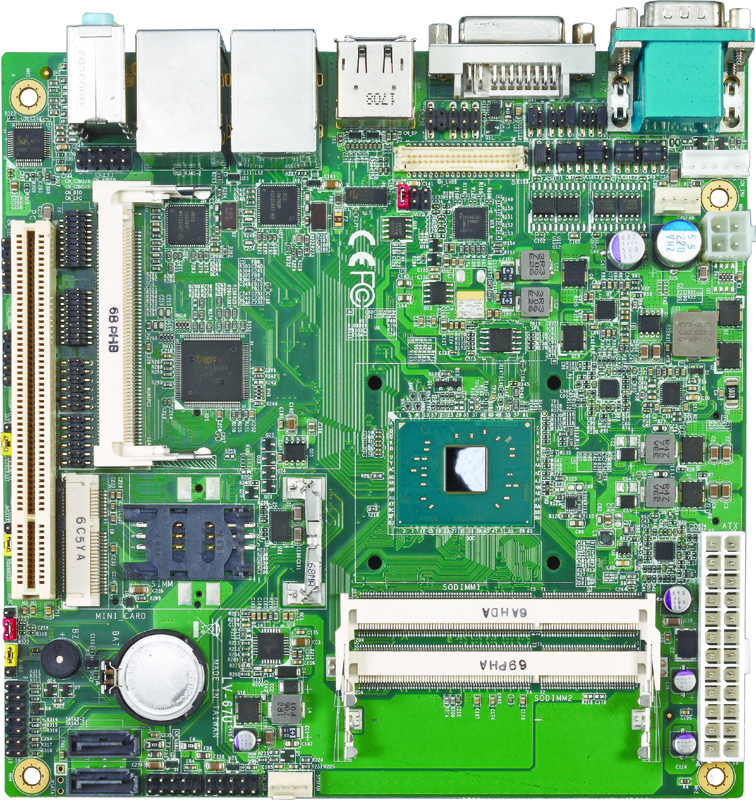

LV-67U
Mini-ITX  Motherboard with Intel® Apollo Lake Series Processor N3350/N4200/x7-E3950

Support Apollo Lake Series Processor.
DDR3L up to 8 GB, Onboard  HDMI, LVDS, optional DisplayPort or DVI, 2 x Giga LAN, 4 x USB 2.0,
4 x USB 3.0, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 2 x SATA3, GPIO, SMBUS, 1 x LPC,
1 x I˛C, 1 x SIM socket, 1 x Mini-PCIe socket (support mSATA), 1 x Mini PCI, 1 x PCI.

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LV-67U Mini-ITX  embedded system board based on Intel® Apollo Lake Series, combined with the Intel® Express chipset, Integrated Intel® HD Graphics Technology with integrated memory. The COMMELL LV-67U platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application. Intel® mobile platform to support DDR3L memory (Two DDR3L SO-DIMM 1866 MHz up to 8GB).

The platform is based on Intel® HD Graphics, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one LVDS, one HDMI and one DP port or DVI optional, up to three displays can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LV-67U offers lots of features including high-speed data transfer interfaces such as 4 x USB3.0 and 2 x SATAIII, equipped with dual Gigabit Ethernet and comes with PS/2 port, 4 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCI slot(Support two PCI slots by PCI riser card), 1 x MiniPCIe socket(Support mSATA), 1 x Mini PCI, 1 x Sim slot

BackToTop

  Key Feature



  • CPUIntel® Apollo Lake series Processor N3350 / N4200 / x7-E3950, FCBGA1296 package.

  • Memory2 x DDR3L (support 1.35V) 1866 SO-DIMM up to 8GB

  • Integrated GraphicsIntel® integrated HD Graphics.

  • DisplayPort interface: Onboard DisplayPort connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

  • DisplayPort interface: Onboard DisplayPort connector.(optional)

  • DVI interface: Onboard DVI connector.(optional)

  • HDMI interface: Onboard HDMI connector.

  • LAN Interface2 x Intel® I210-AT Gigabit LAN.

  • Serial ATASupport 2 x SATA3.

  • Audio: Realtek ALC262 HD Audio.

  • Internal I/O2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x I˛C.

  • Rear I/O: 1 x DisplayPort(Note1), 1 x DVI(Note1), 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x Audio, 2 x RS232/422/485(optional).

  • Extended interface: 1 x PCI slot, 1 x Mini PCI, 1 x PCIe Mini card(Support mSATA), 1 x SIM socket, 1 x SD Card Slot, 1 x CFast Card Socket(optional).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.

  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin 12V.

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

Intel® Apollo Lake series Processor N3350 / N4200 / x7-E3950, FCBGA1296 package.

Memory

2 x 204-pin DDR3L 1866 MHz SO-DIMM up to 8GB. (Unbufferred,  none-ECC memory supported only)

Integrated Graphics

Intel® integrated HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

2 x Serial ATA3 interface up to 600MB/s

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 DisplayPort Interface  Onboard DisplayPort connector (optional)
 DVI Interface  Onboard DVI connector (optional)

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

2 x Intel® I210-AT Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCI slot1 x Mini PCI, 1 x PCIe Mini card(Support mSATA), 1 x SIM socket, 1 x SD Card Slot, 1 x CFast Card Socket(optional).

Internal I/O Port

2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x PS/2(Keyboard & Mouse), 1 x SMBUS, 1 x I˛C.

Rear I/O Port

1 x DisplayPort(Note1), 1 x DVI(Note1), 1 x HDMI, 4 x USB3.0, 2 x LAN, 2 x RS232/422/485(optional), 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin Full range 6~30V DC input (with no LVDS, 60W)

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C (32°F~140°F)

Storage within -20 ~ 80°C (-4°F~176°F)

(For LV-67U N3350/N4200 Series)

Operating within -40 ~ 85°C (-40°F~185°F)

Storage within -40 ~ 85°C (-40°F~185°F)

(For LV-67U x7-E3950 Series)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67UPN4

Intel® Pentium® Core Processor N4200 + Heat sink,   support LVDS, HDMI, DVI / DP(Note1), 2 x SATA3

LV-67UTN4

Intel® Pentium® Core Processor N4200 + Heat sink,   support LVDS, HDMI, DVI / Header for VGA or 2nd LVDS (Note2), 2 x SATA3

LV-67UPN3

Intel® Celeron® Core Processor N3350 + Heat sink,   support LVDS, HDMI, DVI / DP(Note1), 2 x SATA3

LV-67UTN3

Intel® Celeron® Core Processor N3350 + Heat sink,   support LVDS, HDMI, DVI / Header for VGA or 2nd LVDS (Note2), 2 x SATA3

LV-67UPE

Intel® Atom® x7-E3950 Processor + Heat sink, support LVDS, HDMI, DVI / DP(Note1), 2 x SATA3

LV-67UTE

Intel® Atom® x7-E3950 Processor + Heat sink, support LVDS, HDMI, DVI / Header for VGA or 2nd LVDS (Note2), 2 x SATA3

ADP-3355

DP to VGA

ADP-3355 NB

DP to VGA, without bracket

ADP-3460

 DP to LVDS (For 2nd LVDS)

DSDM8GB-DDR3L-1600-SO-1.35V



DDR3L SO-DIMM 8GB 1600MHz 204PIN 1.35V

Note1: DVI and DP can't use at the same time

Note2: There are two modules (ADP3355,ADP3460), and you can choose one to support VGA / 2nd LVDS
