LV-67X

Mini-ITX  Motherboard support  8th & 9th Generation Intel® Core™ Processor

Support 8th & 9th Generation Intel® Core™ Desktop Processors.

DDR4 up to 64 GB, onboard HDMI, LVDS, DVI, VGA, optional DisplayPort, 1 x Giga LAN, 1 x Giga

PHY LAN, 4 x USB 2.0, 6 x USB 3.1 Gen2, 2 x RS232/422/485, 4 x RS232, 1 x PS/2, HD Audio, 3 x

SATA3, GPIO, SMBUS, LPC, PCIe X16, 1 x SIM socket, 1 x Mini-PCIe socket (support mSATA),

1 x Half-Size Mini-PCIe socket.

-

Overview

-

Feature

-

Specification

-

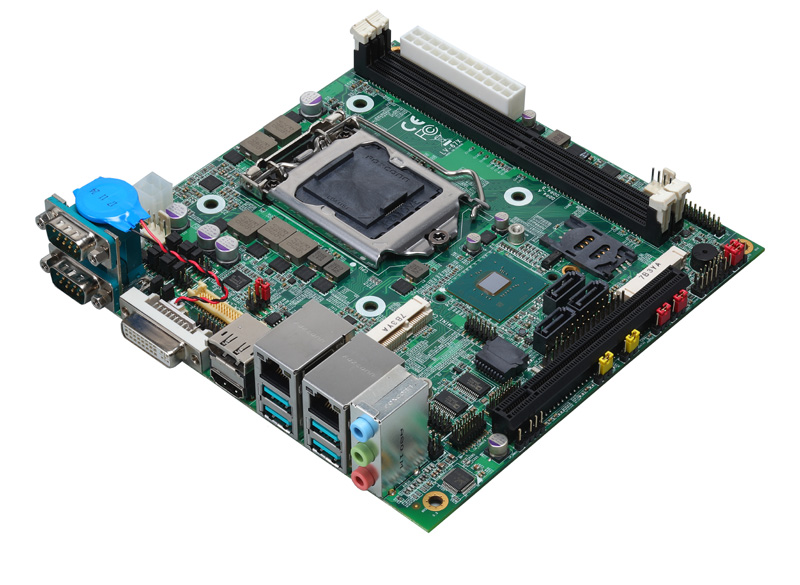

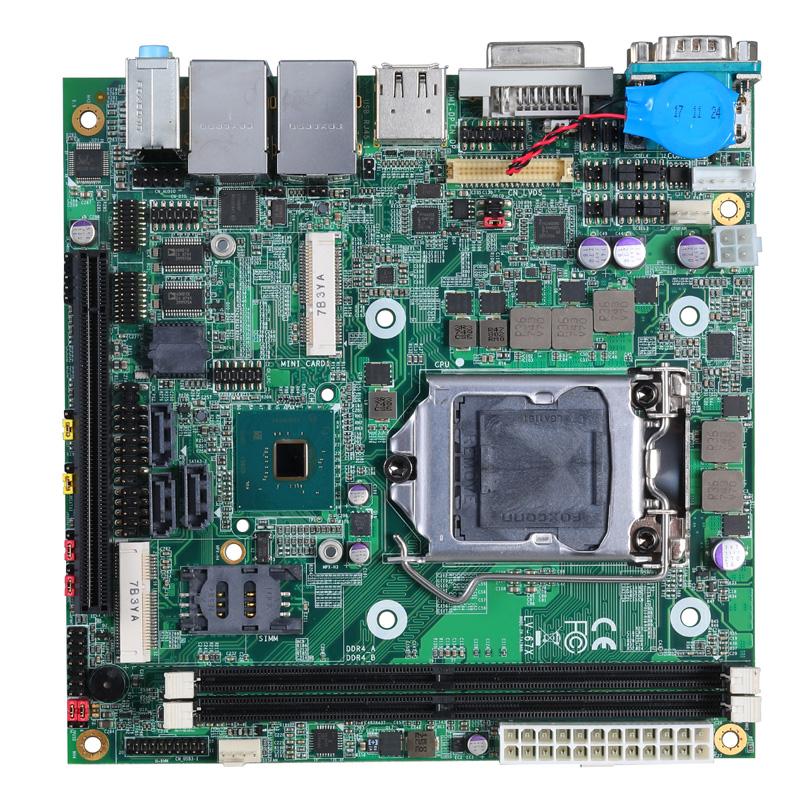

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LV-67X Mini-ITX embedded system board based on Coffee Lake Intel® 8th & 9th Gen Core™

Processor. Intel® desktop platform to support DDR4 memory(Two DDR4 DIMM 2666 MHz up to 64GB).

The platform is based on Intel® Ultra HD Graphics, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one LVDS, one HDMI, one DVI, one VGA and one optional DP, up to three displays can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LV-67X offers lots of features including high-speed data transfer interfaces such as 6 x USB3.1 Gen2 and 3 x SATAIII, equipped with dual Gigabit Ethernet and comes with PS/2 port, 4 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCIE x16 slot, 1 x MiniPCIe socket(Support mSATA), 1 x Half size MiniPCIe socket, 1 x Sim slot.

BackToTop

  Key Feature

• CPU: Support 8th & 9th Gen Intel® Core™ Desktop Coffee Lake series Processor, FCLGA1151 package. (Support up to 65W TDP)

• Chipset: Intel® Q370

• Memory: 2 x DDR4 DIMM 2666 Mhz up to 64GB

• Integrated Graphics: Intel® integrated Ultra HD Graphics.

• LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

• DisplayPort interface: Onboard DisplayPort connector.(optional)

• DVI interface: Onboard DVI connector.

• HDMI interface: Onboard HDMI connector.

• VGA interface: 16-pin connector.

• LAN Interface: 1 x Intel® I219-LM Gigabit PHY LAN, 1 x Intel® I210-AT Gigabit LAN.

• Serial ATA: Support 3 x SATA3.

• Audio: Realtek ALC262 HD Audio.

• Internal I/O: 3 x SATA3, 4 x RS232, 2 x USB3.1 Gen2, 4 x USB2.0, 1 x VGA, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS.

• Rear I/O: 1 x DVI, 1 x HDMI, 1 x DisplayPort(optional), 4 x USB3.1 Gen2, 2 x LAN, 1 x Audio, 2 x RS232/422/485.

• Extended interface: 1 x PCIE X 16 slot, 1 x PCIe Mini card(Support mSATA), 1 x Half-Size PCIE Mini card, 1 x SIM socket.

• GPIO interface: Onboard programmable 8-bit Digital I/O interface.

• External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.

• Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) and 4-pin 12V.

BackToTop

  Specification

Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67X

8th & 9th Generation Intel® Core^™ Desktop Processor, support LVDS, DVI, HDMI, VGA, DP

LV-67XT

8th & 9th Generation Intel® Core^™ Desktop Processor, support LVDS, DVI, HDMI, VGA, Header for 2nd VGA or 2nd LVDS (Note)

ADP-3355

DP to VGA (For 2nd VGA)

ADP-3355 NB

DP to VGA (For 2nd VGA), without bracket

 DP to LVDS (For 2nd LVDS)

Note: There are two modules (ADP-3355,ADP-3460), and you can choose one to support 2nd VGA or 2nd LVDS
