MS-C72
Intel® Core™ i7 / i5 / i3 / Pentium® MicroATX Motherboard

Support Intel® Core i7 / i5 / i3 / Pentium® with Intel® BD82Q57 PCH
16GB DDR3, 2 x Gbit LAN, 10 x USB 2.0, 6 x COM, HD Audio, LPT
6 x SATAII with RAID, PCIe X16/X4, PCI slots,  Mini-PCIe & Mini-PCI socket

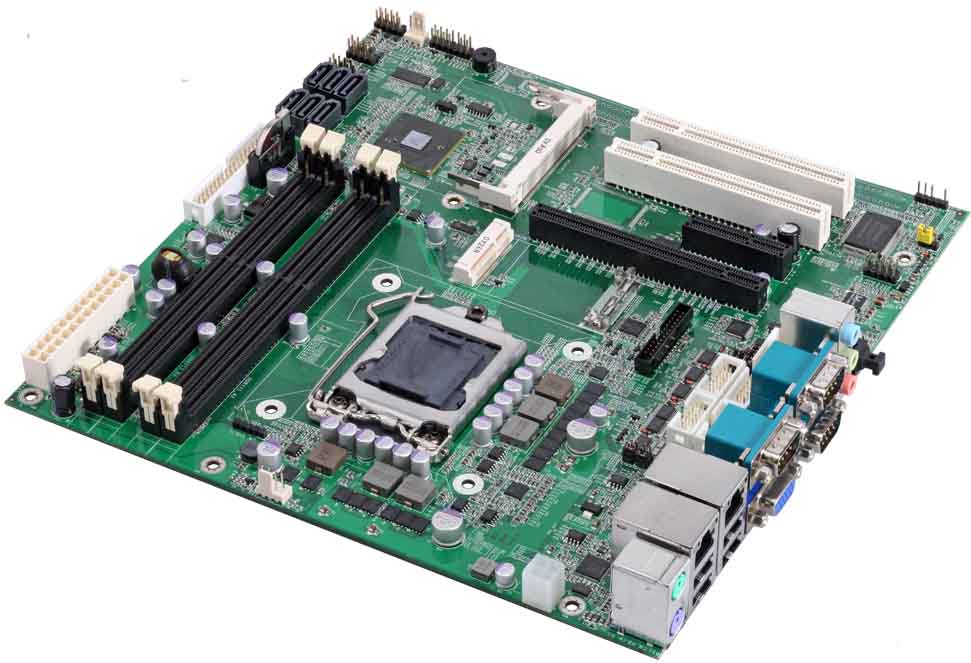

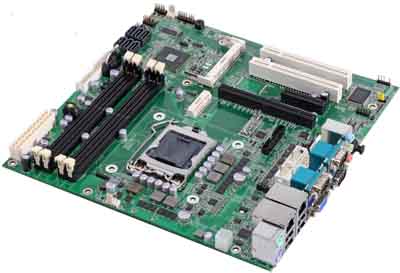

view larger image



-
Overview
-
Feature
-
Specification
-

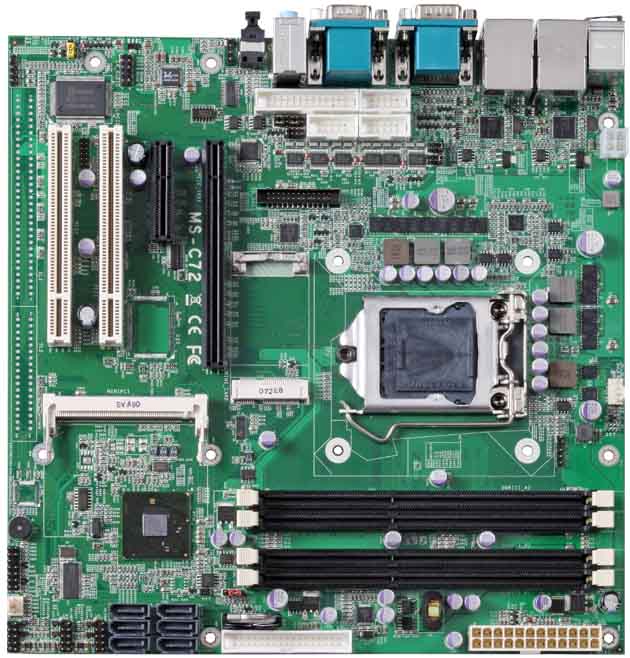

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

MS-C72 that designed for the new Intel Core i7/i5/i3 processors with 1066/1333MHz FSB in the LGA1156 socket. The Micro-ATX mainboard based on intel Q57 chipset, along with a compatible processor that is intel next generation 64-bit,  multi-core processors built on 32 nm Core i5/i3 with HD Graphic function or 45nm i7/i5 without Graphic, this innovative two-chip solution provides Intel Turbo boost technology and Intel Hyper-Threading technology which maximizes performance to match your workload. This platform is designed fully compatible with Windows 7 and ideal for developing high-performance systems for industrial control and automation, PC-based surveillance, gaming, video server, print imaging and digital signage.

COMMELL's  MS-C72 Micro-ATX mainboard is provided four DIMM socket for up to 16GB of DDR3 1066/1333 MT/s data transfer rate dual-channel system memory, When along with Intel 32nm Core i5/i3 processor that provided  Intel HD graphic function with Dynamic Video memory Technology, MPG2/WMV9/VC1/AVC hardware acceleration, advanced pixel adaptive De-Interlacing and High quality Scaling.

BackToTop

  Key Feature
  • CPUIntel® Core™ i7/ i5/ i3/ Pentium desktop in the LGA1156 socket.

  • MemoryFour DDR3 1066/1333 MT/s DIMM up to 16 GB.

  • Chipset: Intel® BD82Q57 PCH.

  • Display InterfaceIntel® 32nm Core™ i5/i3 integrated HD Graphics Technology, VGA and DVI output interface.

  • LAN Interface2 x Intel® 82574L Giga LAN.

  • Serial ATA: Support 6 x SATAII up to 300MB/s with RAID 0,1,5,10.

  • Audio: Intel® Q57 integrated with Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 10 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.

  • Extended interface: PCIe X16/X4, 2 x PCI , 1 x Mini-PCIe & 1 x Mini-PCI socket.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • WatchDog Timer: 256-level generates NMI or system reset programmable watchdog timer.

BackToTop

  Specification


Form Factor

MicroATX Motherboard

Processor

Intel® Core i7 / i5 / i3 / Pentium® Desktop processor

Package Type: FCLGA1156

Bus Speed: 2.5GT/s DMI

Memory

4 x 240-pin DDR3 1066/1333 MT/s DIMM up to 16 GB

Chipset

Intel® BD82Q57 PCH (Platform Controller Hub)

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 1.0 compliant, supports power saving mode

Serial ATA Interface

Intel® Q57 PCH built-in 6 x Serial ATA II interface up to 300MB/s

Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology

VGA/DVI Interface

Intel® Core™ integrated HD Graphics Technology

Video Memory

Up to 1.7GB shared with system memory

Audio Interface

Intel® integrated Q57 with Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82574L Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIe X16, 1 x PCIe X4, 2 x PCI,  1 x Mini-PCIe, 1 x Mini-PCI

Internal I/O Port

1 x RS232/422/485  & 2 x RS232, 1 x GPIO, 1 x CDIN, 1 x IrDA

1 x Audio, 1 x IrDA, 6 x USB2.0, 1 x LPT, 1 x FDD, 1 x DVI

External I/O Port

1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0,

1 x Audio, 3 x RS232, 1 x SPDIF

External Audio

Line-in, MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF

Power Requirement

Standard 24-pin ATX power supply and P4 4-pin 12V.

(20-pin is compatible)

Board Dimension

244mm x 244 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

MS-C72

MicroATX motherboard support Intel® Core i7 / i5 / i3 / Pentium® Desktop processor
