MPX-885
1~ 8-ch Mini-PCIe video capture card with Software Develop Kit

 Features

- Mini-PCIe interface

- Up to 8-channel Video inputs

- Support D1 , Half-D1 , CIF resolution

- Windows XP,7 Driver & SDK provide

Specifications

Form Factor

Mini-PCIe Interface

Input Type

D-Type: DB9 x 1 for Video

Video Input (s)

4 (BNC) - up to 8 (optional)

Total Recording Rate

30 fps (NTSC) , 25 fps (PAL)

Audio Input (s)

4 (RCA) - (optional)

Video Resolution - NTSC/PAL

D1 , Half-D1 , CIF

Software

Windows XP,7(32bit) driver / SDK

Support GPIO

No

Dimensions

51mm x 30mm

User's Manual

User's manual  ,Datasheet, Driver

Accessories



                4-ch BNC video cable                       D-sub9 cable w/ bracket x 1

Ordering Code

MPX-885

4 channel Mini-PCIe capture card with SDK

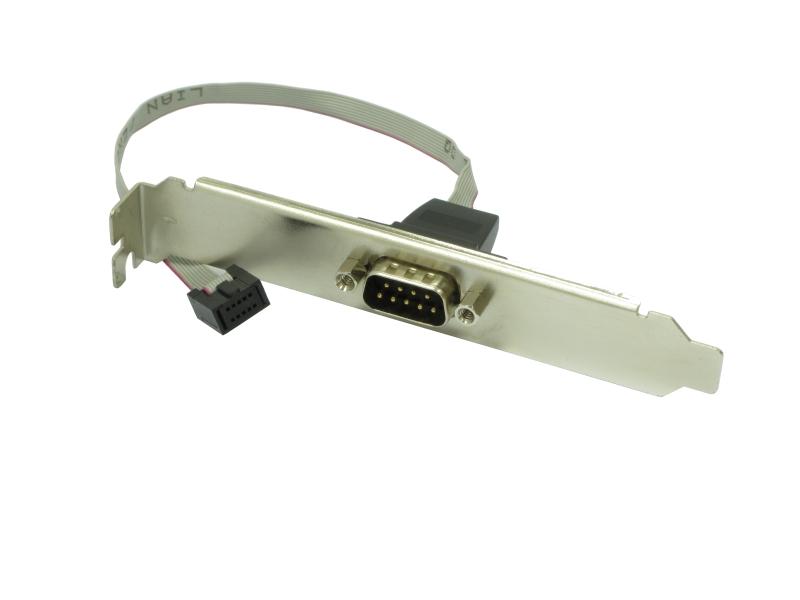

OALES-BKU1

1 x 10-pin header to 1 x D-sub 9 Cable (MPX-885 Audio)

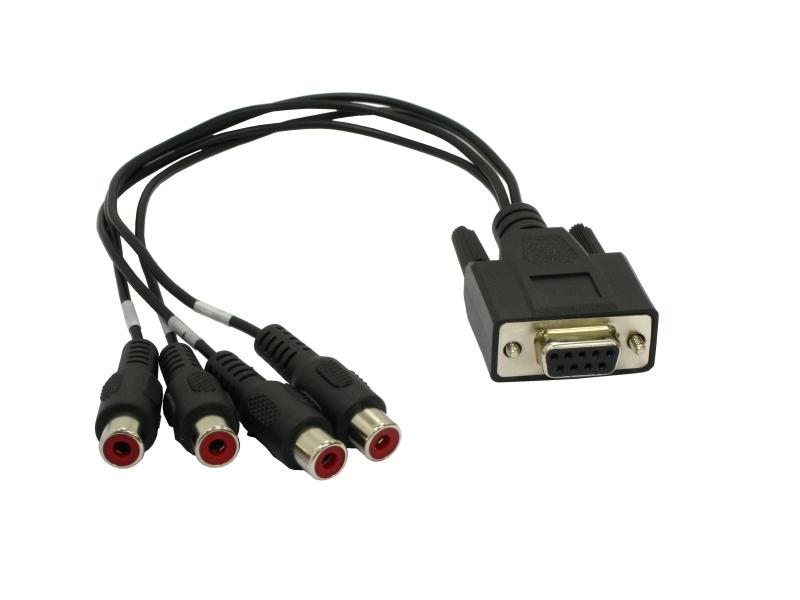

OALDB9-AUD4-885

1 x D-sub 9 to 4 channel Audio Cable (MPX-885 Audio)

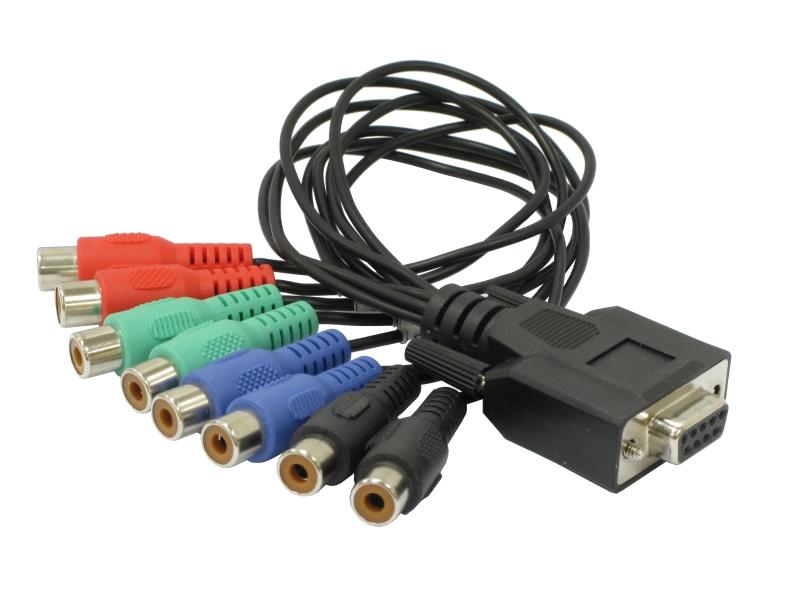

OALDB9-HDTV-885

1 x D-sub 9 to 2 x YPbPr & 2 x Composite Cable (MPX-885 Video)

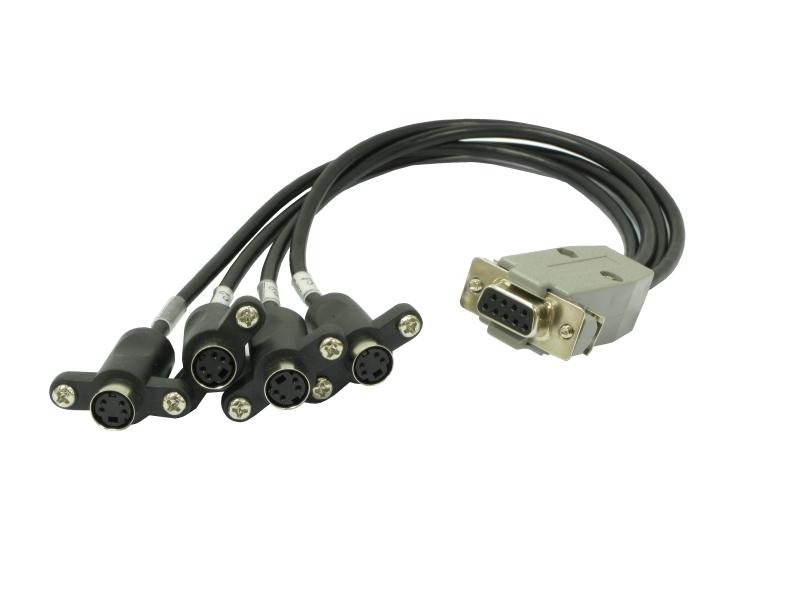

OALDB9-4S-885

1 x D-sub 9 to 4 x S-Video Cable (MPX-885 Video)

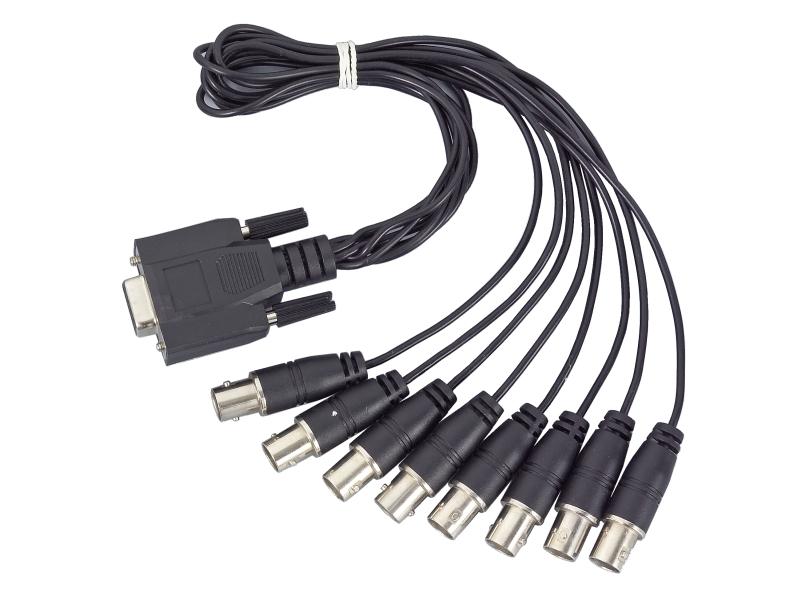

OALBNCE8

1 x D-sub 9 to 8 x BNC connector Cable (MPX-885 Video)

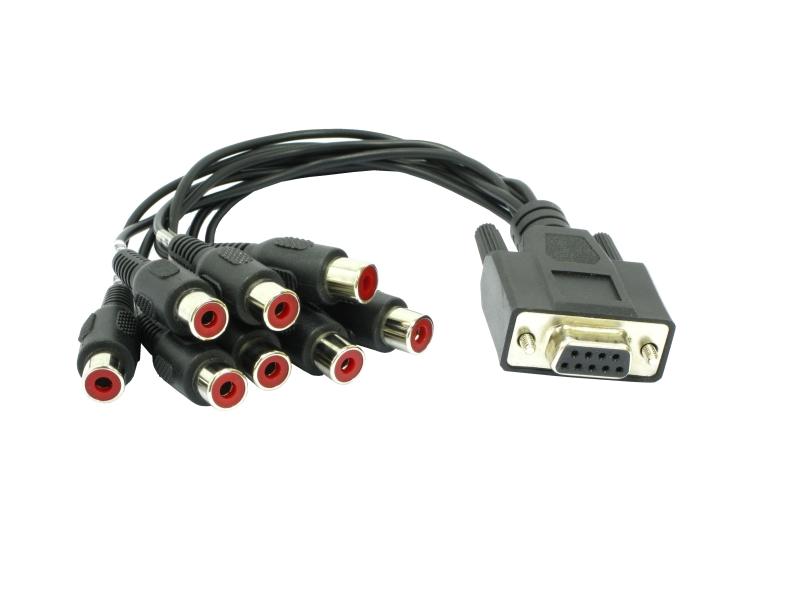

OALDB9-AUD8

1 x D-sub 9 to 8 x Composite Cable (MPX-885 Video)

Before purchasing, please download to check compatibility chart here !
