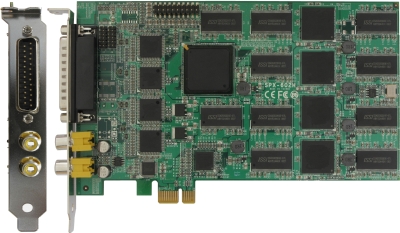

> SPX-602H
|
|
..........................................................................................................................................
|
H.264 Hardware compression Card with 16 ports Video & Audio inputs
SPX-602H not supports Intel® Q57, QM57, Q67, QM67, Q77, QM77 Chipset productions in this moment.
|
|
|
|
Features
|
|
-
PCI Express interface
-
H.264 Hardware Compression
- 16-ch Video
& Audio inputs
- Support
D1, Real-time
-
Support Windows XP, Vista 32-bit |
|
|
|
Specifications
|
|
Form
Factor
|
PCI
Express x1
|
|
Compression
Format |
H.264
Hardware |
|
Video
|
Input
|
16
channels |
|
Connector
Type |
BNC |
|
Display
Rate |
16-ch
: Total 480 fps (NTSC) / 400 fps (PAL) @ D1 |
|
Recording
Rate |
16-ch
: Total 480 fps (NTSC) / 400 fps (PAL) @ D1 |
|
Audio
|
Input
|
16
channels |
|
Connector
Type |
RCA
(Optional) |
|
Compression
Format |
G.721 |
|
TV-out
|
Support
SPOT and CALL Monitor
|
|
GPIO
|
16-bit
(Available soon!) |
|
OS
|
Windows
XP, Vista 32-bit |
|
Software
|
Windows
SDK, Networking Streaming SDK |
|
Dimensions
|
177.65
mm x 111.15 mm
|
|
Support
and Download
|
Manual
/ Datasheet
|
Driver
& SDK / DirectShow
|
|
|
|
|
|
|
Accessories
|

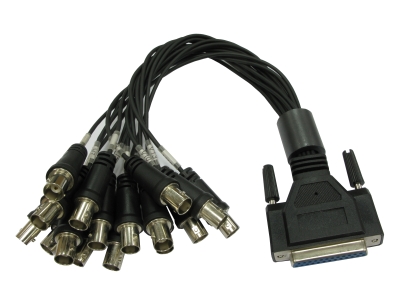

16-ch BNC video
cable
16-ch RCA audio cable kit (Optional) |
|
|
Ordering
Code
|
|
SPX-602H
|
16-ch
H.264 PCIe video capture card,
with
video cable kit, and SDK
|
|
SPX-602HA
|
16-ch
H.264 PCIe video capture card,
with
video cable kit, SDK, and DVR software
|
|

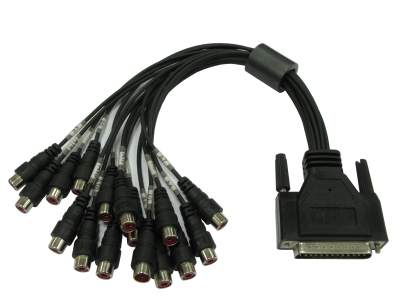

OALDB25-AUD16
& OAL1P-601H
|
16-ch
audio cable kit for SPX-602H
|
|
|
|
|
|
|
|
