CMB-374/371/370/365 Fanless system







- Specification

- Ordering Guide

- Datasheet

- User's manual







                      Large Image

Specifications
Form Factor  Fanless barebone system
3.5" Board   Inside Motherboard can be :

 LE-374          :LE-374 with onboard Intel Atom N270(1.6GHz)

 LS-371U25    : LS-371 with onboard Intel U2500 CPU

 LE-370PM14 : LE-370 with onboard P-M 1.4 GHz CPU

 LE-370CM6   : LE-370 with onboard C-M 600 MHz CPU

 LE-365D        : LE-365D with onboard VIA Eden 1.0 GHz

 LE-365E5D    : LE-365E5D with onboard VIA Eden 500 MHz

Drive Bay  Internal 1 x 2.5" HDD
Riser card  No
Front Panel  System Reset switch

 Power On/Off

 HDD LED for activity

Mounting  Wall mounting / Desk
Rear Side I/O

 Depend on 3.5 SBC rear IO

Environment  Operating Temperature: 0 ~ 40C
Power supply  DC input for DC jack
Dimension  195 x 110 x 80 mm
Weight  Approx. 1.41 kg (Without HDD)



Ordering Guide

CMB-374D

Barebone with LE-374 and SPD-080-12, and with DVI

( Support 2.5" IDE HDD only )

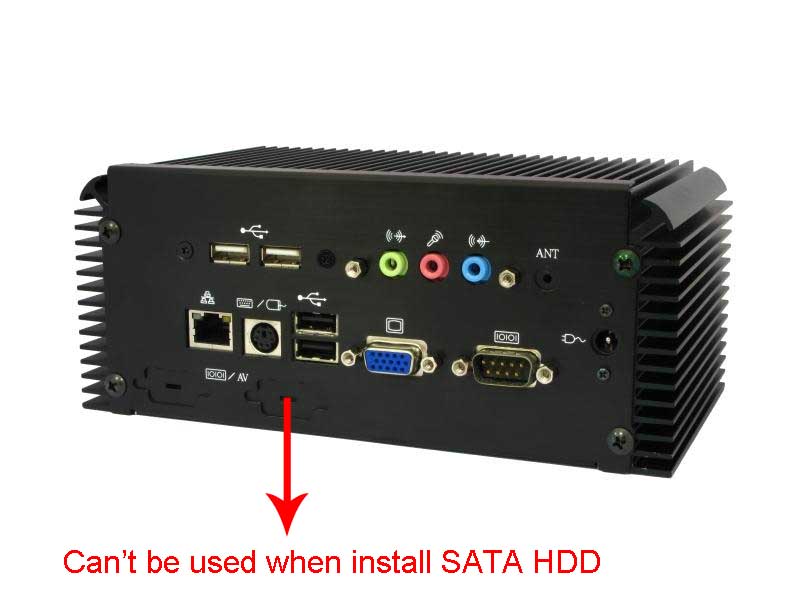

CMB-374S

Barebone with LE-374 and SPD-080-12, But without DVI

( Support 2.5" SATA or 2.5" IDE HDD )

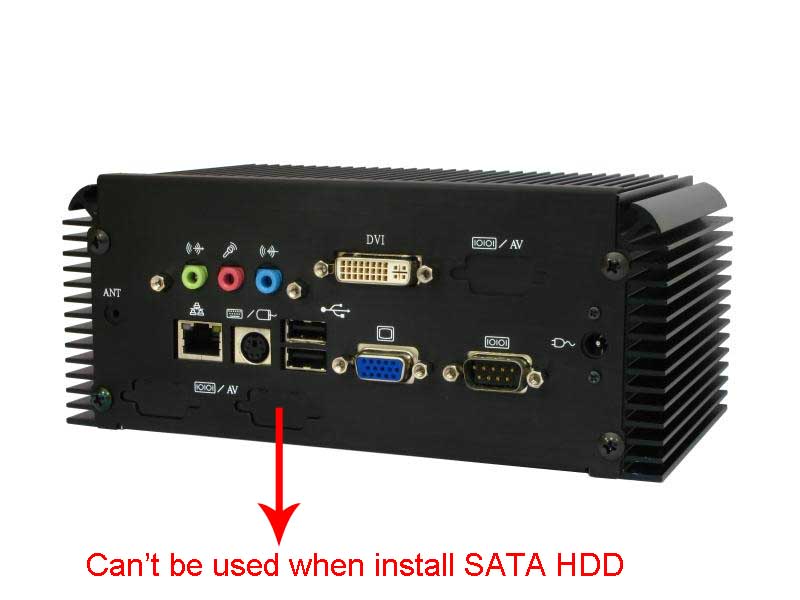

CMB-374DS

Barebone with LE-374 and SPD-080-12, and with DVI

( Support 2.5" SATA or 2.5" IDE HDD )

CMB-371U25

Barebone with LS-371 & U2500 CPU and SPD-080-12

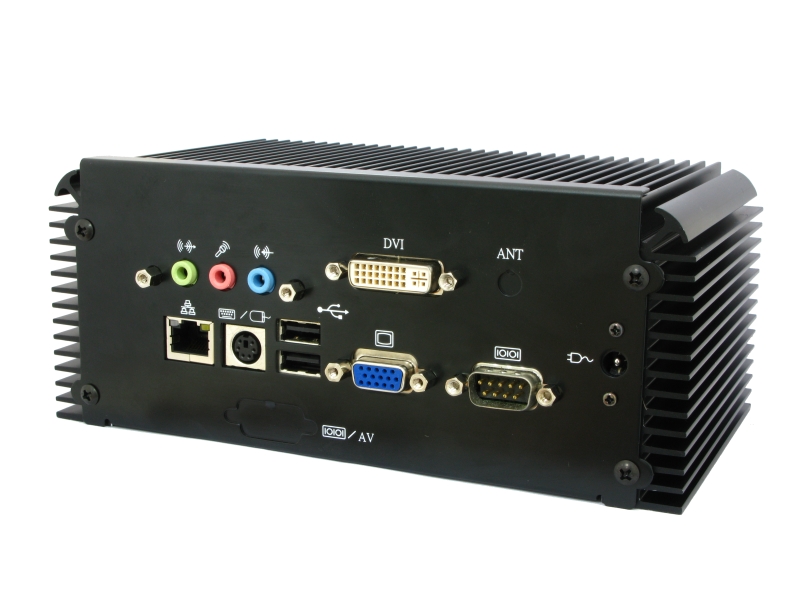

CMB-371DU25

The same as CMB-371U25 but with DVI output in the rear IO plate

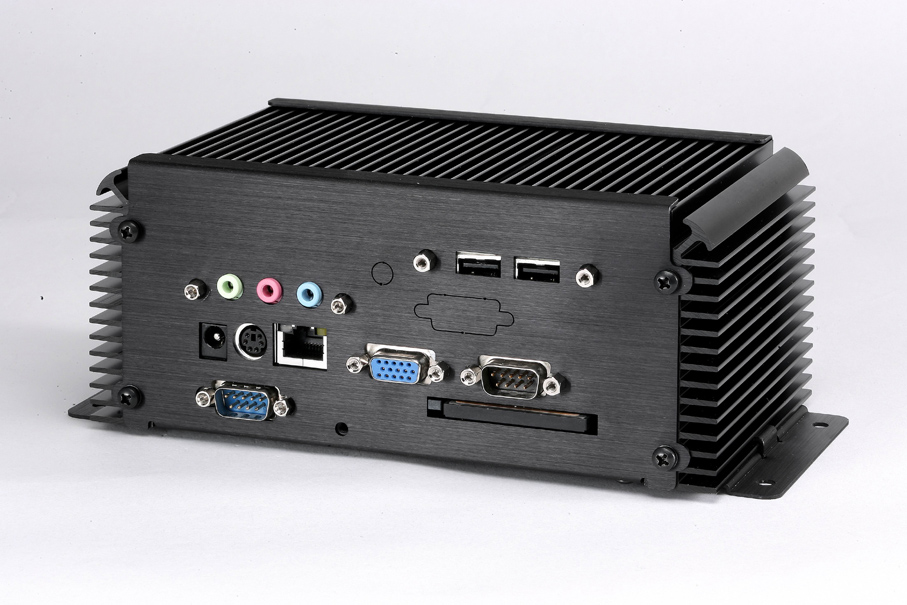

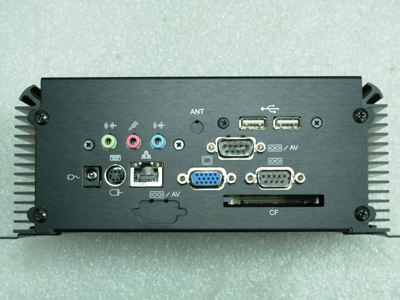

CMB-370PM14

Barebone with LE-370 & Intel P-M 1.4 CPU and SPD-080-12

CMB-370CM6

Barebone with LE-370 & Intel C-M 600 CPU and SPD-080-12

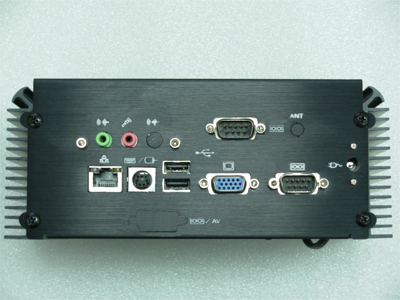

CMB-365

Barebone with LE-365D and SPD-080-12, But without DVI

CMB-365E5

The same as CMB-365, but change CPU to VIA Eden 500 MHz CPU

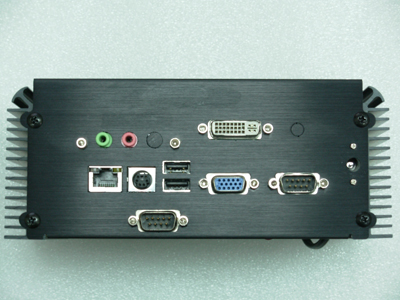

CMB-365D

The same as CMB-365 but with DVI output in the rear IO plate

CMB-365E5D

The same as CMB-365D, but change CPU to VIA Eden 500 MHz CPU
