CMB-37D


Fanless barebone system support  Intel® Celeron™  J1900 / N2930 , Atom 3845 Mobile processor

-

Overview

-

Features

- Product Image
- Ordering Guide
- Datasheet
  - User's Manual

Overview



COMMELL's CMB-37D is a high-performance Fanless barebone systems which support Intel® Celeron™ J1900 / N2930 , Atom™ 3845 Mobile processor. CMB-37D is suitable for industrial application like industrial control and automation, retail, gaming, print imaging .......

BackToTop

Features

dh
Form Factor  Fanless system
Construction  Heavy-Duty steel
3.5" Board / CPU

 Inside Motherboard : LE-37D

 Support CPU : 4th generation Intel® Celeron™  J1900 / N2930 , Atom  3845 mobile processor

Drive Bay

 Internal  1 x 2.5" HDD space

Motherboard Extensive slot

 1 x SIM Socket

 1 x mSATA (Optional)

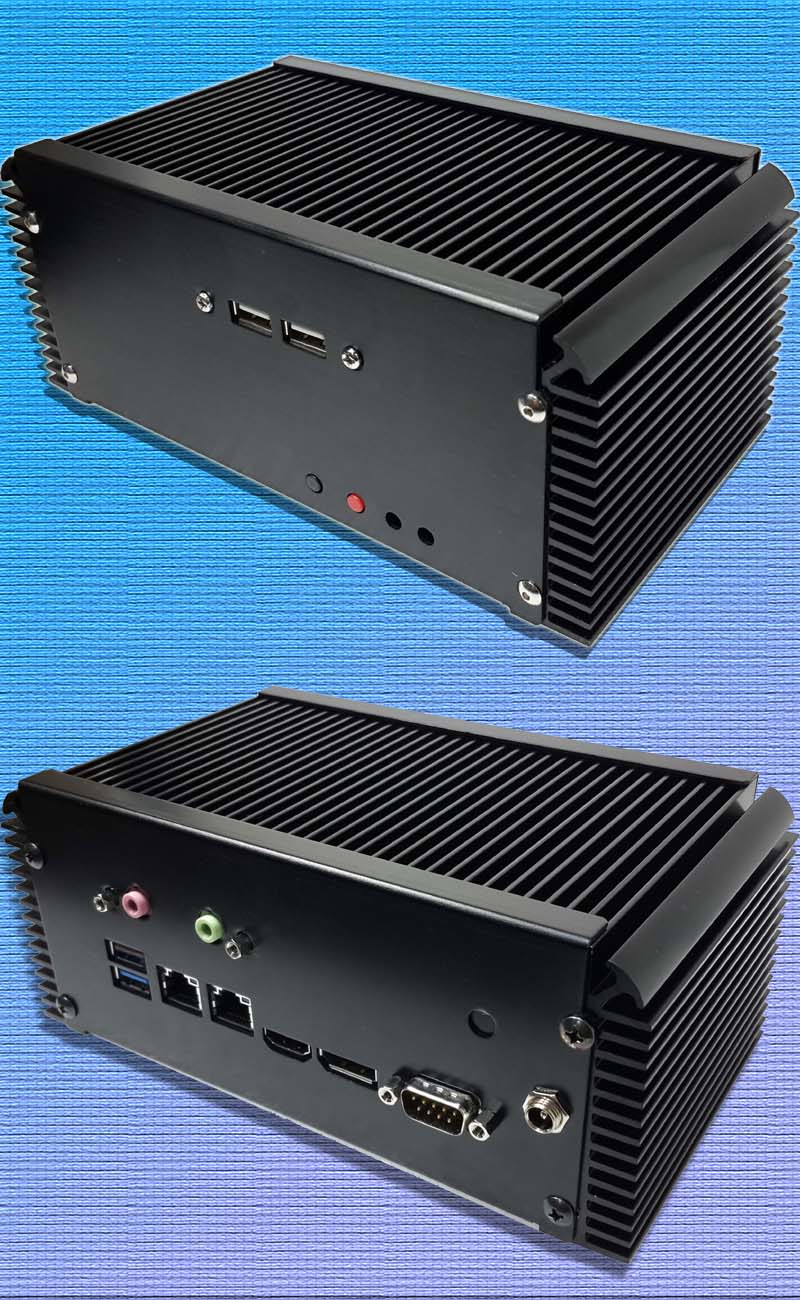

Front Panel

 Power On / Off switch

 Reset switch

 LED for Power On/Off and HDD activity

 2 x USB 2.0

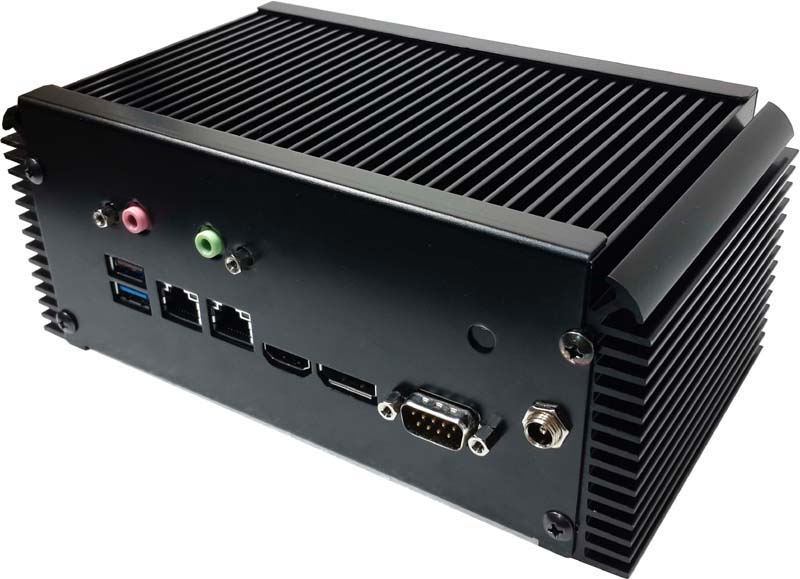

Rear Side I/O

 1 x DC jack

 1 x Audio

 1 x Display port

 1 x DVI

 1 x RS232

 1 x USB 2.0

 1 x USB 3.0

 2 x RJ-45 Intel® Giga LAN

 1 x Antenna

Environment  Operating Temperature: 0 ~ 40ºC
Power supply  6~24V DC input
Dimension  195 x 110 x 80 mm

BackToTop

Ordering Guide



CMB-37D

Barebone with LE-37D 6~27V DC ipput

Processor

Intel® Celeron™  J1900 / N2930 , Atom 3845 mobile processor

Memory

DDR3L 1066/1333 SO-DIMM for 1.0 / 2.0 / 4.0 / 8.0 GB
