CMB-570E


Barebone support  Intel® Core™ 2 Duo mobile and 4 x LAN

-

Overview

-

Features

- Product Image
- Ordering Guide
- Datasheet
  - User's Manual

Overview



COMMELL's CMB-570E is a compact 5.25" drive-size embedded multiple Ethernet platform

 based on Intel® Core™ 2 Duo mobile, and offers the Intel PRO/1000 GbE and four Ethernet interfaces for industrial multiple Ethernet application, such as firewall, VPN and all-in-one server solution. The CMB-570E compact size, bootable CompactFlash socket also provide the suitable hardware solution for the small business / SOHO firewall / VPN market and all-in-one internet server application.



In addition to the Core 2 Duo processor options, the CMB-570E is packed full of advanced features such as 4 x Gigabit LAN, up to 3GB of DDR2 RAM, 4 x USB 2.0 and simple 8 - 24V DC power input requirements, making the CMB-570E the perfect solution for almost any high-end embedded processing application.

BackToTop

Features

dh
Form Factor  5.25" Barebone
Construction  Heavy-duty Steel
5.25" SBC  Inside Motherboard can be :

 LS-570E : support Intel® Core™ 2 Duo mobile in Socket M

Drive Bay

 Internal 1 x CompactFalsh Card and 1 x 2.5" HDD Space

Riser card  No
Thermal Control  1 x System Fan
Front Panel  Power On/Off , reset and HDD activity LED

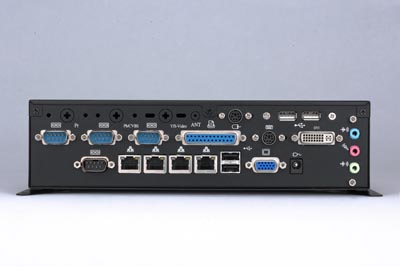

Rear Side I/O

 4 x RJ45 LAN , 1 x DC input , 4 x COM , 4 x USB , 1 x VGA , 1 x LPT

 Key/Mouse , Line-In / Mic-In / Line-Out , 1 x Antenna , 1  x DVI .

Environment  Operating Temperature: 0 ~ 40°C
Power supply  DC 12V input
Dimension  250 x 65 x 160 mm (W x H x D)
Weight  1.75 kgw , (Without HDD )

BackToTop

Ordering Guide



CMB-570E

 Barebone with LS-570E and SPD-080-12 12V/80W adapter
