CMB-574/CMB-576
CMB-574
Barebone
support 2nd generation Intel® Core™ i7 / i5 / i3
Mobile processor With
6 x Intel® Gigabit
ethernet , 6 x COM , DC 9V ~ 24V input
----------------------------------------------------------------------------------------------------------------------------------------------
CMB-576
Barebone
support 3rd generation Intel® Core™ i7 / i5 / i3
Mobile processor With
6 x Intel® Gigabit
ethernet , 6 x COM , DC 9V ~ 24V input
|
|
Overview
|
|
COMMELL's
CMB-574/CMB576 are compact 5.25" drive-size embedded
multiple Ethernet platform based on
2nd or 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor
in PGA 988B, and offering 6 x Intel®
82574L Gigabit Ethernet interfaces for industrial multiple Ethernet
applications such as firewall, mainstream IDS/IPS,
Anti-virus, VPN gateway and UTM applications.
|
|
BackToTop |
|
Features
|
dh
|
Form Factor
|
5.25"
Barebone
|
|
Construction
|
Heavy-duty
Steel
|
|
5.25" SBC
|
Inside
Motherboard can be :
LS-574TXD
: Support 2nd
generation Intel® Core™ i7 / i5 / i3 Mobile
processor
in PGA 988B
------------------------------------------------------------------------------------------------------
LS-576TXD
: Support 3rd
generation Intel® Core™ i7 / i5 / i3 Mobile
processor
in PGA 988B
|
|
Memory
|
2
x DDR3 1066/1333/1600 SO-DIMM up to 16 GB |
|
Drive Bay
|
1 x 2.5" HDD Space |
|
Riser card
|
No
|
|
Thermal Control
|
1 x System
Fan
|
|

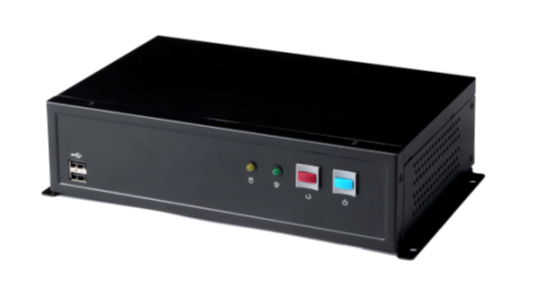

Front Panel
|
Power On/Off
, reset and HDD activity LED
|
|

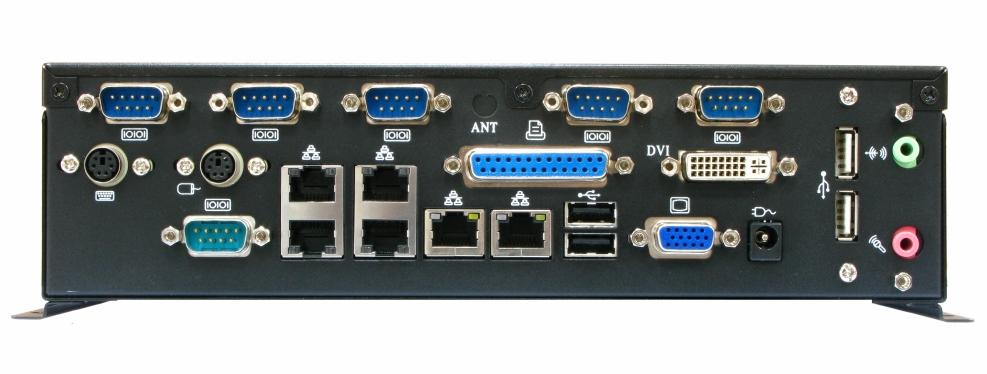

Rear Side I/O
|
6
x RJ45 LAN, 1 x DC input, 4 x USB, 1 x VGA, 1
x LPT, 1
x Key/Mouse
Line-In / Mic-In / Line-Out, 1 x Antenna, 1 x DVI,
6
x COM
|
|
Environment
|
Operating
Temperature: 0 ~ 40°C
|
|
Power supply
|
DC
9V ~24V input ( Ship with 19V/120W adapter )
|
|
Dimension
|
250 x 65 x 160 mm (W x H x D)
|
|
Weight
|
Approx. 1.75
kg (Without HDD)
|
|
|
BackToTop |
|
Ordering Guide
|
|
|
|
CMB-574
|
Barebone
with LS-574TXD board , 120W PSU & CPU cooling Fan
|
|
CMB-576
|
Barebone
with LS-576TXD board , 120W PSU & CPU cooling Fan
|
|
Processor
|
2nd(CMB-574)
/3rd(CMB-576)
generation Intel®
Core™ i7 / i5 / i3 mobile processor
|
|
Memory
|
DDR3
1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 /
8.0 GB
|
|
Storage
device
|
2.5"
SATA
HDD for 160GB , 320GB , 500GB
|
|
BackToTop |
