CMB-67H-01 /CMB-67G-01

CMB-67K-01/CMB-67J-01


Mini barebone system support  Intel® Core™  i7/ i5/i3 processor

-

Overview

-

Features

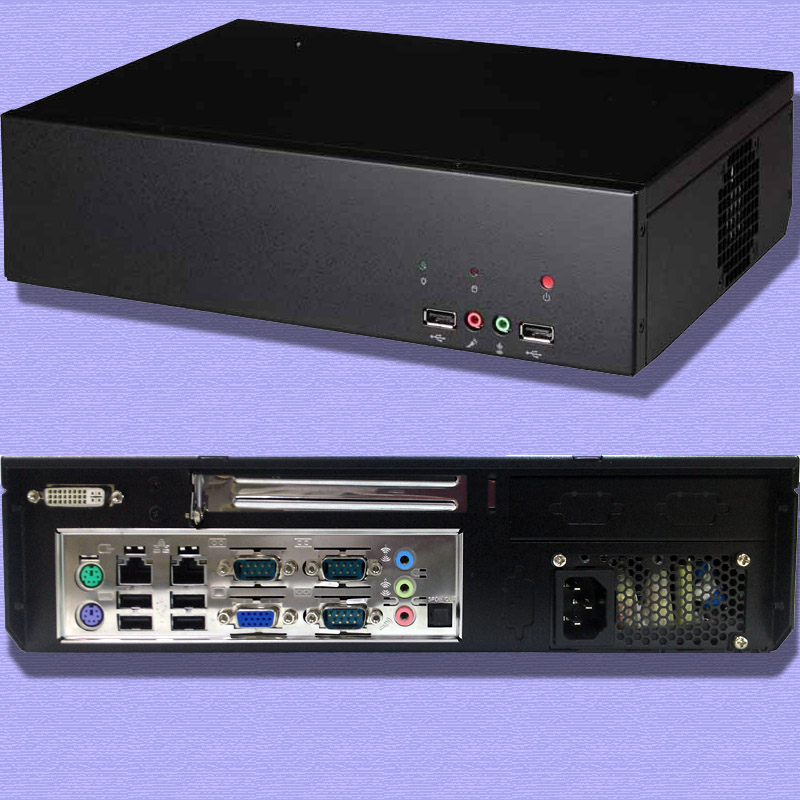

- Product Image
- Ordering Guide
- Datasheet-CMB-67H-01CMB-67G-01

Overview



The product is a high-performance Mini-ITX barebone systems which support Intel® Core™  i7/i5/i3 processor , and comes with 1 x PCI-Express X16 slot &  2 x Mini-PCIe expansion slots to allow customer to add Mini-PCIe cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card. suitable for industrial application like industrial  control and automation, retail, gaming, print imaging .......

BackToTop

Features

dh
Form Factor  Mini barebone system
Construction  Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LV-67HTXD

 Support CPU : 2nd generation Intel® Core™ i7/i5/i3 mobile processor

-------------------------------------------------------------------------------------------------------

 Inside Motherboard : LV-67G

 Support CPU : 2nd generation Intel® Core™  i7/i5/i3 desktop processor

-------------------------------------------------------------------------------------------------------

 Inside Motherboard : LV-67K

 Support CPU : 3rd generation Intel® Core™ i7/i5/i3 mobile processor

-------------------------------------------------------------------------------------------------------

 Inside Motherboard : LV-67J

 Support CPU : 3rd generation Intel® Core™  i7/i5/i3 desktop processor

Drive Bay

 1 x internal 3.5” HDD or 2 x internal 2.5” HDD space or

 2 x external 2.5” HDD space by drive cage

Extensive slot

 1 x PCI-Express X16 slot , 2 x Mini-PCIe sockets

Thermal Control  1 x  6 cm system cooling Fan
Front Panel

 Power On / Off switch

 LED for Power On/Off and HDD activity

 2 x USB ports

 Mic-in / Ear phone

Rear Side I/O

 1 x PS/2 Keyboard/Mouse

 1 x VGA

 1 x DVI

 1 x RS232/422/485 + 2 x RS232

 4 x USB 2.0 CMB-67H / CMB-67G

( or 4 x USB 3.0 CMB-67K / CMB-67J )

 2 x RJ-45 Intel® Giga LAN

 2 x cutout for DB9 COM port ( Can't be used when use 3.5" HDD or

 external 2.5" HDD )

 1 x cutout for antenna

Environment  Operating Temperature: 0 ~ 40ºC
Power supply  250 watt power supply
Dimension  300 x 220 x 80 mm

BackToTop

Ordering Guide



CMB-67H-01

Barebone with LV-67HTXD CPU Fan, 250W power supply & PCIe riser card

Processor

Intel® Core™  i7-2710QE / i5-2510E / i3-2330E mobile processor

Memory

DDR3 1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB





CMB-67G-01

Barebone with LV-67G, CPU Fan, 250W power supply & PCIe riser card

Processor

Intel® Core™  i7-2600 / i5-2400 / i3-2120 mobile processor

Memory

DDR3 1066/1333 for 1.0GB / 2.0 GB / 4.0 / 8.0 GB





CMB-67K-01

Barebone with LV-67K CPU Fan, 250W power supply & PCIe riser card





CMB-67J-01

Barebone with LV-67J CPU Fan, 250W power supply & PCIe riser card
