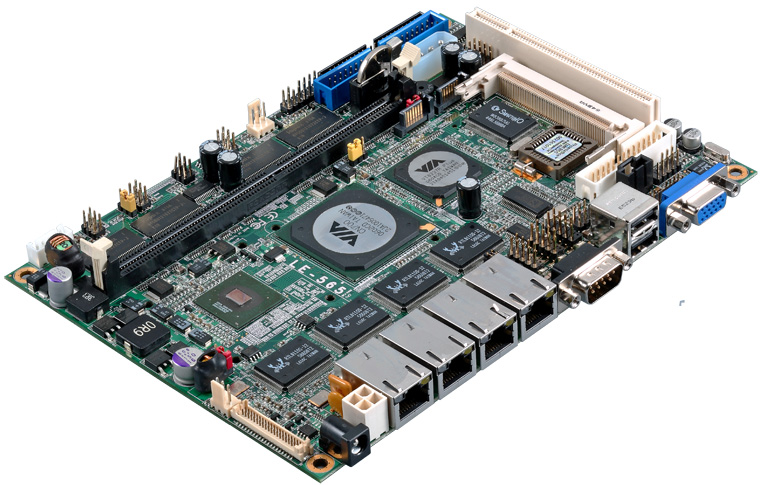

LE-565 Onboard VIA Eden 1.0 GHz SBC with 4 x Giga LAN

view larger image


Product Image
Ordering Guide
Datasheet (PDF format)
Technical Document


Onboard VIA Eden 1.0 GHz processor

   Chipset     VIA CN700 & VT8237R+


1 x DDR up to 1.0 GB ( Optional 256 MB SDRAM onboard )

LAN Interface

4 x Realtek RTL8110S-32 Gigabit Ethernet

Solid State Disk

    Dual Channels support 4 ATAPI devices up to UDMA/133

SATA Interface

2 x Serial ATA interfaces with 150MB/s transfer rate

Extend Interface

1 x PCI slot & 1 x Min-PCI socket

External I/O Port

4 x RJ45 LAN ports, 1 x DB15 VGA port, 2 x USB 2.0 ports, 1 x COM , DC input connector

Power Requirement

DC 12V input

    Board Dimension     146mm x 203 mm (L x W)

Operation Temp.

 0 ~ 60C (32 ~ 140F)


Download Datasheet @ PDF format


  Ordering Guide
   LE-565-P  Onboard VIA Eden 1.0 GHz SBC with 4 x Gigabit LAN
   LE-565-256  Onboard VIA Eden 1.0 GHz & 256 MB SDRAM SBC with 4 x Gigabit LAN
   CMB-565-P  Barebone system with LE-565-P SBC & 12V/80W adapter


 Barebone system with LE-565-256 SBC & 12V/80W adapter
