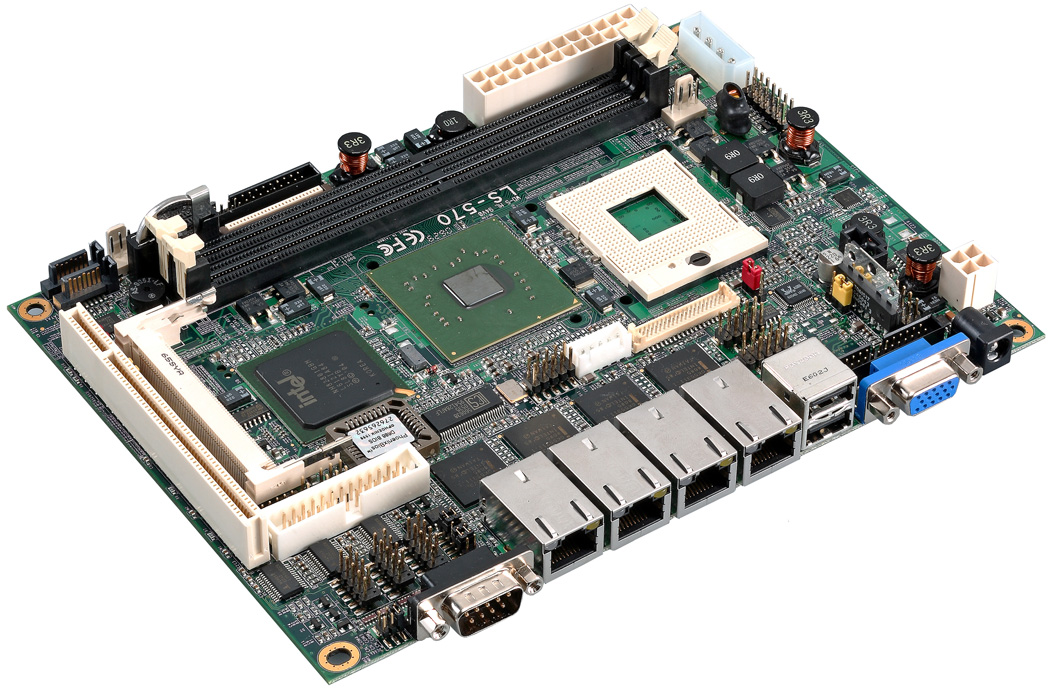

LS-570 Intel® Core™ 2 Duo mobile SBC with 4 x Giga LAN

view larger image



-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Specification

CPU

Intel® Core™ 2 Duo mobile with Socket M @ 667 MHz FSB

    Chipset     Intel 945GME & ICH7M

Memory

2 x DDR2 533/667 MHz up to 3.0 GB

LAN Interface

4 x Intel® 82573L Gigabit Ethernet

Solid State Disk

IDE1 supports 44-pin DiskOnModule +5V power supply

CompactFlash Type-II on the solder side.

(CompactFlash shared with IDE bus)

SATA Interface

2 x Serial ATA interfaces with 150MB/s transfer rate

Extend Interface

1 x PCI slot & 1 x Min-PCI socket

External I/O Port

4 x RJ45 LAN ports, 1 x DB15 VGA port, 2 x USB 2.0 ports, 1 x COM , DC input connector

Power Requirement

Standard 20-pin ATX power supply or

8V ~ 24V full range DC input

    Board Dimension     146mm x 203 mm (L x W)

Operation Temp.

 0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide
    LS-570E  Intel® Core™ 2 Duo mobile SBC with 4 x Gigabit Ethernet
    CMB-570E  Barebone system with LS-570E SBC & 12V/80W adapter
