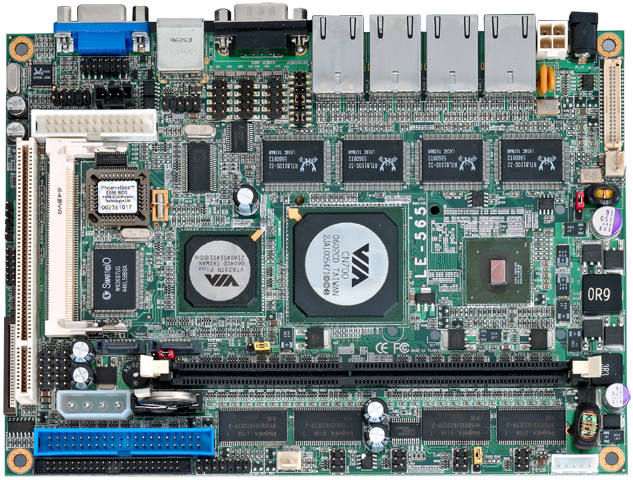

LE-565

5.25" Fanless Miniboard with VIA V4 Eden CPU & VIA CN700 , VT8237R+
Chipset, 1GB DDR, 4 x Gigabit LAN , LVDS interface, 6 x USB 2.0, 4 x COM,
AC97 3D Audio, 8-bit digital I/O, LPT, FDD, Mini-PCI socket , DC 12V ,
CompactFlash socket .

View Large image
-

Overview

-

Feature

-

Specification

- Product Image
- Ordering Guide
- Datasheet (PDF Format)
- Technical Document

  Overview

COMMELL's 5.25" Embedded Fanless Miniboard - LE-565 meets the requirements for enterprise and residential network applications. this single board consists the highly efficient VIA V4 Eden 1GHz processor, drawing a Max. power 5W with VIA Padlock Security Engine and VIA CN700 Enhanced digital media chipset, features a robust shared memory architecture and support fir high bandwidth DDR 400 memory, combined with VIA VT8237R+ South Bridge, including native Serial ATA and V-RAID, with support for RAID 0 / 1 .

BackToTop



  Key Feature

  • Powerful embedded computing capacity with VIA V4 Eden 1GHz CPU

  • Onboard optional 256 MB DDR SDRAM for embedded / anti-vibration / low profile embedded applications

  • Integrated 3D/2D Graphics controller and max up to 64 MB shared with system memory

  • 4 x 10/100/1000BASE-T Ethernet interface

  • 4 serial and 1 parallel ports for POS / multiple I/O application.

  • Expansible Interface: One PCI expansive slot supports up to 2 PCI add-on cards via an additional riser card and one Mini-PCI socket

  • Integrated CompactFlash interface supports CFC (Compact Flash Card)

BackToTop


  Specification
Form Factor 5.25" Miniboard, 146 x 203 mm or 5.75" x 8.00"
CPU

Onboard embedded VIA V4 Eden 1 GHz CPU
Chipset VIA CN700 & VT8237R+
Memory

Onboard optional 256 MB DDR SDRAM and one 184-pin slot supports additional 1GB DDR SDRAM.
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generate system reset with 1 to 255 Sec./Min of time out value
PCI Enhanced IDE

Dual Channels support 4 ATAPI devices up to UDMA/133. One 40-pin and one 44-pin IDE Port for 2.5" notebook-size HDD, slim CD-ROM/DVD/CD-RW and cable free DOM (DiskOnModule).
VGA Interface

VIA CN700 integrated UniChrome pro 2D/3D Graphics controller and max 64 MB of video memory shared with system memory
LVDS interface VIA VT1636 LVDS transmitter, 18/24-bit Dual channel LVDS
Serial ATA interface 2 x Serial ATA interfaces , RAID 0 / 1 support
LAN Interface

4 x Realtek RTL8110S-32 Gigabit Ethernet controller
Audio VIA VT8237R+ integrated with Realtek ALC655 5.1 CH AC97
GPIO Onboard programmable 8-bit Digital I/O interface
Internal I/O Ports 1 x PS2, 1 x RS232/422/485, 2 x RS232, 1 x Audio, 1 x LPT, 1 x LVDS, 4 x LAN LED pin-header, 4 x USB, 1 x silm-FDD
External I/O Ports

1 x RS232, 1 x VGA, 4 x RJ45, 2 x USB2.0, 1 x 2-pin power jack
Solid State Disk

Onboard CompactFlash socket support CFC (Compact Flash Card)
Expansible Interface

One PCI expansive slot supports up to 2 PCI add-on cards via an additional riser card and one Mini-PCI socket ( the second PCI Bus master of PCI slot is shared with Mini-PCI )

Environment Power

Requirement: +12V P4 4-pin power connector or

+12V DC jack input connector
Operation Temperature 0 ~ 60 °C(32 ~ 140°F)
Board Dimension (L x W ) 146 x 203 mm or 8.00 x 5.75.





Download datasheet @ PDF format

BackToTop



  Ordering Guide
　
LE-565-P Onboard VIA V4 Eden 1GHz processor with VGA, Audio, 4 x Gigabit LAN, USB 2.0, 4 x COM, FDD, LPT, LVDS, Mini-PCI & CF socket, SATA
LE-565E5-P Same as LE-565-P, but change CPU to Eden ULV 500 MHz
LE-565-256 Same as LE-565-P , and with onboard DDR 256MB memory.
LE-565E5-256 Same as LE-565-256, but change CPU to Eden ULV 500 MHz
CMB-565 Barebone system for LE-565 series board w/ 12V/80W adapter
SPD-080-12 AC/DC Adapter with 12V , 80W DC jack
