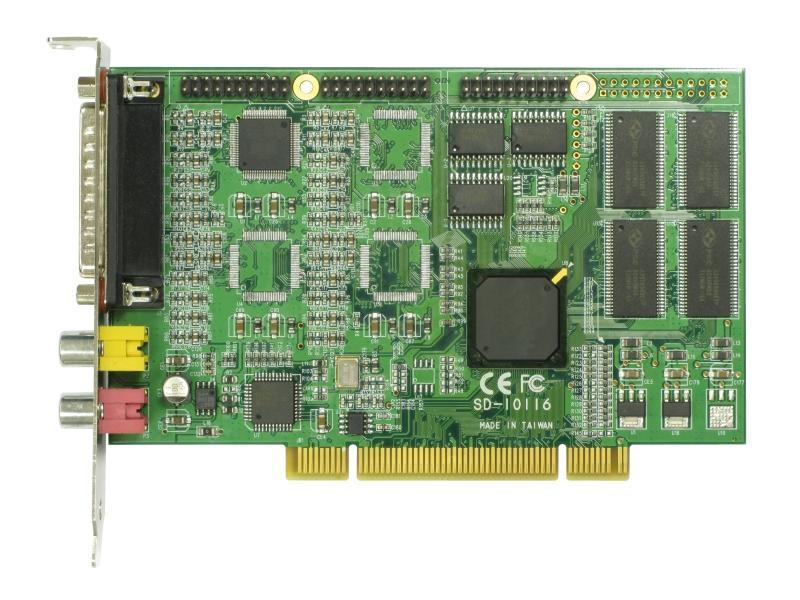

SP-601H2 / SP-601Q2
H.264 Hardware Compression Card with 16 ports Video & Audio inputs

 Features
 - PCI interface

- H.264 Hardware Compression

- 16-ch Video & Audio inputs

- Support D1 , 2 CIF , CIF

- SCode DVR program (Optional)

- Windows / Linux SDK & Driver

Specifications

Model Name

SP-601H2 / SP-601H2A

SP-601Q2 / SP-601Q2A

Form Factor

PCI Interface

Compression Format

H.264 & MJPEG Hardware Compression

(Support Multi-stream : H.264 x 2+ MJPEG x 1)

Video Input

16-channel

4-channel

Video Output

1 x Composite

Display Rate

480 / 400 fps (NTSC / PAL)

120 / 100 fps (NTSC / PAL)

Recording Rate

16-ch : Total 480 fps (NTSC) / 400 fps (PAL) @ CIF resolution

16-ch : Total 180 fps (NTSC) / 150 fps (PAL) @ D1 resolution

4-ch : Total 480 fps (NTSC) / 400 fps (PAL) @ CIF resolution

4-ch : Total 120 fps (NTSC) / 100 fps (PAL) @ D1 resolution

Audio Input

16-channel

4-channel

Audio Output

1 x Composite

Internal I/O

1 x 16-Channel Sensor input,

1 x 4-Channel Alarm output,

1 x 16-Channel Audio input

1 x 16-Channel Sensor input,

1 x 4-Channel Alarm output,

1 x 4-Channel Audio input

External I/O

1 x D-Sub25 Video input,

1 x RCA Video output,

1 x RCA Audio output

OS Support

Windows XP, Linux

SDK

Windows SDK, Linux SDK

Dimensions

146mm x 95mm

Manual / Driver

User's manual  / Datasheet /  Driver



Minimum System Requirements / Driver & Software

 OS Support  Windows XP (SCode or SDK), Linux (Driver & SDK)
 CPU  Pentium 4 / 2.66 GHz or above ( w/o Hyper-threading )
 RAM  DDR 512 MB or above
 HDD  250 GB or above
 DirectX  9.0 or above
 VGA  ATI Radeon 9200 or above

Note: SP-601H2/Q2 series aren't compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system.

SP-601H2 / SP-601H2A Accessories

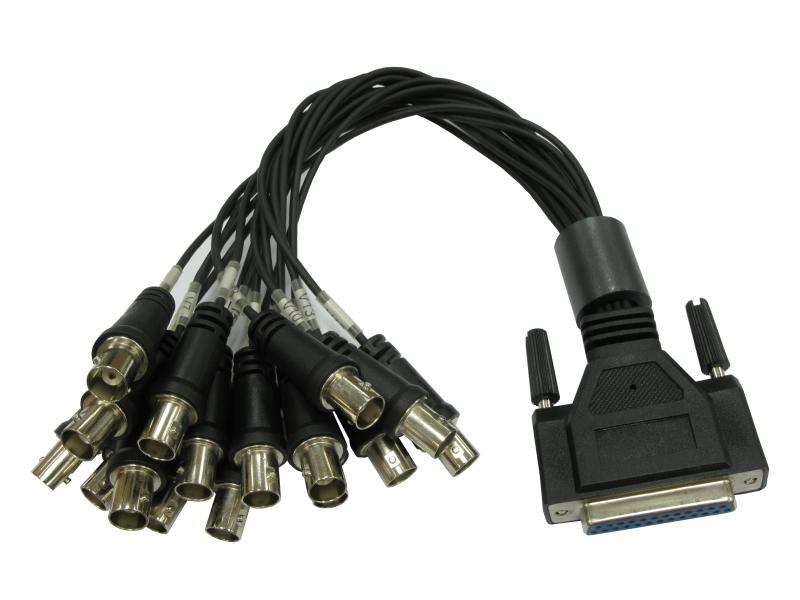

                  16-ch BNC video cable                                              16-ch RCA audio cable kit ( Optional )



SP-601Q2 / SP-601Q2A Accessories

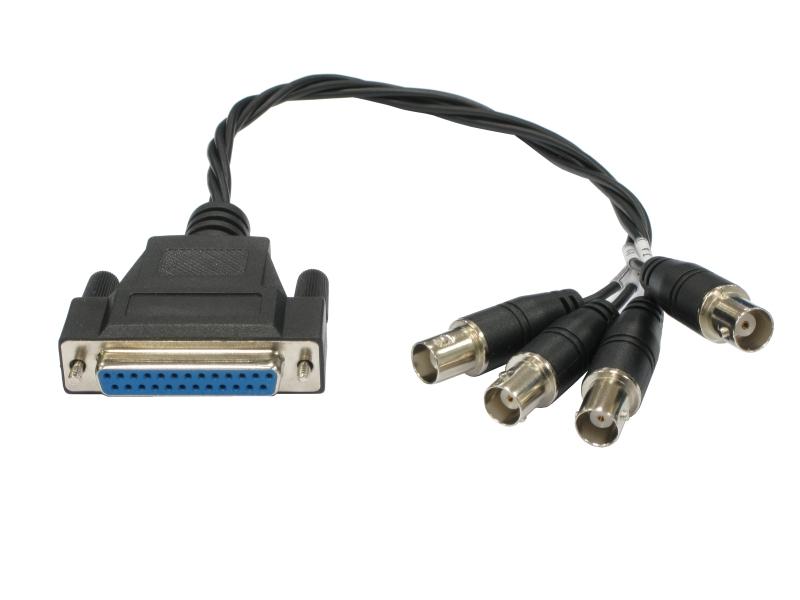

                  4-ch BNC video cable                                              4-ch RCA audio cable kit ( Optional )



Ordering Code

SP-601H2

16 channel DVR card with SDK

SP-601H2A

16 channel DVR card with SCode DVR software and Free remote software

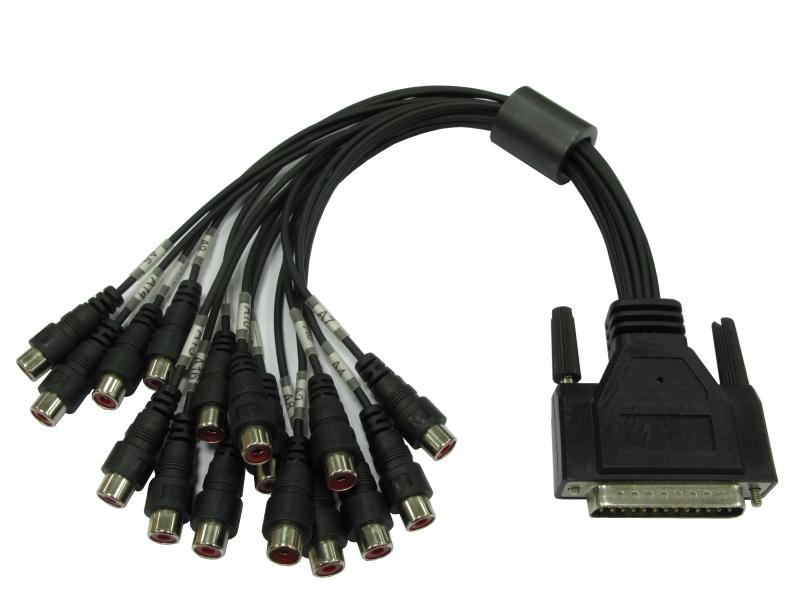

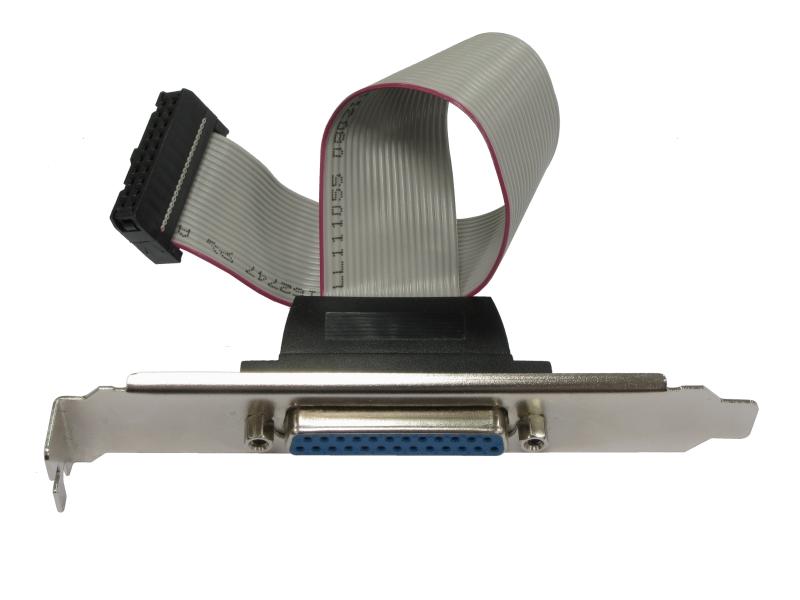

OALDB25-AUD16 & OAL1P-601H

16 channel RCA audio Cable kit for SP-601H2 / SP-601H2A

SP-601Q2

4 channel DVR card with SDK

SP-601Q2A

4 channel DVR card with SCode DVR software and Free remote software

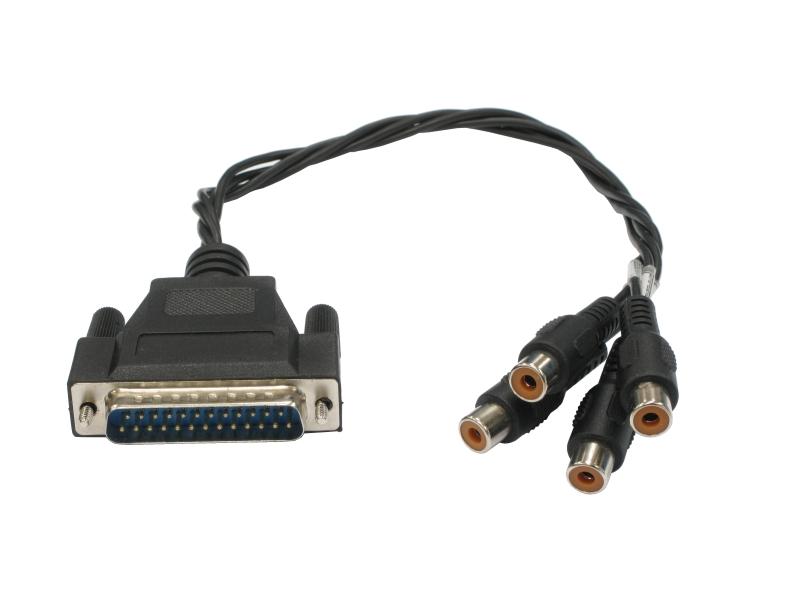

OALDB25-AUD4 & OAL1P-601H

4 channel RCA audio Cable kit for SP-601Q2 / SP-601Q2A



CMS Software

Free remote software

Server software , simple client software , IE viewer

CMS Economic Version

64-channel software , see 4 DVRs simultaneously

CMS Profession Version

Full Economic functions, Group link function, eMAP ....
